Kingston Technology KSM56T46BS8KM-16HA memory module 16 GB 1 x 16 GB…

Name: KINGSTON 16GB DDR5-5600MT/s ECC CL46 SODIMM 1Rx8
Brand: KINGSTON
SKU: 5862512
Price: 1067.19 NZD
Availability: BackOrder

Kingston Technology KSM56T46BS8KM-16HA, 16 GB, 1 x 16 GB, DDR5, 262-pin SO-DIMM, Black, Green

Click or hover over image to enlarge

Brand:KINGSTON

MPN:5862512

Part #: 5862512

Search this part on Google

On-Die ECC

Yes

CAS latency

Internal memory

16 GB

Memory layout (modules x size)

1 x 16 GB

Internal memory type

DDR5

Memory data transfer rate

5600 MT/s

Component for

Server

Memory form factor

262-pin SO-DIMM

Returns & Warranty

Comsys Price

$1,067.19

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days

100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare

We accept

Four payments of $266.80 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

KINGSTON 16GB DDR5-5600MT/s ECC CL46 SODIMM 1Rx8

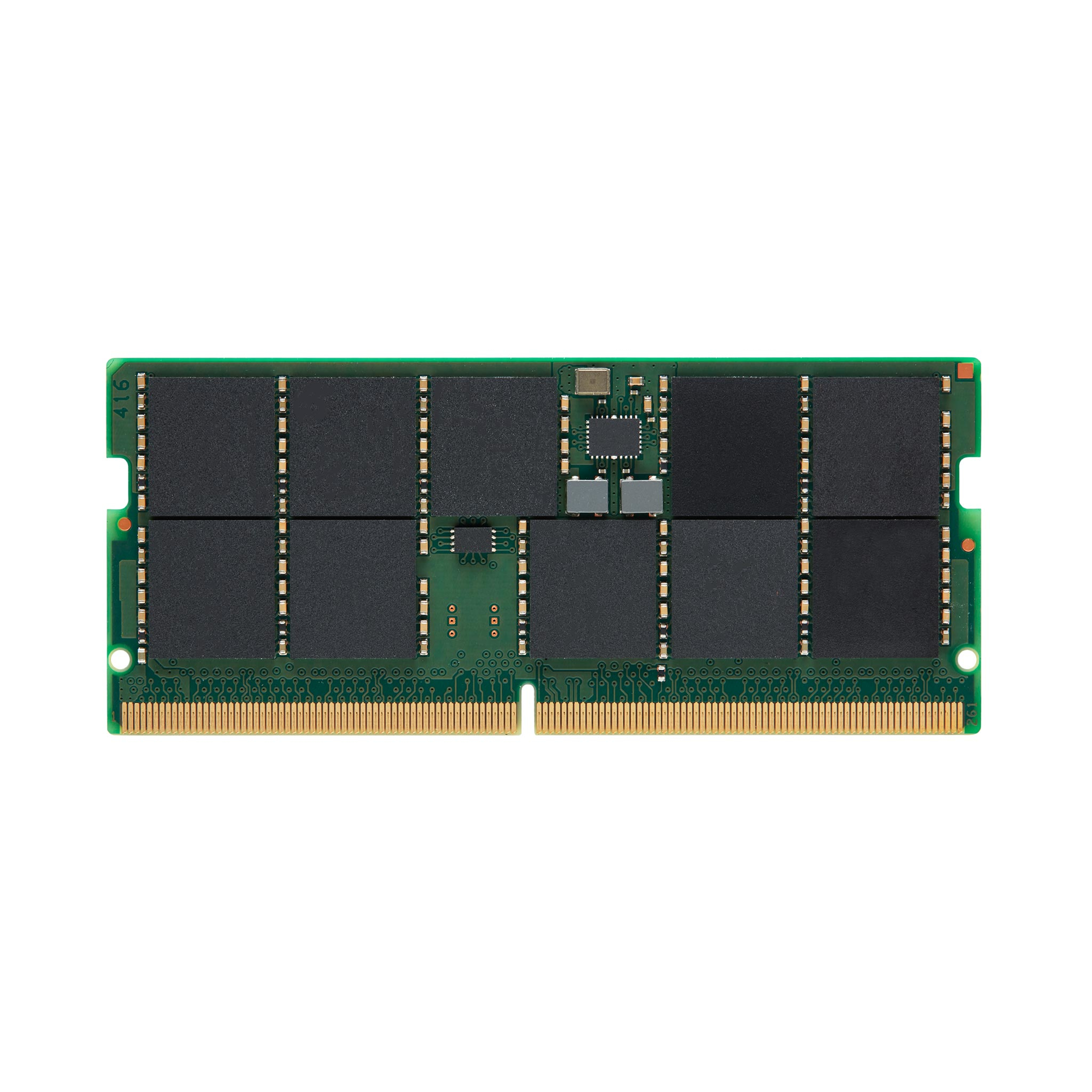

Kingston's KSM56T46BS8KM-16HA is a 2G x 72-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM) w/ parity, 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM
uses gold contact fingers.

Key features

On-Die ECC: Yes
CAS latency: 46
Internal memory: 16 GB
Memory layout (modules x size): 1 x 16 GB
Internal memory type: DDR5
Memory data transfer rate: 5600 MT/s
Component for: Server
Memory form factor: 262-pin SO-DIMM
ECC: Yes
Buffered memory type: Unregistered (unbuffered)
Memory ranking: 1
Memory voltage: 1.1 V
Module configuration: 2048M x 72
Row cycle time: 48 ns
Refresh row cycle time: 295 ns
Row active time: 32 ns
Row Precharge Time (TRP): 16
SPD profile: Yes
Programming power voltage (VPP): 1.8 V
Product colour: Black, Green
Lead plating: Gold
JEDEC standard: Yes
Operating temperature (T-T): 0 - 95 °C
Storage temperature (T-T): -55 - 100 °C
Sustainability compliance: Yes
Compliance certificates: RoHS
Width: 69.6 mm
Depth: 3.7 mm
Height: 31.2 mm
Doesn't contain: Halogen
