KINGSTON 32GB 3200MT/s DDR4 ECC CL22 DIMM 2Rx8 Hy

32GB 3200MT/s DDR4 ECC CL22 DIMM 2Rx8 Hynix D

  • Brand: KINGSTON
  • Category: RAM
  • SKU: 6509188
  • MPN: KSM32ED8/32HD

Kingston Technology KSM32ED8/32HD memory module 32 GB 1 x 32 GB DDR4…

Kingston Technology KSM32ED8/32HD, 32 GB, 1 x 32 GB, DDR4, 288-pin DIMM

KINGSTON 32GB 3200MT/s DDR4 ECC CL22 DIMM 2Rx8 Hy

Click or hover over image to enlarge

Brand:KINGSTON
MPN:6509188

Part #: 6509188

Search this part on Google

CAS latency

22

Internal memory

32 GB

Memory layout (modules x size)

1 x 32 GB

Internal memory type

DDR4

Memory data transfer rate

3200 MT/s

Component for

Server

Memory form factor

288-pin DIMM

ECC

Yes

Returns & Warranty

Comsys Price

$1,339.74

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $334.94 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

KINGSTON 32GB 3200MT/s DDR4 ECC CL22 DIMM 2Rx8 Hy

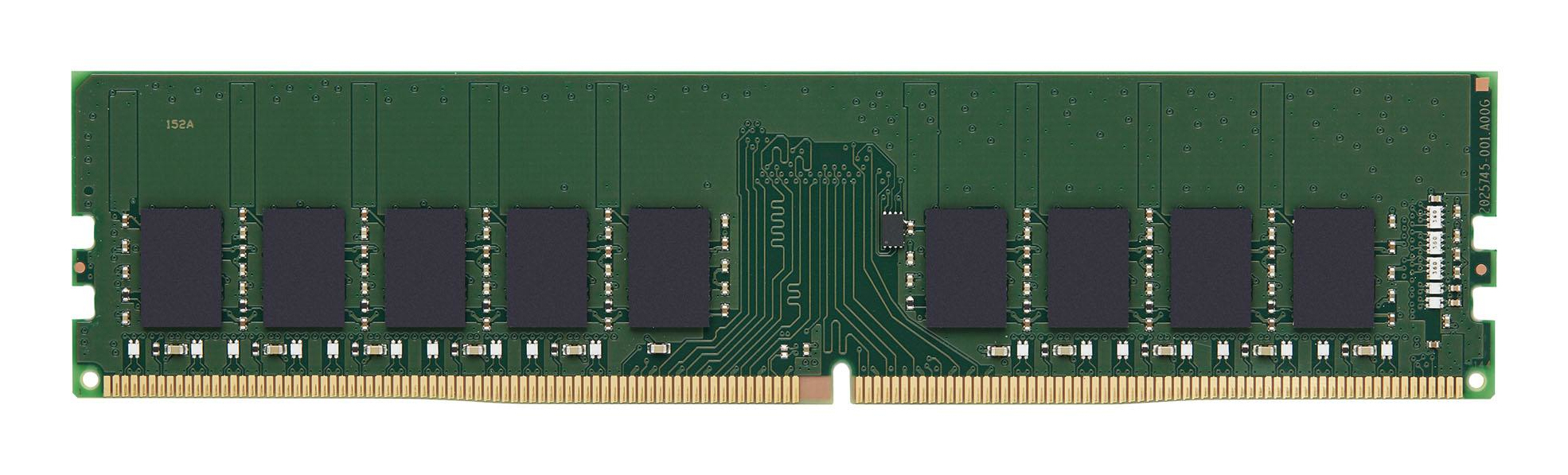

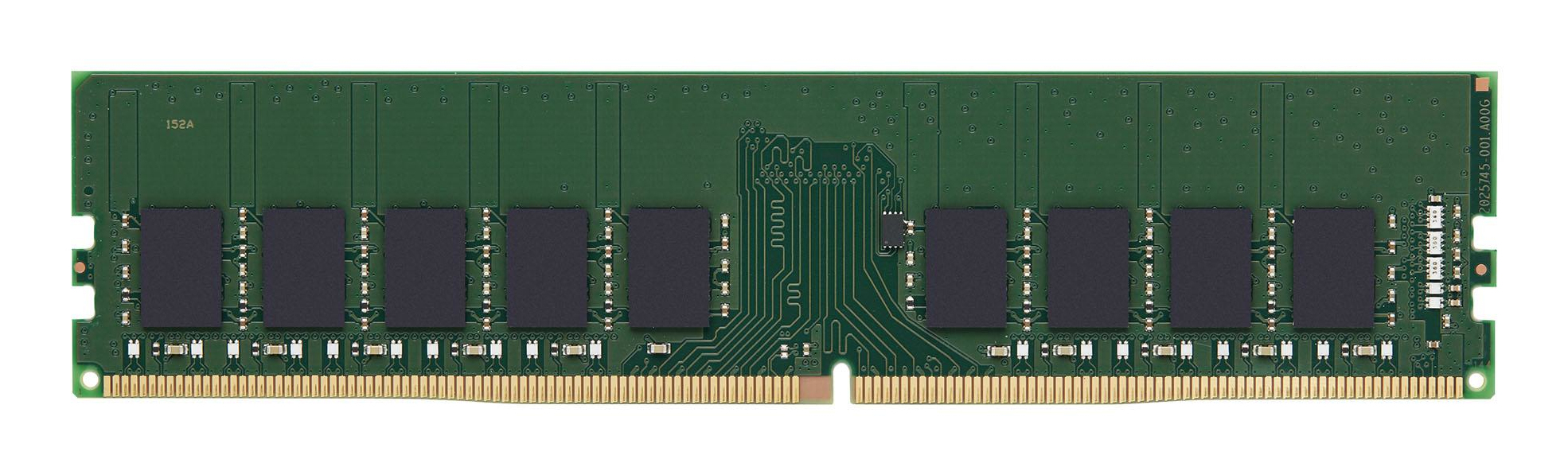

Kingston's KSM32ED8/32HD is a 2G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Key features

  • CAS latency: 22
  • Internal memory: 32 GB
  • Memory layout (modules x size): 1 x 32 GB
  • Internal memory type: DDR4
  • Memory data transfer rate: 3200 MT/s
  • Component for: Server
  • Memory form factor: 288-pin DIMM
  • ECC: Yes
  • Memory channels: Dual-channel
  • Buffered memory type: Unregistered (unbuffered)
  • Memory ranking: 2
  • Memory voltage: 1.2 V
  • Module configuration: 2048M x 72
  • Row cycle time: 45.75 ns
  • Row active time: 32 ns
  • SPD profile: Yes
  • Programming power voltage (VPP): 2.5 V
  • JEDEC standard: Yes
  • Operating temperature (T-T): 0 - 85 °C
  • Storage temperature (T-T): -55 - 100 °C
  • Compliance certificates: RoHS
  • Width: 133.3 mm
  • Height: 31.2 mm
