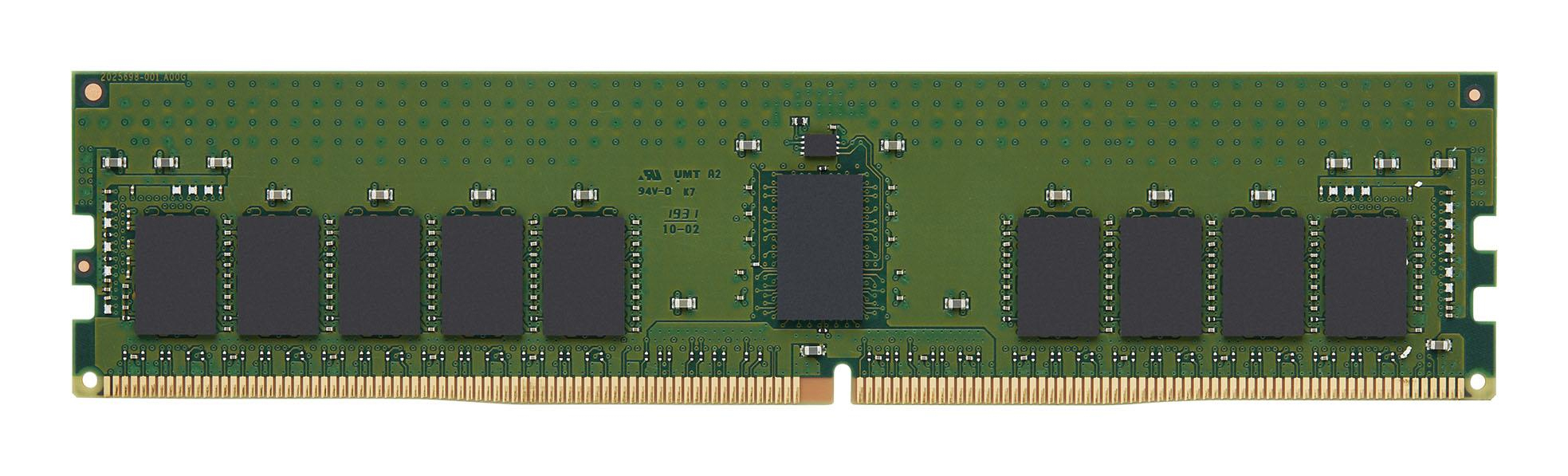

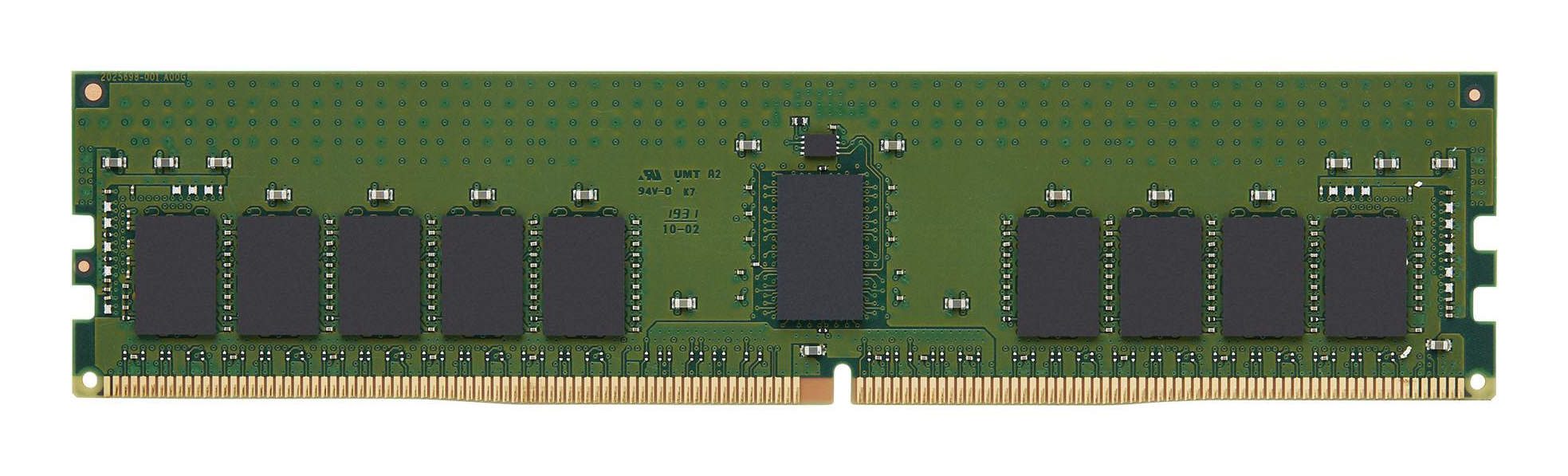

KINGSTON 32GB 3200MT/s DDR4 ECC Reg CL22 DIMM 2Rx
32GB 3200MT/s DDR4 ECC Reg CL22 DIMM 2Rx8 Hynix D
- Brand: KINGSTON
- Category: RAM
- SKU: 6509190
- MPN: KSM32RD8/32HD
Kingston Technology KSM32RD8/32HD memory module 32 GB 1 x 32 GB DDR4…
Kingston Technology KSM32RD8/32HD, 32 GB, 1 x 32 GB, DDR4, 288-pin DIMM
Click or hover over image to enlarge
CAS latency
22
Internal memory
32 GB
Memory layout (modules x size)
1 x 32 GB
Internal memory type
DDR4
Memory data transfer rate
3200 MT/s
Component for
Server
Memory form factor
288-pin DIMM
ECC
Yes
Comsys Price
Available to Order
Ships in 1–5 business days
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $338.10 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
KINGSTON 32GB 3200MT/s DDR4 ECC Reg CL22 DIMM 2Rx
parity, 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Key features
- CAS latency: 22
- Internal memory: 32 GB
- Memory layout (modules x size): 1 x 32 GB
- Internal memory type: DDR4
- Memory data transfer rate: 3200 MT/s
- Component for: Server
- Memory form factor: 288-pin DIMM
- ECC: Yes
- Buffered memory type: Registered (buffered)
- Memory ranking: 2
- Memory voltage: 1.2 V
- Module configuration: 4096M x 72
- Row cycle time: 45.75 ns
- Row active time: 32 ns
- SPD profile: Yes
- Programming power voltage (VPP): 2.5 V
- JEDEC standard: Yes
- Operating temperature (T-T): 0 - 85 °C
- Storage temperature (T-T): -55 - 100 °C
- Compliance certificates: RoHS
- Width: 133.3 mm
- Height: 31.2 mm
Inc GST
$1,352.39
