KINGSTON 96GB DDR5-5600MT/s ECC Reg CL46 DIMM 2Rx

96GB DDR5-5600MT/s ECC Reg CL46 DIMM 2Rx4 Micron B Renesas

  • Brand: KINGSTON
  • Category: RAM
  • SKU: 6074092
  • MPN: KSM56R46BD4PMI-96MBI

Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96…

Kingston Technology KSM56R46BD4PMI-96MBI, 96 GB, 1 x 96 GB, DDR5, 288-pin DIMM

KINGSTON 96GB DDR5-5600MT/s ECC Reg CL46 DIMM 2Rx

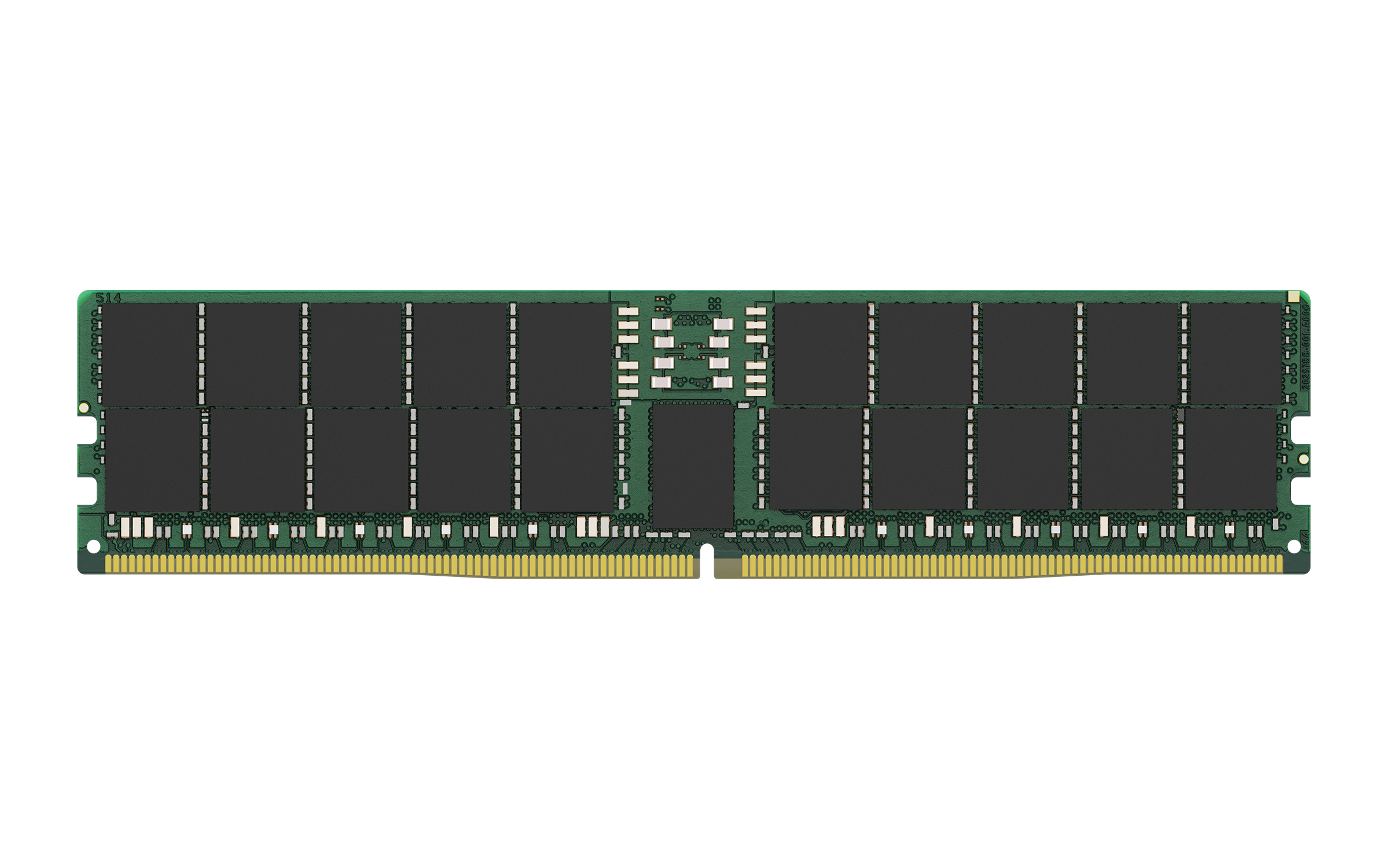

Click or hover over image to enlarge

Brand:KINGSTON
MPN:6074092

Part #: 6074092

Search this part on Google

On-Die ECC

Yes

CAS latency

46

Internal memory

96 GB

Memory layout (modules x size)

1 x 96 GB

Internal memory type

DDR5

Memory data transfer rate

5600 MT/s

Component for

PC/Server

Memory form factor

288-pin DIMM

Returns & Warranty

Comsys Price

$6,750.49

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

KINGSTON 96GB DDR5-5600MT/s ECC Reg CL46 DIMM 2Rx

Kingston's KSM56R46BD4PMI-96MBI is a 12G x 80-bit (96GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Key features

  • On-Die ECC: Yes
  • CAS latency: 46
  • Internal memory: 96 GB
  • Memory layout (modules x size): 1 x 96 GB
  • Internal memory type: DDR5
  • Memory data transfer rate: 5600 MT/s
  • Component for: PC/Server
  • Memory form factor: 288-pin DIMM
  • ECC: Yes
  • Buffered memory type: Registered (buffered)
  • Memory ranking: 2
  • Memory voltage: 1.1 V
  • Module configuration: 12288M x 80
  • Row cycle time: 48 ns
  • Refresh row cycle time: 295 ns
  • Row active time: 32 ns
  • SPD profile: Yes
  • Programming power voltage (VPP): 1.8 V
  • Lead plating: Gold
  • Backlight: No
  • JEDEC standard: Yes
  • Operating temperature (T-T): 0 - 95 °C
  • Storage temperature (T-T): -55 - 100 °C
  • Sustainability compliance: Yes
  • Compliance certificates: RoHS
  • Width: 133.3 mm
  • Height: 31.2 mm
  • Doesn't contain: Halogen
