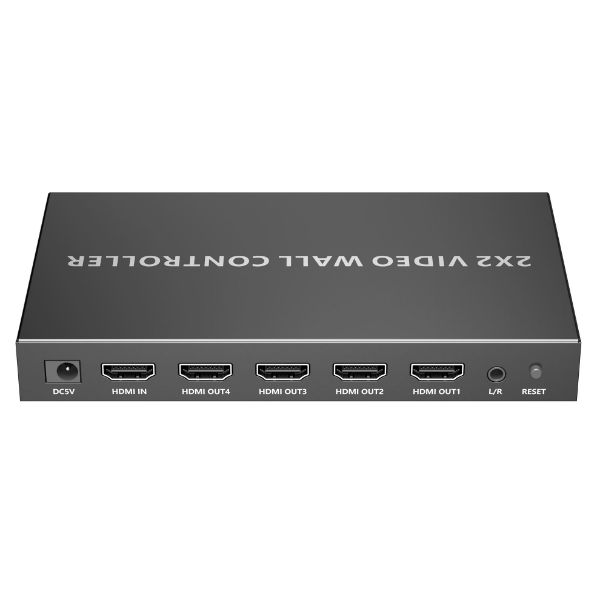

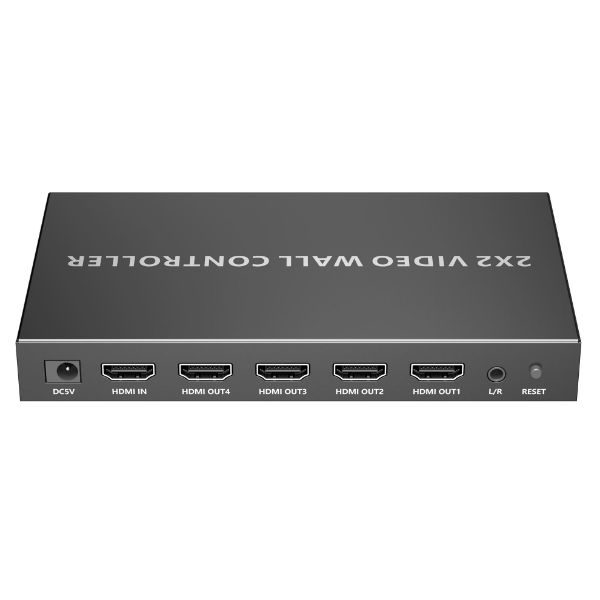

LENKENG 2x2 HDMI Videowall Controller with 1x HDMI In & 4x
2x2 HDMI Videowall Controller w/ 1x HDMI In & 4x HDMI Out. 1920x1200@60Hz Res
- Brand: lenkeng
- Category: HDMI / Display Cables
- SKU: LKV104VW
- MPN: LKV104VW
LENKENG 2x2 HDMI Videowall Controller with 1x HDMI In & 4x
2x2 Video Wall Controller 1080P@60Hz This product is a 1-in-4-out video wall controller, supports one HDMI™I source input and four HDMI™ outputs.
Click or hover over image to enlarge
Comsys Price
Save $146.93 off RRP
Only 1 left in stock
Order soon to avoid backorder
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $76.76 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
LENKENG 2x2 HDMI Videowall Controller with 1x HDMI In & 4x
2x2 Video Wall Controller 1080P@60Hz
This product is a 1-in-4-out video wall controller, supports one HDMI™I source input and four HDMI™ outputs. Supports 1x1/1x2/1x3/1x4/2x2 splicing modes, which can be set by RS-232 or dip switch. The product can flexibly adapt to different installation requirements, which can be widely used in security monitoring, rail transit, broadcasting, smart cities, home theatre, training and other fields.
Features:
-
Multiple Display Configurations: Supports various splicing modes, including 1x1, 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, and 4x1, providing flexibility to adapt to different installation requirements.
-
High-Definition Support: Handles resolutions up to 1080p at 60Hz, ensuring clear and detailed video output.
-
User-Friendly Control: Allows mode settings via RS-232 commands or DIP switches, offering convenient control options.
-
Comprehensive Connectivity: Features one HDMI™ input and four HDMI™ outputs, facilitating seamless integration with various devices.
-
Audio Output: Provides 3.5mm and HDMI™ audio outputs, supporting PCM audio format for quality sound reproduction.
-
Robust Design: Housed in a durable iron casing, the device operates efficiently within a temperature range of -20°C to 60°C.
Specifications:
-
Input: 1x HDMI™
-
Outputs: 4x HDMI™
-
Supported Resolutions: 1080p@60/50/30/25/24Hz, 720p@60/50Hz, 576p@50Hz, 480p@60Hz, and various PC resolutions up to 1920x1200@60Hz
-
Control Methods: DIP Switch, RS-232 (default baud rate: 9600)
-
Power Supply: DC 5V/1A
-
Power Consumption: <4W
-
Dimensions: 160(L) x 90(W) x 20.6(H) mm
-
Weight: 381g
Inc GST
$307.04
