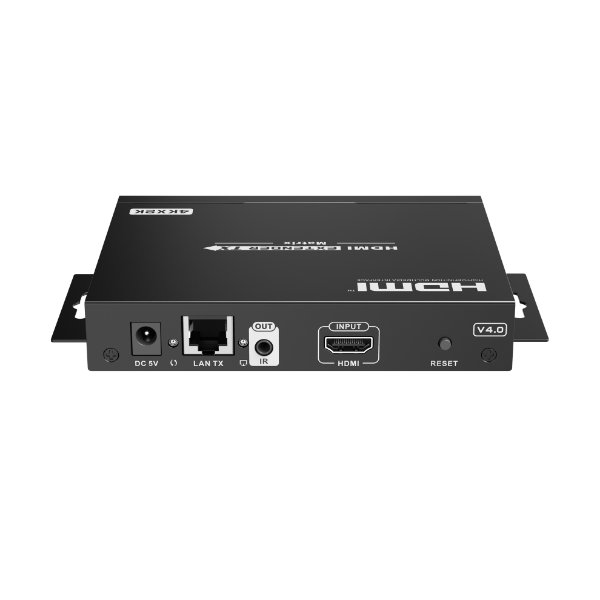

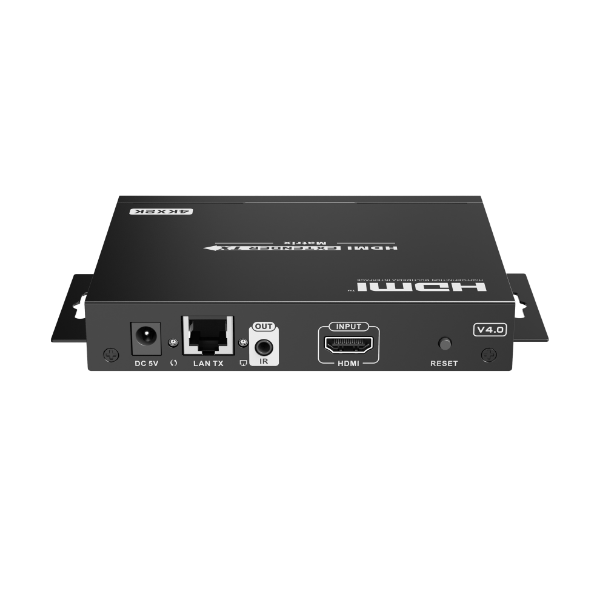

LENKENG HDbitT HDMI Video Matrix Transmitter Unit Over IP CAT5/5e/6
HDbitT HDMI Video Matrix Transmitter Unit CAT5/5e/6 Network Cable. up to 120m
- Brand: Lenkeng
- Category: HDMI / Display Cables
- SKU: LKV686MATRIX-TX
- MPN: LKV686MATRIX-TX
LENKENG HDbitT HDMI Video Matrix Transmitter Unit Over IP CAT5/5e/6
This HDbitT HDMI video matrix over IP includes a transmitter unit(TX) Only.
Click or hover over image to enlarge
Housing
Metal enclosure
Part No.
LKV683Matrix
Fixedness
wall-mounting kits with screws
IR passback
yes
Power supply
5V2A
Audio support
PCM
HDMI conector
Type A 19 Pins,Female
Video support
480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz、4K×2K@24/25/30HZ
Comsys Price
Save $130.86 off RRP
In Stock
18 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $68.42 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
LENKENG HDbitT HDMI Video Matrix Transmitter Unit Over IP CAT5/5e/6
This HDbitT HDMI video matrix over IP includes a transmitter unit(TX) Only. It allows for the distribution and switching of high definition video/audio signal by this product and off-the-shelf IGMP switch. It applied advanced HDbitT technology, the resolution supported is up to 4Kx2K@30Hz ultra HD. It can also be used in a point-to-point connection, the distance is up to 120 metres. It is widely applied in digital signage advertisements, control rooms, command centres, entertainment and exhibition centre, safety monitoring system, etc.
- Apply advanced over IP Technology
- Resolution Supported is up to 4K x 2K 30Hz Ultra HD
- Transmission distance is up to 120 metres via CAT6
- Support IR Passback function to control source device from RX Location.
- Plug and Play.
- Support Scalable and flexible input-output matrix configuration allows 100 inputs to infinite output.
- support computer control software to select and switch source device input.
- Support to select and switch source device input from the receiver via remote control and hard button.
- Surge protection, Lighting Protection, ESD Protection.
Inc GST
$273.69
