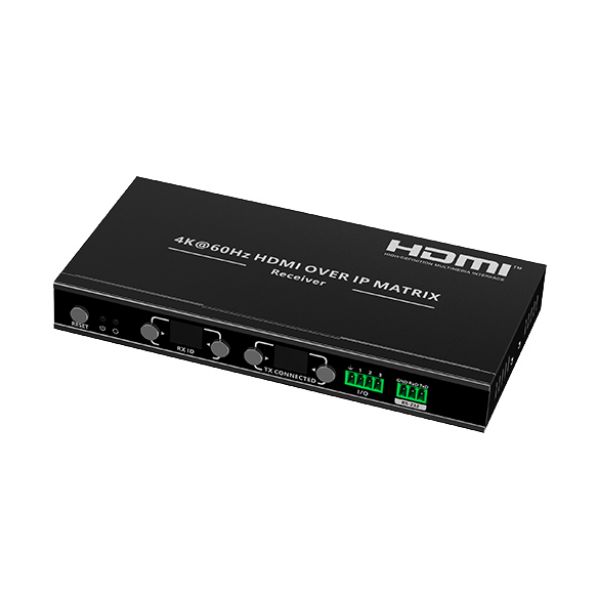

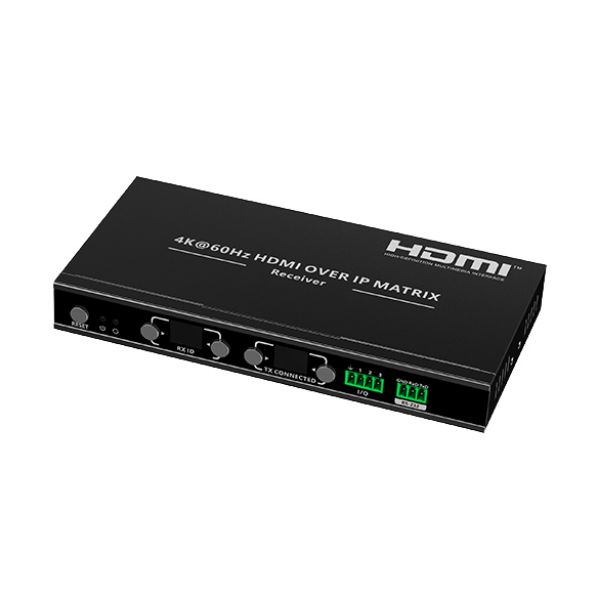

Lenkeng Hdmi Extender Over IP (Matrix) Supports [email protected] With Cat5e/6. Up To 120M (RX)

HDMI extender over IP (Matrix) supports [email protected] with Cat5e/6. Up to 120M (RX)

This 4K@60Hz HDMI over IP matrix receiver enables switching, extension, & distribution of 4K@60Hz audio & video signals via an IGMP switch. Built on ipcolor STREAM technology, it delivers high-definition, low-latency transmission. The system supports up to 256 signal sources & allows switching between up to 256 receiving terminals. HDMI signals can be extended up to 120m over CAT6 or higher network cables, supporting both one-to-one & many-to-many configurations. Equipped with HDMI loop-out, bi-directional IR passback, RS-232 command control, I/O, & PoE support, this solution is ideal for use in audiovisual conferencing, transportation control centers, broadcasting, education, training, & other professional environments.



Features:

• Built on IPcolor STREAM technology to deliver high-definition & low-latency transmission.
• Supports up to 3840x2160@60Hz resolution
• Compatible with Cat6 or higher networking cables, up to 120m.
• Supports one-to-one or many-to-many connections through the gigabit switch.
• Supports RS-232 passthrough & control.
• The transmitter supports HDMI loop-out.
• Supports bi-directional IR pass-back (20-60 KHz); IR learning remote & control device by APP.
• Supports I/O interface control.
• Supports PoE (Power over Ethernet).
• Creating multi-screen splicing with up to 5x5 video wall through the switch & controlled by APP.
• Supports 256 signal source inputs & 256 signal outputs, providing a flexible many-to-many matrix configuration (requires APP control operation while connecting more than 100 TX-to-RXs).
• Firmware upgrading via the Micro USB port.
• Lightning, surge & ESD protection.
• Stable 24/7 operation.
