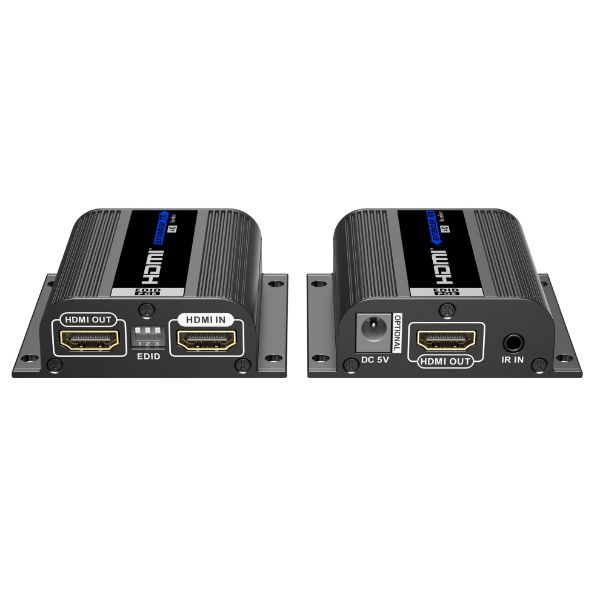

Lenkeng HDMI & IR Extender Kit Over Cat6 W/ EDID Switch. Loop Out Connection Port On Transmitter

The HDMI Extender comprises a transmitter unit & a receiver unit, enabling the transmission of HDMI signals up to 70m with a 1080p resolution using a Cat6/6A/7 network cable. It follows a point-to-point connection setup & offers support for features such as Power over Cable (PoC) to power the receiver, IR pass-through, & EDID switching. This extender is ideal for various applications, including outdoor advertising, monitor systems, home entertainment, conferences, & more.

Features:

• Zero latency
• Support up to 4K@30Hz resolution
• Support CAT6/6A/7 network cables, 1080p@60Hz transmission distance is up to 70m, 4K@30Hz transmission distance is up to 40m
• Support IR pass-back function (20~60KHz)
• Support HDR10
• Support EDID switch for setting a very needed HDMI signal format
• Support PoC to power the receiver from the transmitter
• Automatically adjusts parameters to match different network cables & achieve the best display performance
• Plug & play

Power over Cable

Power over cable allows the operation of the system only by a single power source for TX and powered the RX by TX from a long distance, which is great for extending to areas when power outlets may be limited.

EDID Management

Integrated EDID DIP Switch for management of communication between connected devices and transmission over different cable distances, manual adjustments and further fine-tuned EDID settings to help perfect compatibility between devices.
