LENKENG HDMI & IR Extender Kit Over Cat6/6A. 1080p up to 70m.
HDMI & IR Extender Kit Over Cat6/6A 1080p up to 70m Supports EDID & IR Passback.
- Brand: Lenkeng
- Category: HDMI / Display Cables
- SKU: LKV372P
- MPN: LKV372P
LENKENG HDMI & IR Extender Kit Over Cat6/6A. 1080p up to 70m.

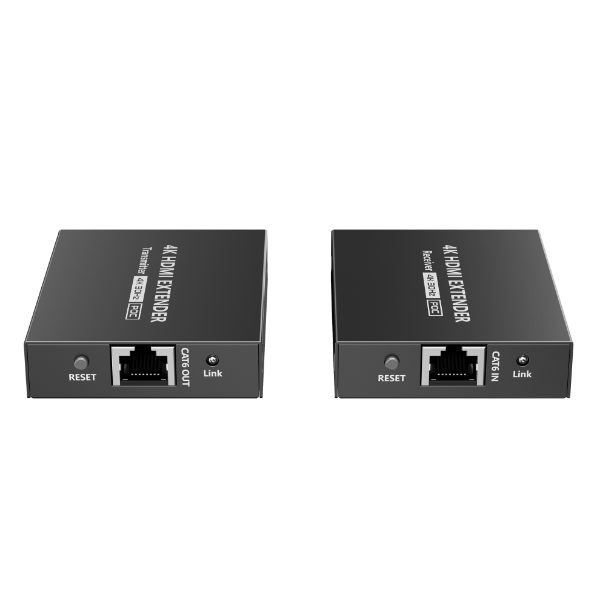

This HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable.
Click or hover over image to enlarge
Body Properties - Weight
TX:127g
Body Properties - Dimension
75.0(L) x 60.0(W) x 16.5(H) mm
Power Supply - Voltage/Current
DC 5V/2A
Power Supply - Power consumption
TX+RX
Transmission Distance - Cat6/6A/7
1080p@60Hz transmission 70 metres 4K@30Hz transmission 40 metres 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV)
HDMI Performance and Interface - HDR
Support
Operating Environment - Storage temperature
-30°C~70°C
Operating Environment - Working temperature
-20°C~60°C
Comsys Price
Save $55.13 off RRP
In Stock
30 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $28.46 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
LENKENG HDMI & IR Extender Kit Over Cat6/6A. 1080p up to 70m.
This HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports IR pass-back. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc.
Features:
- Zero latency
- Support up to 4K@30Hz resolution
- Support CAT6/6A/7 network cables, 1080p@60Hz transmission distance is up to 70meters, 4K@30Hz transmission distance is up to 40 meters
- Support IR pass-back function (20KHz~60KHz)
- Support HDR10
- Support EDID passthrough
- Support PoC network cable power supply, only TX power supply is needed
Inc GST
$113.84
