LENKENG HDMI & IR Extender Kit over Cat6/6a/7 up to 4K@30Hz. Zero
HDMI & IR Extender Kit over Cat6/6a/7 up to 4K@30Hz. Zero Latency Send Signal up to 70m
- Brand: Lenkeng
- Category: HDMI / Display Cables
- SKU: LKV223P
- MPN: LKV223P
LENKENG HDMI & IR Extender Kit over Cat6/6a/7 up to 4K@30Hz. Zero

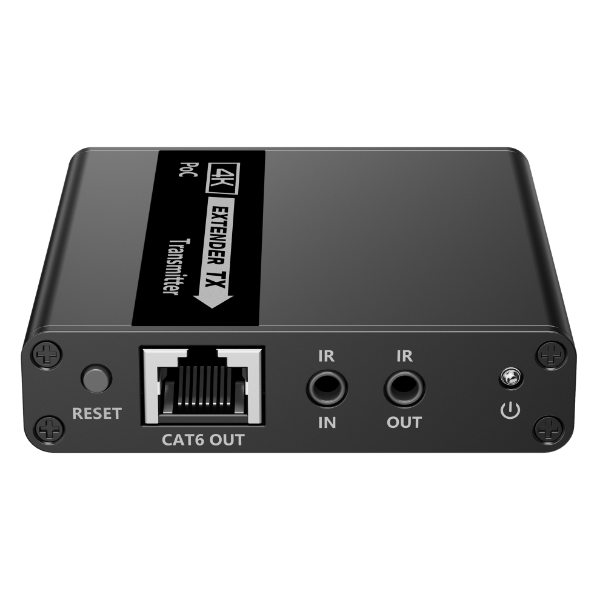

HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70m using a CAT6/6A/7 network cable. It adopts a point-to-point connection con?guration.
Click or hover over image to enlarge
Housing
Aluminium alloy material+crystal panel
EDID through
Support
Power supply
5V/2A
Audio support
PCM/LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 5.1CH
HDMI Loop-out
Support
Video support
800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 4K@24/25/30Hz
HDMI connector
Type A 19 Pins, Female
HDCP compliance
HDCP1.4
Comsys Price
Save $64.64 off RRP
In Stock
20 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $33.92 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
LENKENG HDMI & IR Extender Kit over Cat6/6a/7 up to 4K@30Hz. Zero
HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70m using a CAT6/6A/7 network cable. It adopts a point-to-point connection con?guration. Supports bi-directional IR pass-back and 3.5 mm stereo audio output.
Features:
- Zero latency
- Support up to 4K@30Hz resolution
- Supports CAT6/6A/7 network cables, 1080p@60Hz transmission distance is up to 70 meters, 4K@30Hz transmission distance is up to 40 meters
- Support bi-directional IR pass-back function(20~60KHz)
- Support HDR10
- Support EDID passthrough

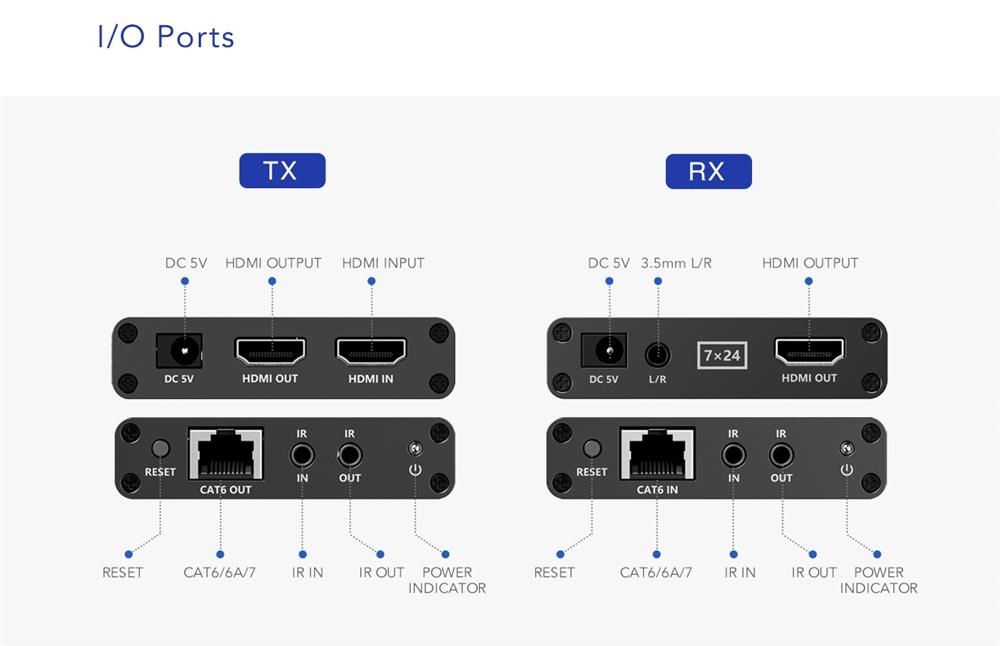

- Transmitter supports HDMI loop-out
- Receiver supports 3.5mm stereo audio output
- Lightning, Surge, and ESD Protection
- Support PoE network cable power supply, TX needs power supply
70m and zero latency transmission
Supports CAT6/6A/7 network cable, the maximum transmission distance can reach 40m for 4K@30Hx signals and 70m for 1080p@60Hz signals.
4K@30Hx HDR for visually lossless transmission
Supports 4K@30Hz HDR, the image can be clearer, higher saturation and show more outstanding details.
Adaptive technology
The product can automatically adjust parameter to match different network cables and achieve the best display performance.
