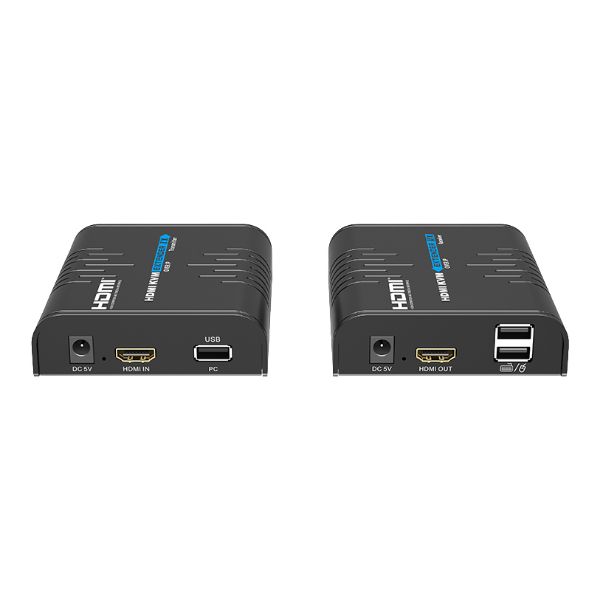

Lenkeng HDMI KVM Extender Over Single Cat5E/6 Up To 120M Multipoint/Point To Point.

HDMI KVM Extender Over Single Cat5E/6 up to 120M Multipoint/Point to Point.

The LENKENG LKV373KVM-M5.0 HDMI KVM extender is an IP-based system built on ipcolor STREAM technology, delivering high-definition, low-latency video & KVM control over standard network cables. Using Cat5e, Cat6, or higher-grade Ethernet cables, it supports distances up to 120m (Cat6) with resolutions up to 1920x1200@60Hz. The system supports one-to-one, one-to-many, many-to-one, & many-to-many connections through a gigabit switch, with up to 256 inputs & 256 outputs, controllable via an APP. It allows KVM signal passback for remote keyboard, mouse, & touch operation, with firmware upgradable via Micro USB. Designed for 24/7 operation, it features ESD, lightning, & surge protection, making it ideal for control rooms, command centres, data centres, government, & enterprise environments where reliability & secure signal distribution are essential.



Features:

• Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
• Supports up to 1920x1200@60Hz resolution, backwards compatible.
• Compatible with Cat5e/6 or higher-level networking cables, the transmission distance of Cat6 cable is 120 meters.
• Supports one-to-one, one-to-many, many-to-one and many-to-many connections through the gigabit switch.
• Supports KVM control signal passback.
• Supports 256 signal source inputs and 256 signal outputs.
• Signal sources can be switched via the APP for a flexible many-to-many matrix configuration.
• Firmware upgrading via the Micro USB port.
• Lightning protection, surge protection, ESD protection.
• Supports stable 24/7 operation.
