LENOVO EMULEX 16GB GEN6 FC DUAL-PORT HBA — LENOVO — Servers

Lenovo 01CV840 network card Internal Fiber 16000 Mbit/s Save $594.01 off RRP

Name: LENOVO EMULEX 16GB GEN6 FC DUAL-PORT HBA
Brand: LENOVO
SKU: 01CV840
Price: 3163.64 NZD
Availability: InStock

Available On OrderAsk us for ETA

$3,163.64

Inclusive of GST

4 payments of $790.91

Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

SKU:: CNZ-DD-000017
MPN:: 01CV840
Brand:: LENOVO

Official NZ Stock

Ask Our Experts:

Ask a question about this item Request a price match

We accept

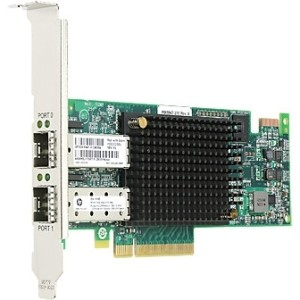

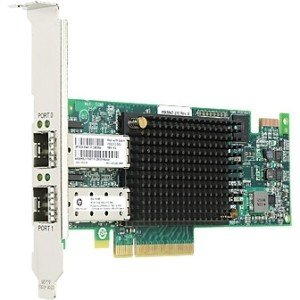

LENOVO EMULEX 16GB GEN6 FC DUAL-PORT HBA

The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.

The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.

Key features

Connectivity technology: Wired
Host interface: PCIe
Interface: Fiber
Fiber ports quantity: 2
Fiber optic connector: FC, SFP+
PCI version: 3.0
Maximum data transfer rate: 16000 Mbit/s
Full duplex: Yes
Web-based management: Yes
Maximum operating distance: 150 m
Component for: Server
Product colour: Black, Green, Silver
Internal: Yes
Rack mounting: Yes
Rack capacity: 2U
Hot-swap: Yes
Hot-Plug support: Yes
LED indicators: Yes
Mean time between failures (MTBF): 10000000 h
Certification: AS/NZS CISPR22:2009+A1, Class A Australian EMC Framework (RCM) cUR recognized to CSA 22.2, No. 60950-1-07 EN55022:2010, Class A EN55024:2010 EN55032:2012 EU (CE Mark) FCC Rules, Part 15, Class A Industry Canada, ICES-003, Class A Japan VCCI, Class A Korea MSIP, Class A RoHS Compliant (Directive 2011/65/EU) TUV certified to EN60950-1+A11+A1+A12+A2 Taiwan BSMI, Class A UL recognized to UL60950-1 2nd Edition
Compatible products: System x3500 M5 Type 5464 System x3550 M5 Type 5463 System x3550 M5 Type 8869 System x3650 M5 Type 5462 System x3650 M5 Type 8871 System x3750 M4 Type 8753 System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4)
Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0
Other operating systems supported: VMware vSphere ESXi
Server operating systems supported: Windows Server 2012, Windows Server 2012 R2
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Depth: 168 mm
Height: 69 mm
Low-profile bracket: Yes
