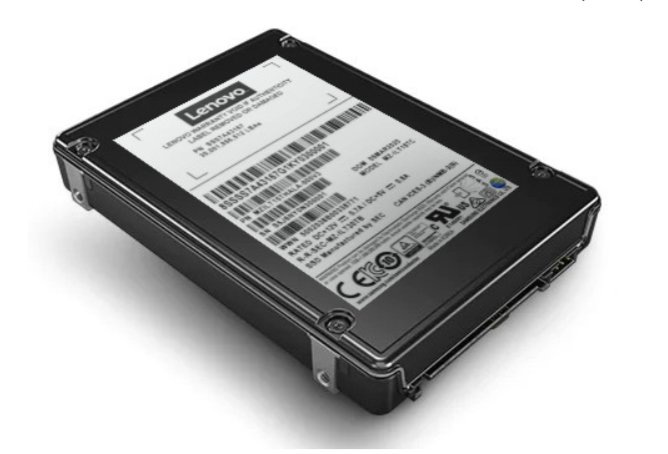

LENOVO THINKSYSTEM 2.5" PM1653 1.92TB READ INTENSIVE SAS 24GB HS SSD

Servers & Storage > Servers

  • Brand: LENOVO
  • Category: Servers
  • SKU: 4XB7A80319
  • MPN: 4XB7A80319
LENOVO THINKSYSTEM 2.5" PM1653 1.92TB READ INTENSIVE SAS 24GB HS SSD — LENOVO — Servers

Lenovo 4XB7A80319 internal solid state drive 1.92 TB 2.5" SAS V-NAND… Save $2,585.01 off RRP

Available On OrderAsk us for ETA
$13,753.99

Inclusive of GST

1
Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

SKU:
CNZ-DD-006376
MPN:
4XB7A80319
Brand:
LENOVO

Ask Our Experts:

Ask a question about this item Request a price match
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
On Sale

Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $2,585.01 off RRP while stocks last.

LENOVO THINKSYSTEM 2.5" PM1653 1.92TB READ INTENSIVE SAS 24GB HS SSD

The ThinkSystem PM1653 Read Intensive SAS 24Gb SSDs, in capacities of up to 30.72 TB, are next-generation high-performance 24Gb SAS self-encrypting SSDs (SEDs) suitable for a wide range of applications of running on ThinkSystem servers.

Unlike 6 Gb/s SATA drives, the 24 Gb/s SAS interface on these drives supports full duplex data transfer for higher performance, and enterprise-level error recovery for better availability. By combining the enhanced reliability of Samsung NAND flash memory silicon with NAND Flash management technologies, PM1653 SSDs deliver endurance of up to 1 drive writes per day (DWPD) for 5 years, which is suitable for many enterprise applications with read-intensive storage characteristics.

Self-encrypting drives (SEDs) provide benefits by encrypting data on-the-fly at the drive level with no performance impact, by providing instant secure erasure thereby making the data no longer readable, and by enabling auto-locking to secure active data if a drive is misplaced or stolen from a system while in use. These features are essential for many businesses, especially those storing customer data.

Key features

  • SSD capacity: 1.92 TB
  • SSD form factor: 2.5"
  • Interface: SAS
  • NVMe: No
  • Memory type: V-NAND TLC
  • Component for: Server/workstation
  • Hardware encryption: Yes
  • Data transfer rate: 24 Gbit/s
  • Random read (4KB): 420000 IOPS
  • Random write (4KB): 95000 IOPS
  • Read latency: 120 µs
  • Write latency: 45 µs
  • S.M.A.R.T. support: Yes
  • Hot-swap: Yes
  • Mean time between failures (MTBF): 2000000 h
  • Certification: UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI
  • Power consumption (read): 11.5 W
  • Power consumption (write): 14.7 W
  • Width: 70 mm
  • Depth: 100 mm
  • Height: 15 mm
  • Weight: 160 g
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Maximum operating altitude: 4572 m
  • Compliance certificates: RoHS
