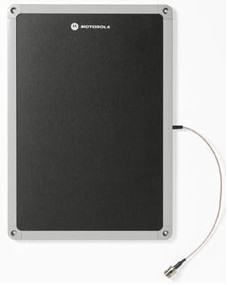

MOTOROLA ANTENNA SLIM RFID
ANTENNA SLIM RFID 15.4X10.8 EU
- Brand: MOTOROLA
- Category: Printers & Office Equipment
- SKU: 2426255
- MPN: AN620-SCL71130EU
Motorola AN620-SCL71130EU network antenna N-type 4 dBi
Motorola AN620-SCL71130EU, 4 dBi, 0.902 - 0.928 GHz, 75°, 48°, N-type, Female
Click or hover over image to enlarge
Antenna connector type
N-type
Connector gender
Female
Polarization
Circular polarization
Voltage Standing Wave Ratio (VSWR)
1.4:1
Product colour
Black, Silver
Mounting
Wall
Purpose
Indoor
Frequency band
0.902 - 0.928 GHz
Comsys Price
Available to Order
Ships in 1–5 business days
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $146.34 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
MOTOROLA ANTENNA SLIM RFID
Suitable for use in Indoor environments: wall mount, doorways, under counter, above counter as an RFID pad, on shelves, on end-cap displays, POS etc.
- Integrated Mounting Holes.
- Comes with mounting hardware for flat panel mounting.
- Comes with 1ft of pigtail cable, compatible to Motorola standard antenna cables for extension.
Key features
- Frequency band: 0.902 - 0.928 GHz
- Horizontal beam width: 75°
- Vertical beam width: 48°
- Antenna gain level (max): 4 dBi
- Antenna connector type: N-type
- Connector gender: Female
- Polarization: Circular polarization
- Voltage Standing Wave Ratio (VSWR): 1.4:1
- Product colour: Black, Silver
- Mounting: Wall
- Purpose: Indoor
- Certification: TBD
- Operating temperature (T-T): -20 - 55 °C
- Storage temperature (T-T): -30 - 65 °C
- Width: 275 mm
- Depth: 391 mm
- Height: 12 mm
- Weight: 1 kg
- Harmonized System (HS) code: 85177100
Inc GST
$585.34
