MOTOROLA ANTENNA:SLIM RFID 10.8 X 8.4 EU
ANTENNA:SLIM RFID 10.8 X 8.4 EU
- Brand: MOTOROLA
- Category: Printers & Office Equipment
- SKU: 2448219
- MPN: AN610-SCL71128EU
Zebra AN610 network antenna Omni-directional antenna N-type 1 dBi
Zebra AN610, 1 dBi, 0.864 - 0.868 GHz, Omni-directional antenna, N-type, Female, Circular polarization

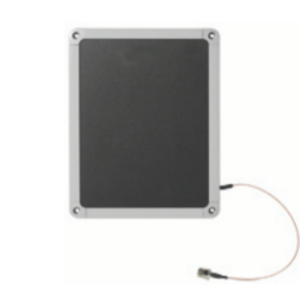

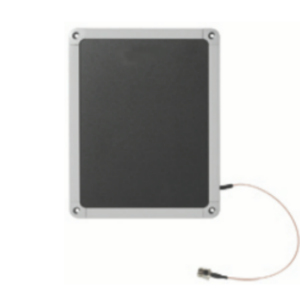

Click or hover over image to enlarge
Power consumption (max)
6 W
Antenna type
Omni-directional antenna
Antenna connector type
N-type
Connector gender
Female
Polarization
Circular polarization
Voltage Standing Wave Ratio (VSWR)
1.4:1
Product colour
Black
Mounting
Ceiling/wall
Comsys Price
Available to Order
Ships in 1–5 business days
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $132.54 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
MOTOROLA ANTENNA:SLIM RFID 10.8 X 8.4 EU
Easy to Mount
The AN610 features a simple, integrated mounting system. It stands just under one-half inch (12mm) from horizontal or vertical mounting surfaces.
Stylish Space Saver
The outer shell is sleek and discreet for any business setting but rugged enough for indoor industrial areas.
Suited For All Areas
The AN610 antenna is suited for use in wall mount, doorways, under counter, above counter as an RFID pad, on shelves, POS or end-cap displays like jewelry counter applications.
Key features
- Frequency band: 0.864 - 0.868 GHz
- Antenna gain level (max): 1 dBi
- Antenna type: Omni-directional antenna
- Antenna connector type: N-type
- Connector gender: Female
- Polarization: Circular polarization
- Voltage Standing Wave Ratio (VSWR): 1.4:1
- Product colour: Black
- Mounting: Ceiling/wall
- Purpose: Indoor & outdoor
- Front to back ratio: 18 dB
- Isolation: 38 dB
- Power consumption (max): 6 W
- Operating temperature (T-T): -30 - 65 °C
- Storage temperature (T-T): -40 - 70 °C
- Width: 214 mm
- Depth: 12 mm
- Height: 275 mm
- Weight: 600 g
- Quantity per pack: 1 pc(s)
- Harmonized System (HS) code: 85177100
Inc GST
$530.14
