MSI MAG A850GL PCIE5
MAG A850GL PCIE5
- Brand: MSI
- Category: Power Supplies
- SKU: 5886474
- MPN: MAG A850GL PCIE5

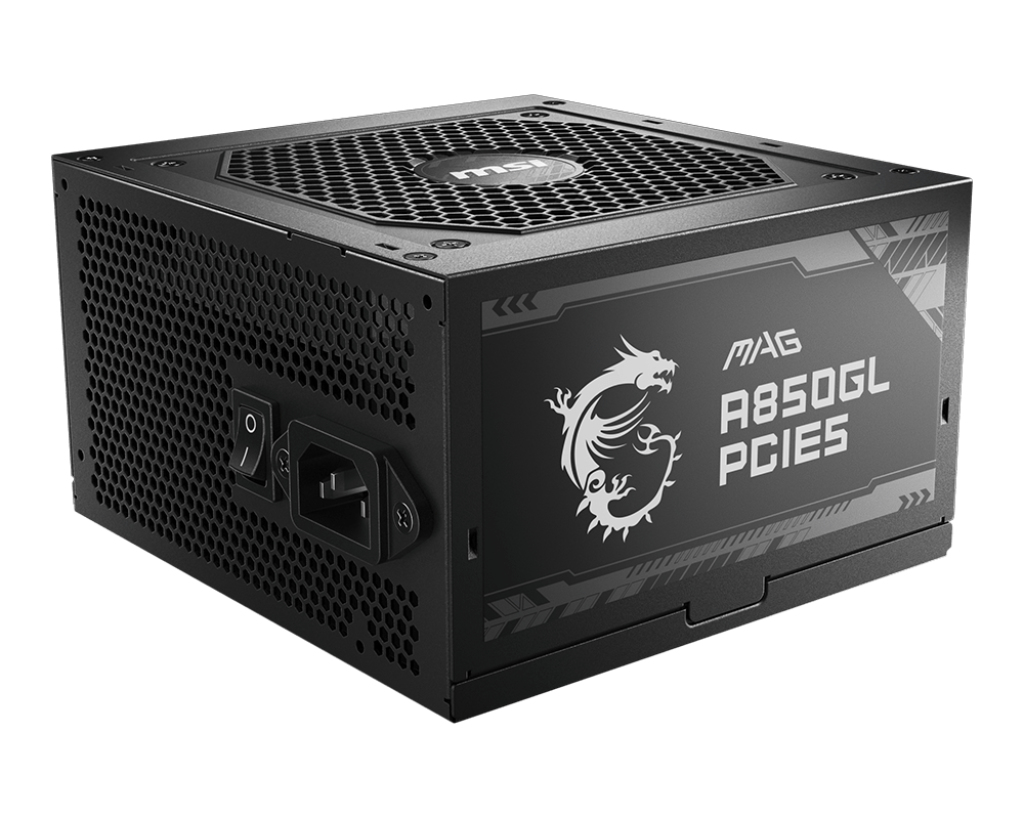

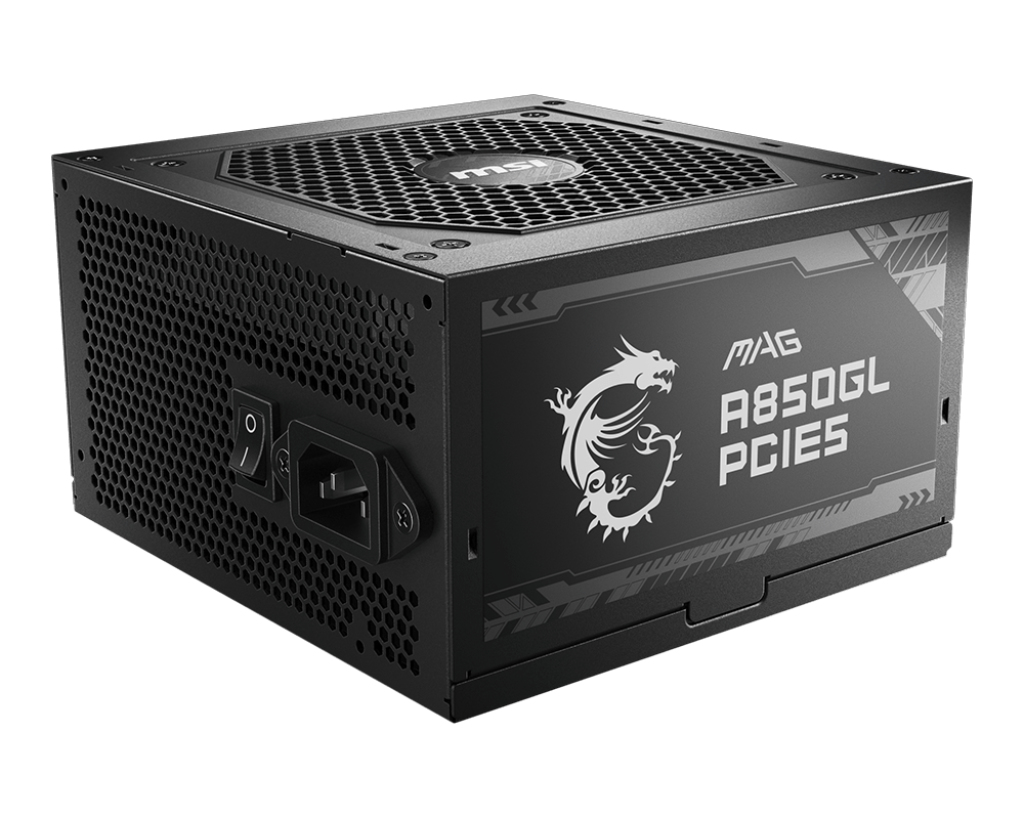

MSI MAG A850GL PCIE5 power supply unit 850 W 20+4 pin ATX ATX Black
MSI MAG A850GL PCIE5, 850 W, 100 - 240 V, 47 - 63 Hz, 8 A, 4 A, Active
Click or hover over image to enlarge
Total power
850 W
AC input voltage
100 - 240 V
AC input frequency
47 - 63 Hz
Maximum input current (@110V)
8 A
Maximum input current (@220V)
4 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
846 W
Comsys Price
Save $26.01 off RRP
In Stock
18 units available
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Four payments of $55.49 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
MSI MAG A850GL PCIE5
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Key features
- Total power: 850 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Maximum input current (@110V): 8 A
- Maximum input current (@220V): 4 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 110 W
- Combined power (+12V): 846 W
- Combined power (+5V): 110 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 70.5 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 8
- Peripheral (Molex) power connectors (4-pin): 4
- EPS power connector (8-pin): No
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- CPU power connector (4+4 pin): Yes
- ATX Power connector (24-pin): No
- ATX power connector (20+4 pin): No
- Cabling type: Fully-Modular
- 80 PLUS certification: 80 PLUS Gold
+ 13 more — see the Specifications tab.
