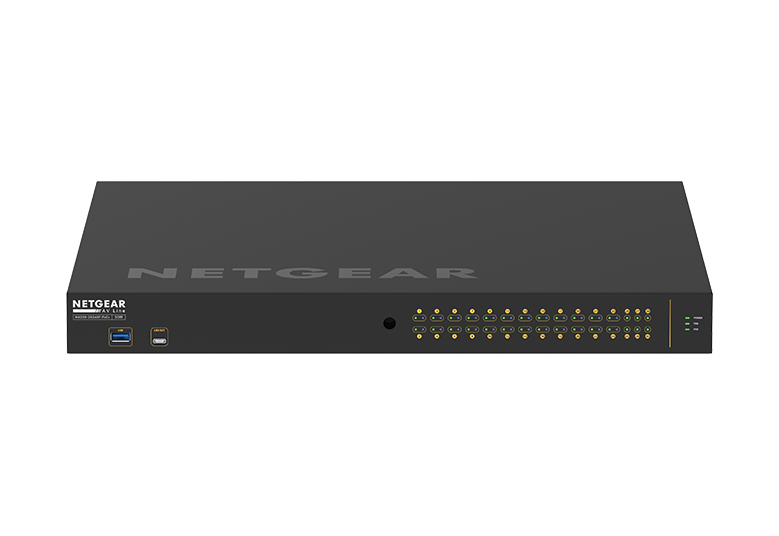

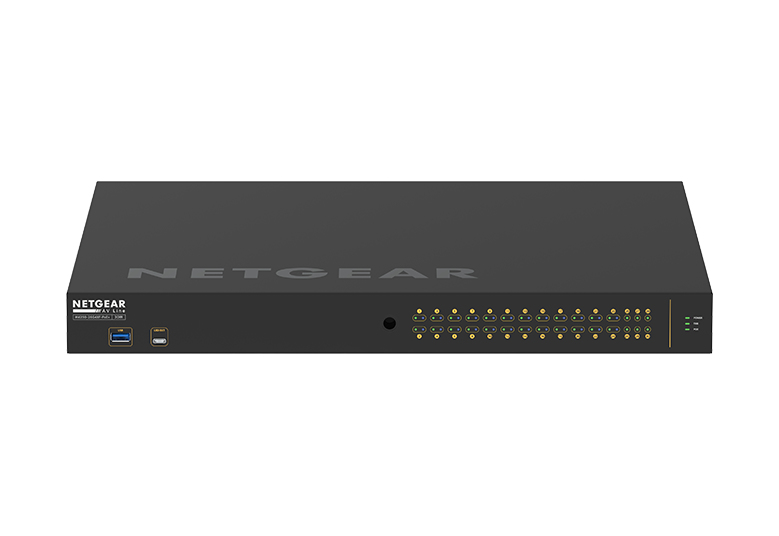

NETGEAR GSM4230PX-100AJS AV Line 24-Port Managed Rackmount Gigabit PoE+ Switch 24x1G PoE+ 2x1G 4x 10GigE SFP+ 480W PoE Power (M4250-26G4XF-PoE+)
AV Line 24-Port Managed Rackmount Gigabit PoE+ Switch 24x1G PoE+ 2x1G 4x 10GigE SFP+ 480W PoE Power (M4250-26G4XF-PoE+)
- Brand: NETGEAR
- Category: Switches
- SKU: GSM4230PX-100AJS
- MPN: GSM4230PX-100AJS
NETGEAR M4250-26G4XF-PoE+ Managed L2/L3 Gigabit Ethernet… Save $1,143.01 off RRP
Available On OrderEstimated arrival 29 Jun 2026
$4,075.59
Inclusive of GST
1
Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-SN-000011
- MPN:
- GSM4230PX-100AJS
- Brand:
- NETGEAR
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $1,143.01 off RRP while stocks last.
NETGEAR GSM4230PX-100AJS AV Line 24-Port Managed Rackmount Gigabit PoE+ Switch 24x1G PoE+ 2x1G 4x 10GigE SFP+ 480W PoE Power (M4250-26G4XF-PoE+)
Pre-configured for out-of-the-box use
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Rackmount versatility
1U, 400mm deep rackmount with all power and Ethernet ports on the back
Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables
Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes
Adjustable fan functionality
Quiet mode with 42dB@25ºC, or fanless mode when PoE load and temperature allow
Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.
Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.
Get up and running fast with little engineering time required
Our NETGEAR IGMP Plus TM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations
Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Rackmount versatility
1U, 400mm deep rackmount with all power and Ethernet ports on the back
Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables
Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes
Adjustable fan functionality
Quiet mode with 42dB@25ºC, or fanless mode when PoE load and temperature allow
Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.
Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.
Get up and running fast with little engineering time required
Our NETGEAR IGMP Plus TM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations
Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
Key features
- Switch type: Managed
- Switch layer: L2/L3
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
- USB 2.0 ports quantity: 1
- IPv4 routes: 512
- IPv6 routes: 128
- VLAN support: Yes
- Number of VLANs: 4
- Switching capacity: 132 Gbit/s
- Throughput: 98.21 Mpps
- MAC address table: 16 entries
- Latency (1 Gbps): 2.29 µs
- Latency (10 Gbps): 0.83 µs
- Jumbo frames support: Yes
- Jumbo frames: 12000
- Packet buffer memory: 16 MB
- IPv4 FIB entries: 256
- IPv6 FIB entries: 16
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- Temperature sensor: Yes
- Built-in processor: Yes
- Processor model: ARM Cortex-A57
- Noise level: 42 dB
- Fanless: Yes
- Power source: PoE
- Power supply included: Yes
