NETGEAR XCM8903SX-10000S M6100-24X3 Chassis Switch Starter Kit (XCM8903 APS1000W AFT603 XCM8924X)
M6100-24X3 Chassis Switch Starter Kit (XCM8903 APS1000W AFT603 XCM8924X)
- Brand: NETGEAR
- Category: Switches
- SKU: XCM8903SX-10000S
- MPN: XCM8903SX-10000S
NETGEAR M6100-24X3 Managed L3 Gigabit Ethernet (10/100/1000) 4U… Save $2,790.01 off RRP
Available On OrderEstimated arrival 15 Jul 2026
$9,944.04
Inclusive of GST
1
Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-SN-000548
- MPN:
- XCM8903SX-10000S
- Warranty:
- 60 months
- Brand:
- NETGEAR
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $2,790.01 off RRP while stocks last.
NETGEAR XCM8903SX-10000S M6100-24X3 Chassis Switch Starter Kit (XCM8903 APS1000W AFT603 XCM8924X)

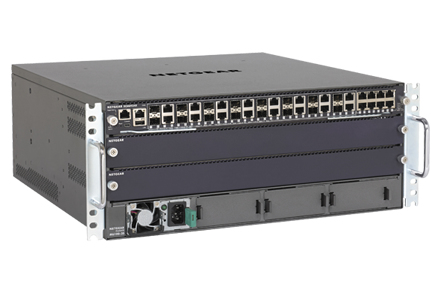

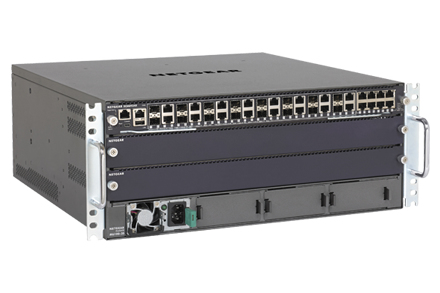

M6100-24X3 Starter Kit bundle including M6100-3S base chassis, XCM8924X blade, AFT603 fan tray, APS1000W power supply
M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point.
The NETGEAR® Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane, hitless failover, redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.
World-class availability
- Dependable continuity of operations with non-stop switching, non-stop routing and hitless failover supported for both fabric and management
- N+1 redundancy for power supplies and loop-free, disruption-free multi-chassis link aggregation (MLAG)
High speed performance
- 1.4 Tbps total routing / switching capacity and up to 1,071 Mpps intra-blade throughput
- 480 Gbps distributed fabric inter-module with each slot providing 2 x 40G access to the passive backplane (80G half-duplex; 160G full-duplex)
Lower complexity
- Entire feature set including datacenter (DCBX, PFC, ETS, FIP Snooping) and advanced IPv6 L3 routing (OSPF, PBR, BGP) is available without license
- Innovative slot-1 supervisory and slot-2 backup supervisory design simplifies the entire chassis installation and ongoing maintenance tasks
Investment protection
- Multi-role versatile platform engineered for cost-effective Gigabit edge, flexible Gigabit / 10 Gigabit distribution and scalable 10 Gigabit core applications
- Any Gigabit copper blade can be upgraded with PoE+ 30W or UPOE 60W daughter card and downgraded later if the application has changed
Industry standard management
- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
- NETGEAR M6100 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty*
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point.
The NETGEAR® Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane, hitless failover, redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.
World-class availability
- Dependable continuity of operations with non-stop switching, non-stop routing and hitless failover supported for both fabric and management
- N+1 redundancy for power supplies and loop-free, disruption-free multi-chassis link aggregation (MLAG)
High speed performance
- 1.4 Tbps total routing / switching capacity and up to 1,071 Mpps intra-blade throughput
- 480 Gbps distributed fabric inter-module with each slot providing 2 x 40G access to the passive backplane (80G half-duplex; 160G full-duplex)
Lower complexity
- Entire feature set including datacenter (DCBX, PFC, ETS, FIP Snooping) and advanced IPv6 L3 routing (OSPF, PBR, BGP) is available without license
- Innovative slot-1 supervisory and slot-2 backup supervisory design simplifies the entire chassis installation and ongoing maintenance tasks
Investment protection
- Multi-role versatile platform engineered for cost-effective Gigabit edge, flexible Gigabit / 10 Gigabit distribution and scalable 10 Gigabit core applications
- Any Gigabit copper blade can be upgraded with PoE+ 30W or UPOE 60W daughter card and downgraded later if the application has changed
Industry standard management
- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
- NETGEAR M6100 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty*
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Key features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 16
- Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: Yes
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- VLAN support: Yes
- Number of VLANs: 4000
- MAC address table: 32000 entries
- Number of queues: 7
- Jumbo frames support: Yes
- DHCP features: DHCP server, DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS, HTTPS, SSH, SSL/TLS
- MAC address filtering: Yes
- Static port security: Yes
- SSH/SSL support: Yes
- Multicast support: Yes
- Management protocols: SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN
- Supported network protocols: iPv4/iPv6
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 4U
