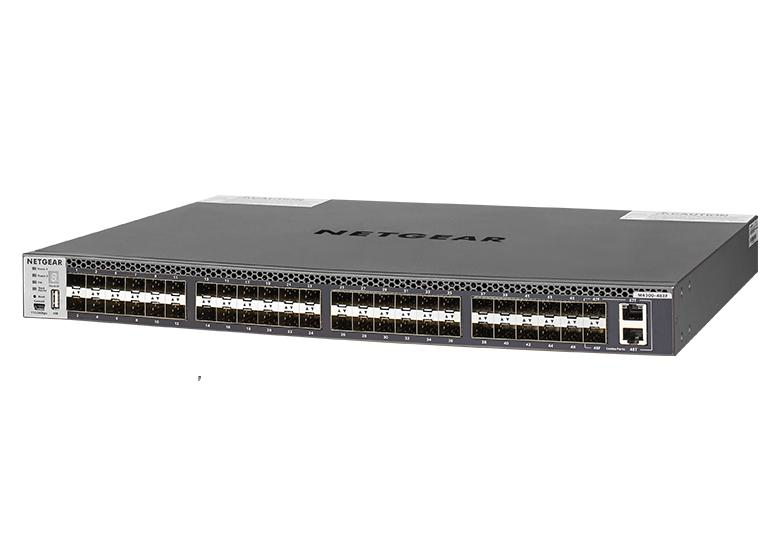

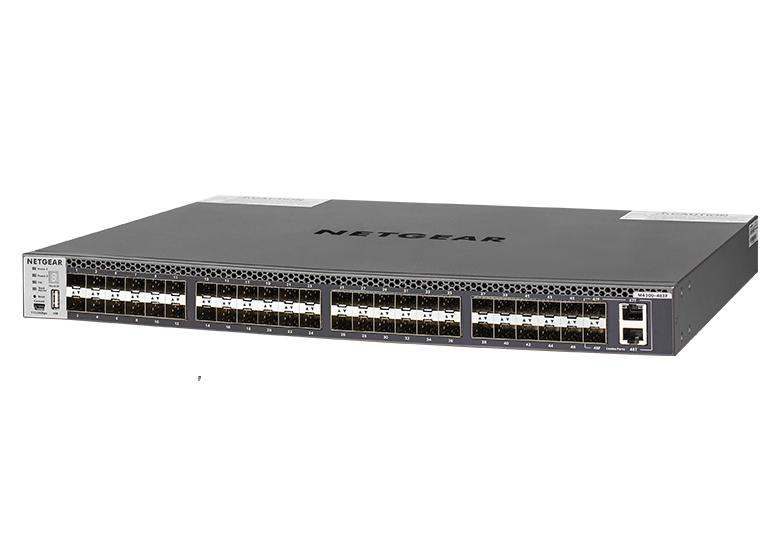

NETGEAR XSM4348FS 48XF 48-PORT MNGD SWITCH
NETGEAR M4300-48XF 48-PORT STACKABLE LAYER 3 FULLY MANAGED SWITCH WITH 48 X SFP+ 2 X 10GBASE-T PORTS PROSAFE LIFETIME WARRANTY XSM4348FS
- Brand: NETGEAR
- Category: Switches
- SKU: 4632212
- MPN: XSM4348FS-100AJS
NETGEAR M4300-48XF Managed L3 1U Black
Contact us for pricing
Sales will confirm current pricing and availability
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-IM-006763
- MPN:
- XSM4348FS-100AJS
- Brand:
- NETGEAR
Genuine NZ stock with full manufacturer warranty — no parallel imports. Hardware only, priced sharp, dispatched fast.
NETGEAR XSM4348FS 48XF 48-PORT MNGD SWITCH
Full-width switches offer dual redundant, modular power supplies (select m4300 models)
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Flexible Speeds
48 Copper ports have 100M/1G/10G speeds 48x10GBASE-T + 4X SFP+ Ports
Key features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- SFP+ module slots quantity: 48
- Console port: RJ-45/Mini-USB
- USB 2.0 ports quantity: 1
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3bz, IEEE 802.3u
- 10G support: Yes
- Port mirroring: Yes
- IP routing: Yes
- Link aggregation: Yes
- Auto-sensing: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 4093
- Switching capacity: 960 Gbit/s
- Throughput: 714 Mpps
- MAC address table: 128000 entries
- Store-and-forward: Yes
- Number of queues: 8
- Number of static routes: 64
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 56 MB
- DHCP features: DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- BPDU filtering/protection: Yes
- Authentication: Guest VLAN, MAC-based authentication
- Multicast support: Yes
