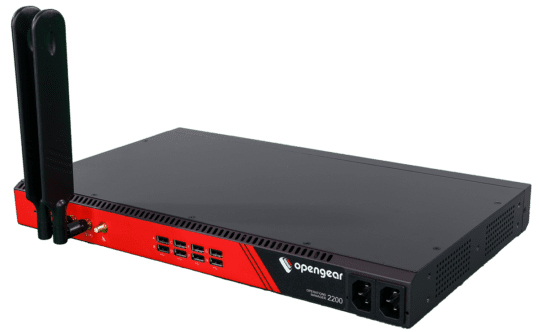

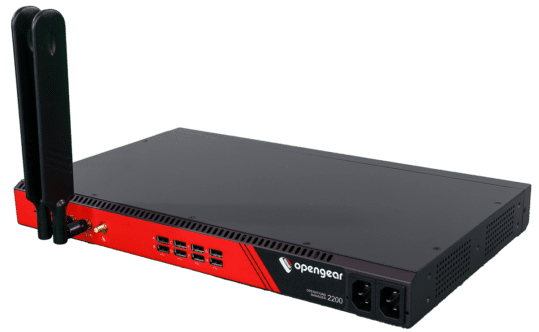

opengear 24 SELECTABLE SERIAL PORTS + 24X 1GBE SW
24 selectable serial ports + 24x 1GbE switch x86 4-core CPU 8G RAM 64G SSD 10GbE SFP+ Docker Support TPM 2.0 4G LTE-A Pro Global Dual AC C14 Power Cord
- Brand: opengear
- Category: Servers & Storage
- SKU: 6618420
- MPN: OM2224-24E-10G-L
Opengear OM2224-24E-10G-L console server RJ-45/Micro-USB
Opengear OM2224-24E-10G-L, SNMP, 802.1x RADIUS, IPSec, TACACS+, RJ-45/Micro-USB, 440 x 260 x 45 mm, 3.5 kg, AC, 100 - 240 V
Click or hover over image to enlarge
Power source type
AC
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
30 W
Internal memory
64000 MB
RAM capacity
8000 MB
RAM type
DDR3
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Comsys Price
Save $10,727.92 off RRP
Available to Order
Ships in 1–5 business days
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
opengear 24 SELECTABLE SERIAL PORTS + 24X 1GBE SW
Opengear OM appliances combine the capabilities of a Smart OOB™ Console Server with the flexibility of Automation.
The OM2200 Console Server, managed through our Lighthouse Software, is configured for data centers and high-density locations. As part of Opengear’s Network Resilience Platform, it provides a separate, secure management plane that supports advanced automation applications.
Key features
- Mobile network generation: 4G
- Rack mounting: Yes
- Zero Touch Provisioning (ZTP): Yes
- 4G LTE: Yes
- Product colour: Black, Red
- Warranty period: 5 year(s)
- Compliance certificates: RoHS, Korean Industrial Standards (KS), VCCI
- Security algorithms: SNMP, 802.1x RADIUS, IPSec, TACACS+
- Console port: RJ-45/Micro-USB
- Serial ports quantity: 24
- USB 2.0 ports quantity: 8
- Ethernet LAN (RJ-45) ports: 24
- SFP module slots quantity: 2
- Dimensions (WxDxH): 440 x 260 x 45 mm
- Weight: 3.5 kg
- Power source type: AC
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 30 W
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -30 - 60 °C
- Operating relative humidity (H-H): 5 - 90%
- Internal memory: 64000 MB
- RAM capacity: 8000 MB
- RAM type: DDR3
- Processor family: AMD
- Processor model: GX-412TC
- Processor cores: 4
- Processor frequency: 1400 MHz
- Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Inc GST
$16,354.14
