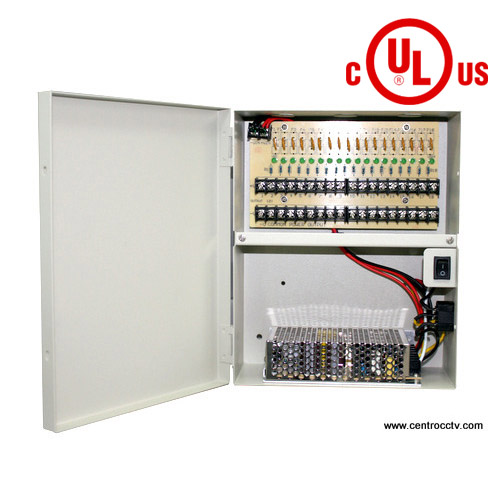

Power Supply 12VDC 10AMP 9CH
Input Voltage ?AC 100-240V, Auto Switch Input Voltage Frequency:50/60Hz Output Voltage ?DC 12V +/-5% Total Output Current ?10A Total Outputs ? 09 Fuse Type ?PTC ( Resettable ) Never need to replace. Fuse Rating ?2A Features ? Thermal Cutoffs Protection (TCO): each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working. Short circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close. High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device. Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Packing Dimension ?256 x 210 x 95 ? mm ? Net Weight :2.3 KG Carton Dimension: 1020*230*295 ? mm ?5PCS /Carton Certification?UL Listed /FCC/CE/ROHS
- Category: Power Supplies
- SKU: PS-DC10A09B
- MPN: thumb119
Power Supply 12VDC 10AMP 9CH
Inclusive of GST
4 payments of $33.21Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-CL-001794
- MPN:
- thumb119
Genuine NZ stock with full manufacturer warranty — no parallel imports. Hardware only, priced sharp, dispatched fast.
Power Supply 12VDC 10AMP 9CH
Input Voltage ?AC 100-240V, Auto Switch Input Voltage Frequency:50/60Hz Output Voltage ?DC 12V +/-5% Total Output Current ?10A Total Outputs ? 09 Fuse Type ?PTC ( Resettable ) Never need to replace. Fuse Rating ?2A Features ? Thermal Cutoffs Protection (TCO): each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working. Short circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close. High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device. Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Packing Dimension ?256 x 210 x 95 ? mm ? Net Weight :2.3 KG Carton Dimension: 1020*230*295 ? mm ?5PCS /Carton Certification?UL Listed /FCC/CE/ROHS
