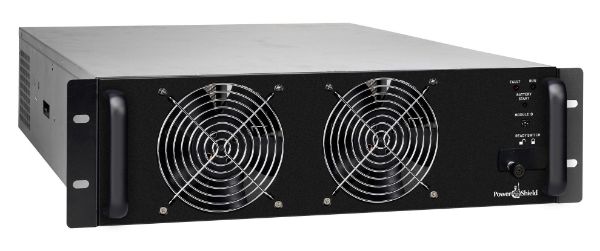

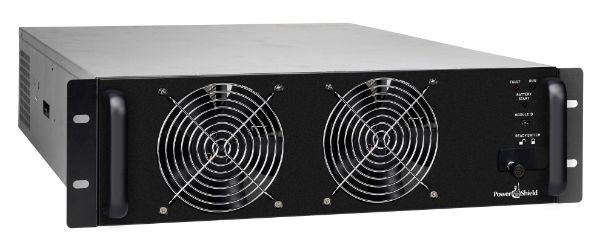

POWERSHIELD 3U 20kW UPS Power Module for Platinum Modular

The Platinum Modular E UPS Range is designed with Australian conditions and requirements in mind. The technology is based on a tried and tested platform ensuring reliability and performance. The Platinum Modular E is designed to be used in a wide range of applications from data centres to manufacturing, hospitals, military and mining environments to name a few. It provides the best power solution for your critical equipment.

FEATURES:

• High Efficiency Online Double Conversion
  Utilises true online double conversion technology with up to 96% efficiency, reducing Total Cost of Ownership (TCO).
• High Scalability
  Digital Signal Processor (DSP) control and modular design support easy future power expansion.
• Unity Output Power Factor
  Delivers unity output power (kVA = kW) for maximum capacity to mission-critical loads, meeting modern server requirements.
• Modular Design
  Power, static switch, and battery modules are modular for simplified maintenance and replacement. Enhances Mean Time Between Failure (MTBF) and lowers Mean Time To Repair (MTTR).
• Flexible Battery Configuration
  Supports 32, 36, or 40 batteries per string.
• Adjustable Charging Current
  Delivers up to 6A for 20kW and 8A for 30kW per power module, adjustable as needed.
• High Overload Capability
  Handles 110% load for 60 mins, 125% for 10 mins, and 150% for 1 min.
• Graphic 5.7” Screen / Mimic / LCD Display
  Includes interactive 5.7” graphic LCD for system status, alarms, and control with mimic display.
• N+1 Parallel Redundancy
  Scalable design supports vertical expansion (20–60kW or 30–90kW in one rack) with N+1 redundancy.
