POWERSHIELD 42U Platinum Modular 120kW Frame. Including STSW
42U Platinum Modular 120kW Frame. Including STSW Controller. No Battery & No
- Brand: Powershield
- Category: Batteries
- SKU: PSPM120KB
- MPN: PSPM120KB
POWERSHIELD 42U Platinum Modular 120kW Frame. Including STSW
The Platinum Modular UPS Range is Power Shield’s premium range of modular UPSs designed with Australian conditions and high-end requirements in mind.

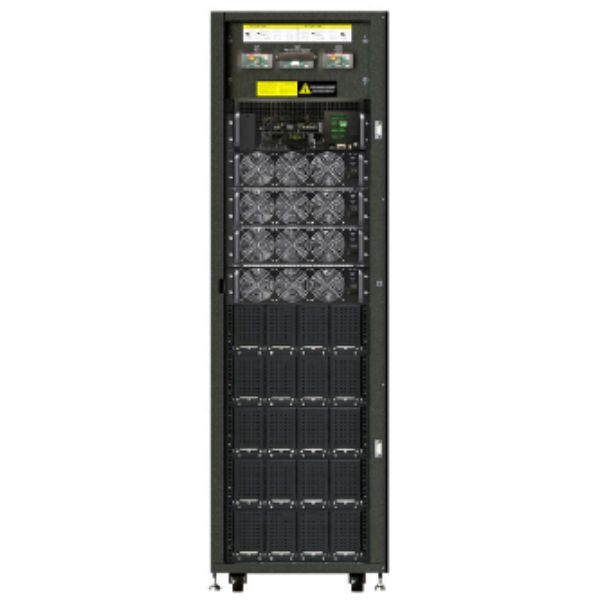

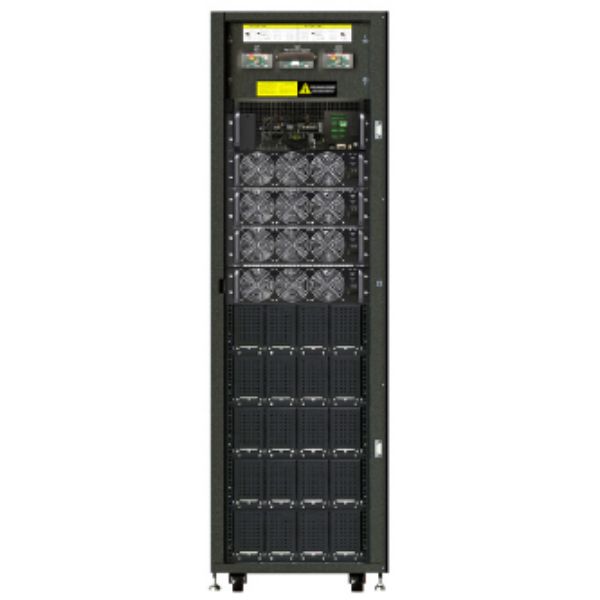

Click or hover over image to enlarge
Price on Application
Contact us for pricing
Sales will confirm seat count, term, and volume pricing before order.
Only 1 left in stock
Order soon to avoid backorder
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
POWERSHIELD 42U Platinum Modular 120kW Frame. Including STSW
The Platinum Modular UPS Range is Power Shield’s premium range of modular UPSs designed with Australian conditions and high-end requirements in mind. The technology is based on a tried and tested platform, ensuring reliability and performance. The Platinum Modular is designed to be used in a wide range of applications, from data centres to manufacturing, hospitals, military and mining environments, to name a few. It provides the best power solution for your critical equipment.
Features:
- REDUNDANCY
The modular N+1 / N+X topology provides for an ultra-reliable uninterruptible power supply to the load. Modular design is applied in the power module, static switch module and battery module. This simplifies maintenance and replacement with a low Mean Time To Repair (MTTR). As a result of modular design, the Mean Time Between Failure (MTBF) is significantly increased. - HIGH SCALABILITY
The UPS that grows with your business. As your power demand increases, simply add more power modules. Digital Signal Processor (DSP) control provides a reliable, high performance. - HIGH EFFICIENCY ONLINE DOUBLE CONVERSION
The Platinum Modular utilises true online double conversion technology with up to 96% efficiency. - FLEXIBLE BATTERY CONFIGURATION
Allows for options of 32, 36 or 40 batteries per string. ADJUSTABLE CHARGING CURRENT Platinum Modular provides a maximum of 6A for 20kW and 8A for 30kW charging current for every power module, and it is adjustable based on requirements. - GRAPHIC SCREEN/MIMIC/LCD DISPLAY
Designed for easy management, the Platinum Modular is equipped with a 5.7” graphic LCD screen. This interactive LCD display gives information on the unit’s operation, alarm and control. The LCD also includes an informative mimic display. Optional 10” colour touch LCD display (factory fitted). - UNITY OUTPUT POWER FACTOR
Platinum Modular delivers unity output power (kVA=kW), providing the maximum power capacity to mission-critical loads. It satisfies the requirements of the latest servers and optimises IT investment - Max cabinet capacity:
120kW - One power module capacity:
30kVA / 30kW - Max. power module no.:
4 - Battery type:
Built-in battery - Max. battery drawers
PSBD10/9: 20 × PSBD10/9 (200 × 12V*9Ah) - Maximum charging current (Battery/Charger row):
8A
Price on Application
