POWERSHIELD Centurion 20kVA Rack Mount UPS. 240VAC or 415VAC In /
Centurion 20kVA Rack Mount Mount UPS. 240VAC or 415VAC In 240VAC out Long run - No
- Brand: Powershield
- Category: UPS Systems
- SKU: PSCER20KL3-1
- MPN: PSCER20KL3-1
POWERSHIELD Centurion 20kVA Rack Mount UPS. 240VAC or 415VAC In /
In applications where only limited three-phase power is available yet a large single-phase power supply is necessary, the PowerShield® Centurion 3/1 Rack ticks all the boxes.

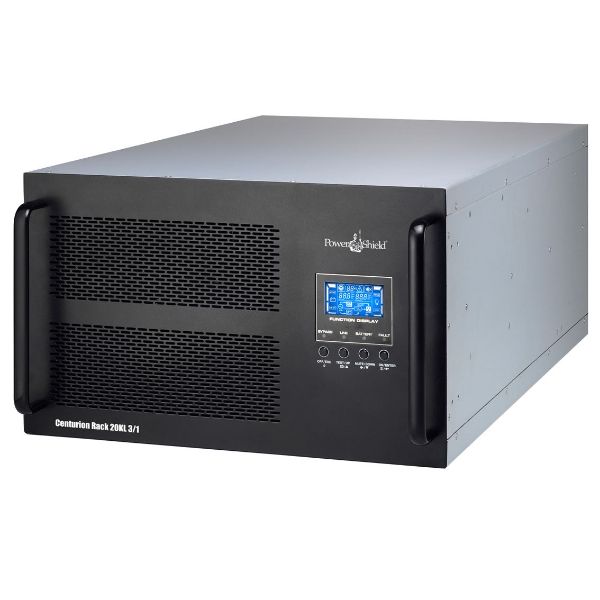

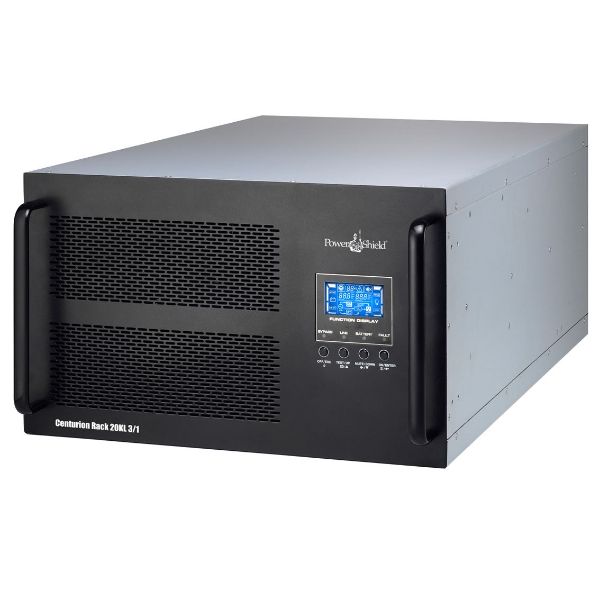

Click or hover over image to enlarge
RU
6U
VA
20000
PHASE
3 / 1
WATTS
16000
WEIGHT
22 kg
CHARGER
8
TOPOLOGY
True Online Double Conversion
DIMENSIONS
558 × 438 × 133 mm
Comsys Price
Save $4,224.98 off RRP
Only 1 left in stock
Order soon to avoid backorder
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
POWERSHIELD Centurion 20kVA Rack Mount UPS. 240VAC or 415VAC In /
In applications where only limited three-phase power is available yet a large single-phase power supply is necessary, the PowerShield® Centurion 3/1 Rack ticks all the boxes. Recommended in applications where a balanced load is required, the Centurion 3/1 Rack Series has all of the features of the Centurion range with the added ability to accept three-phase power to its input. Like the Centurion range, the 3/1 Rack range boasts the same User-friendly LCD display that allows the operator to interrogate and program the UPS on the front panel as well as with the included software. The Centurion 3/1 Rack UPS will accommodate any standard 19-inch rack. It can also be configured to be a single phase in and single phase out UPS. Models come standard, as long-run and external battery banks must be added.
Applications:
- Critical servers
- Networks PSModbus or PSAS400
- Critical IT applications
- PLCs
- Security equipment
- Manufacturing
- Balancing loads
Features:
- True double-conversion
- DSP technology guarantees high performance
- Output power factor 0.8
- Wide input voltage range (110V~300V ac)
- Active power factor correction in all phases
- Built-in phase auto adapt function simplifies wire installation
- 50Hz/60Hz converter mode auto select
- Eco mode operation for energy saving (ECO)
- Emergency power-off function (EPO)
- Generator compatible
- USB, RS-232 as standard
- Intelligent slot for PSSNMP or PSModbus or PSAS400
- 3-stage extendable charging design for optimized battery performance
- Adjustable battery numbers
- Optional N+X parallel redundancy
Inc GST
$13,900.04
