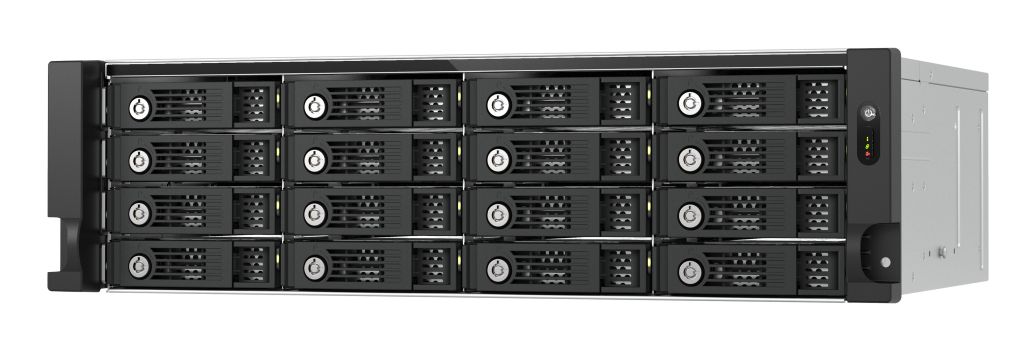

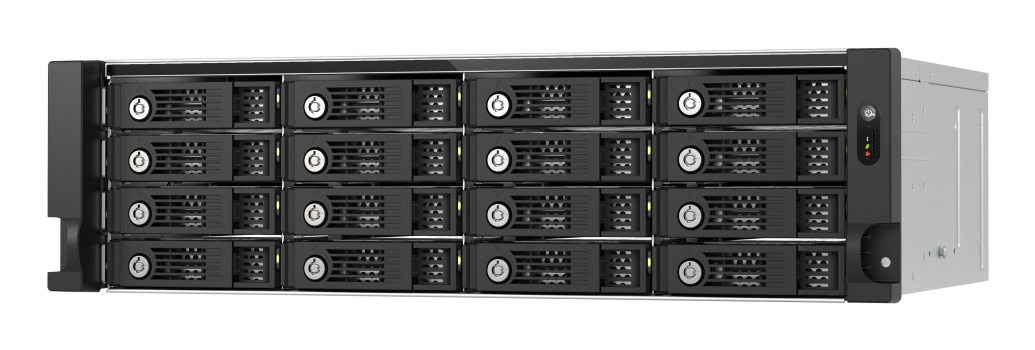

QNAP 16-bay 3U rackmount PCIe interface SATA
16-bay 3U rackmount PCIe interface SATA JBOD expansion enclosure 2.5/3.5in SATA 6Gbps drives 2 ports (SFF-8644 1x2) short depth 14.59in / 370.65mm redundant PSU without rail kit. support TS-h3087XU-RP
- Brand: QNAP
- Category: Servers & Storage
- SKU: 5961975
- MPN: TL-R1600PES-RP
QNAP TL-R1600PES-RP storage drive enclosure HDD/SSD enclosure Black,…
QNAP TL-R1600PES-RP, HDD/SSD enclosure, 2.5/3.5", Serial ATA, 6 Gbit/s, Hot-swap, Black, Grey
Click or hover over image to enlarge
Power source type
AC
External power adapter
Yes
AC adapter input voltage
100 - 240 V
AC adapter output voltage
12 V
Power consumption (max)
550 W
Product type
HDD/SSD enclosure
Product colour
Black, Grey
LED indicators
Fan fail, HDD, Link
Comsys Price
Available to Order
Ships in 1–5 business days
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
QNAP 16-bay 3U rackmount PCIe interface SATA
PCIe Interface 16-bay JBOD, supporting SATA drives, for petabyte-scale expansion designed specifically for QNAP NAS
The TL-R1600PES-RP TL PCIe interface JBOD storage enclosure allows you to expand the storage capacity of a QuTS hero or QTS NAS by using SATA hard drives. Providing large data capacity and fast transfer speed, the TL-R1600PES-RP is the ideal solution for archiving/backing up virtualization applications, surveillance recordings, large data, and multimedia.
QNAP enterprise NAS with petabyte-class storage
Use QNAP enterprise and all-flash QuTS hero NAS paired with multiple TL-R1600PES-RP JBODs, to obtain both breakthrough performance and massive capacity. The TL-R1600PES-RP supports SATA hard drives, providing greater choice in selecting high-capacity drives. This configuration is ideal for enterprises, science research institutions, and media production companies that require high-capacity storage for backing up or storing virtual machines, containers, and what is produced/generated by their high-performance NAS.
Key features
- Number of storage drives supported: 16
- Storage drive size: 2.5/3.5"
- Supported storage drive interfaces: Serial ATA
- Hot-swap: Yes
- Product type: HDD/SSD enclosure
- Product colour: Black, Grey
- LED indicators: Fan fail, HDD, Link
- On/off switch: Yes
- Rack mounting: Yes
- Rack capacity: 2U
- Number of fans: 3 fan(s)
- Fan diameter: 8 cm
- Data transfer rate: 6 Gbit/s
- Power source type: AC
- External power adapter: Yes
- AC adapter input voltage: 100 - 240 V
- AC adapter output voltage: 12 V
- Power consumption (max): 550 W
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 482.2 mm
- Depth: 425.3 mm
- Height: 131.3 mm
- Weight: 11.6 kg
- Package width: 595 mm
- Package depth: 593 mm
- Package height: 305 mm
- Package weight: 16.6 kg
- Package type: Box
+ 1 more — see the Specifications tab.
Inc GST
$6,726.34
