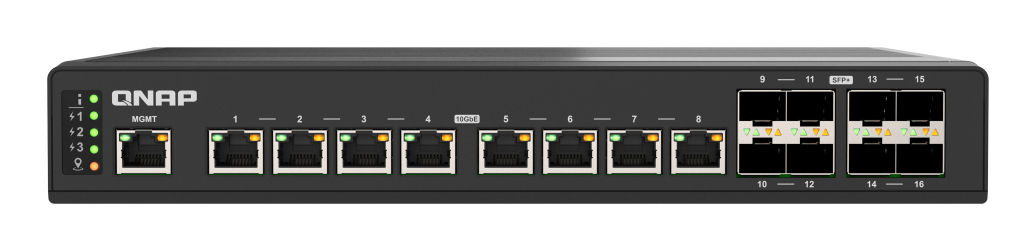

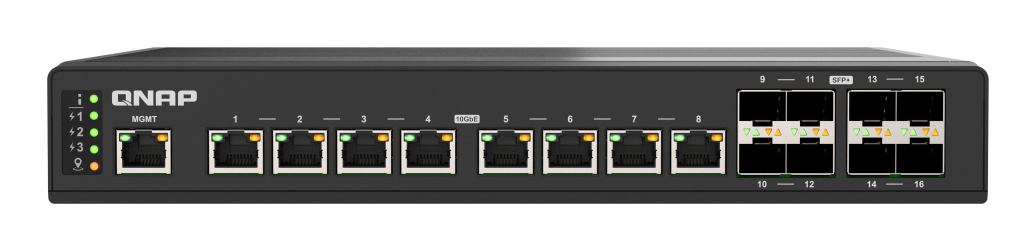

QNAP QSW-IM3216-8S8T network switch Managed L2 10G Ethernet…

Name: QNAPQSW-IM3216-8S8T fan less industrial design, 8 ports 10GbE RJ45, 8 ports 10GbE SFP+, rack mount/wall mount web managed switch
Brand: QNAP
SKU: NS130
Price: 2807.14 NZD
Availability: BackOrder

QNAP QSW-IM3216-8S8T, Managed, L2, 10G Ethernet (100/1000/10000), Rack mounting

Click or hover over image to enlarge

Brand:QNAP

MPN:NS130

Part #: NS130

Search this part on Google

Power source

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

48.632 W

Rack mounting

Yes

Product colour

Black

Reset button

Yes

Returns & Warranty

Comsys Price

$2,807.14

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days

100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare

We accept

Four payments of $701.79 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty: 2 Days

This product includes 2 Days warranty coverage.

QNAPQSW-IM3216-8S8T fan less industrial design, 8 ports 10GbE RJ45, 8 ports 10GbE SFP+, rack mount/wall mount web managed switch

Designed for harsh industrial environments, the QSW-IM3216-8S8T high-speed switch features a fanless IP20-rated enclosure with a redundant DC 9-54V power supply. It provides sixteen 10GbE ports, practical L2 management functions, and can be mounted in a rack, placed on a desktop, or wall mounted. This range of installation options makes it an economical and efficient high-speed networking solution for factory automation, AI smart manufacturing, smart cities, automotive industry, traffic monitoring, and other applications. The QSW-IM3216-8S8T was designed and manufactured in Taiwan, offering high-quality and reliable networking solutions.

Key features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity: 8
SFP+ module slots quantity: 8
Console port: RJ-45
Power connector: Terminal block (6-pin)
Networking standards: IEEE 802.11w, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: Yes
Port mirroring: Yes
Auto-negotiation: Yes
VLAN support: Yes
Switching capacity: 320 Gbit/s
Throughput: 160 Gbit/s
MAC address table: 16000 entries
Static route: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
DHCP features: DHCP server
Access Control List (ACL): Yes
IGMP snooping: Yes
Loop protection: Yes
Rack mounting: Yes
Product colour: Black
Reset button: Yes
LED indicators: Yes

+ 24 more — see the Specifications tab.
