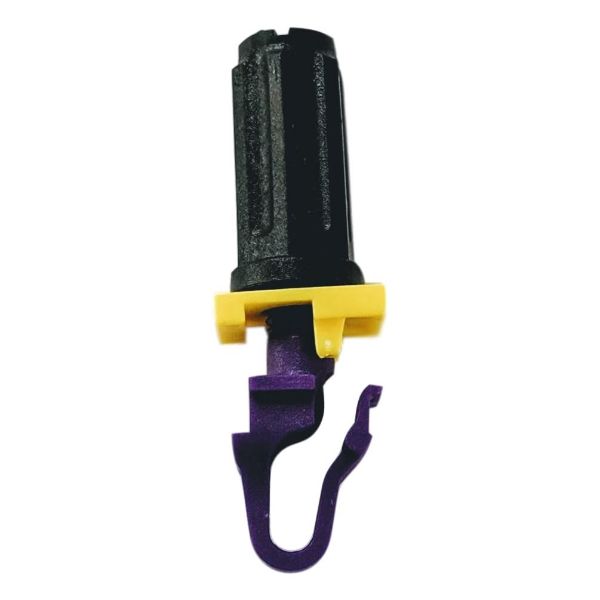

RACKSTUDS Series II 400-pack Purple Smart Rack Mounting System.

Feature:

• Longer Studs: Makes hanging easier when the gear has thicker ‘ears’.
• New Nut: Added PZ2 screwdriver slot and finger flutes while maintaining M10 outside profile.
• Redesigned: Now even easier to insert.
• Stronger: >30% improvement in leverage tests.
• More Tolerant: Now fits even thicker rails. *
• Backwards Compatible: Works with the current nut and washer.

* Purple Version. Tested to work in Chatsworth and Hergo racks.





More about Rackstuds™:

• Rackstuds™ insert from the front and install in seconds.

• They are a breeze to remove and reuse.

• In under 55 seconds, you can complete a typical network switch installation.

• Over the course of a rack build, you can save hours.

• Rackstuds™ unique tool-free installation shaves even more time off your installation. Tighten by hand and you're done.

• Rackstuds™ are made from a metal replacement thermoplastic called Grivory.

• They are rated to hold equipment up to 20kg (44lbs).

• We exceeded our expectations with independent testing by SGC Labs

• The yield test results are Push-in: 46 kgs/101 lbs | Pull out: 92 kgs/202 lbs | Shear: 156 kgs/343 lbs.

• Rackstuds™ are made from a non-conductive reinforced thermoplastic.

• They won’t pose an electrical threat to you or your equipment.

• Rackstuds are colour-coded, so if you drop one they are easy to find.

• Best of all, being plastic, they won’t scratch your equipment!

• Rackstuds™ is available in two sizes.

• Our best-selling 'Red' Rackstuds fit square punched vertical rails and cover 80% of the racks on the market today.

• The unique 'Purple' Rackstuds fit thicker vertical rails found in open frames.

• We even supply 4 pack starter kits to test fit your next rollout
