REXTRON 4 Ports True 4K HDMI KVM Switch With HDCP Engine & 3.5mm

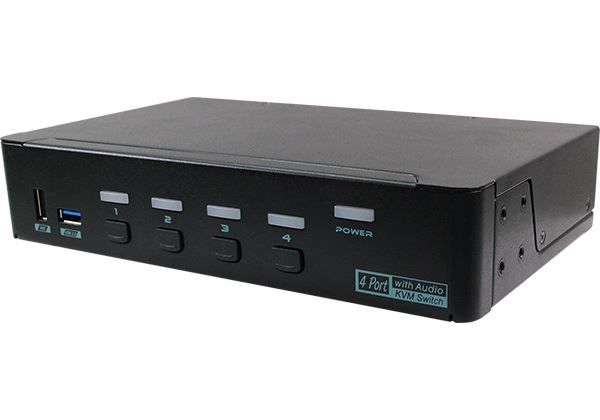

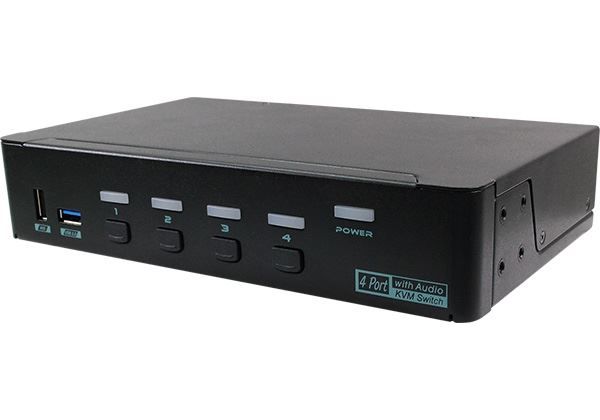

MKAG-G3114 is a 4 Ports True 4K HDMI 2.0 KVM Switch with HDCP Engine and 3.5mm audio built-in, and allows users to share one set of keyboard, mouse, monitor, and audio between four computers. This 4 Ports desktop KVM Switch supporting most popular resolutions up to 4K 60Hz (4:4:4) is ideal for multimedia applications. Besides, there is no need for software or interface card installation. Just connect the cables, power up the system and you are ready to have vivid video images with excellent clarity.

Special design for HDCP slide switch

This 4 Ports HDMI 2.0 KVM Switch enables users to copy or automatically learn EDID from the connected monitor, and the exclusive HDCP slide switch on the rear panel allows users to select the 3 preset HDCP modes:

• Mode-1: Auto mode allows HDCP 2.2 or HDCP 1.4 content pass-thru (factory default)
• Mode-2: HDCP 1.4 mode allows HDCP 1.4 content to be licensed
• Mode-3: NONE mode allows non-HDCP content to be played
• NOTE: The upgrade port (mini USB-B port) is designed for firmware updates.



Where do KVM Switches use?

The KVM switches basically have 2 to 4 USB ports, allowing you to share keyboards and mice, printers, USB thumb drives, webcams, and headsets, or other peripherals. Rextron USB KVM Switch products are suitable to be used in SOHO, Server Rooms, Airports, Stations or the environment that needs to control multiple PCs at the same time.

Rextron also provides HDMI2.1, HDMI 2.0, and Displayport 1.4 KVM products with Quad monitor, Triple monitor, Dual monitor, and Single monitor designs ideal for further requirements. Rextron KVM switch products support various video interfaces like VGA, DVI, HDMI, DisplayPort, and even the popular USB-C for the maximum of up to 8K 60Hz resolution.

We provide a variety of USB KVM switch products to meet customer’s requirements, like desktop KVM Switches, cabinet KVM switches, power redundant KVM switches, and Full-Frame PBP KVM Switches for PC, Mac, or Linux users.

Features:

• Allows 4 Computers Share 1 Set of KVM Console
• HDMI 2.0 Video Supports Most Popular Resolutions Up to 4K 60Hz ( 4:4:4 )
• HDR10 Support for Best Visual Experience
• HDCP 2.2 / HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
• HDCP Engine Ensures Low-Latency Switch
• EDID Management, Including EDID Copy / Auto EDID, Ensures Display Compatibility
• Plug-and-Play without Software or Driver
• USB 3.2 Gen 1 Provides Excellent 5Gbps Speed
