SPS-PROC SKL-SP AU 5120 2.2GHZ 105W
- Brand: HP
- Category: CPUs
- SKU: L09260-001
- MPN: L09260-001

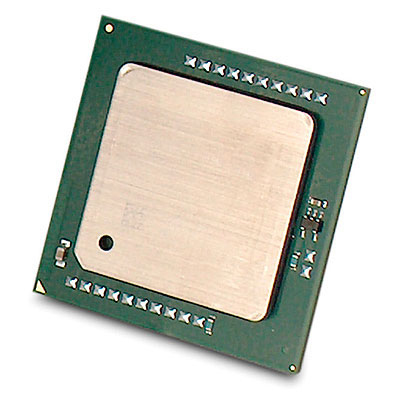

HP Intel Xeon Gold 5120 processor 2.2 GHz 19.25 MB L3
HP Intel Xeon Gold 5120, Intel® Xeon® Gold, LGA 3647 (Socket P), 14 nm, 2.2 GHz, 64-bit, 1st Generation Intel® Xeon® Scalable
Click or hover over image to enlarge
Maximum internal memory supported by processor
768 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2400 MHz
Memory channels
Hexa-channel
ECC
Yes
Execute Disable Bit
Yes
Market segment
Server
Maximum number of PCI Express lanes
48
Comsys Price
Available to Order
Ships in 1–5 business days
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
SPS-PROC SKL-SP AU 5120 2.2GHZ 105W
Key features
- Processor generation: 1st Generation Intel® Xeon® Scalable
- Processor model: 5120
- Processor base frequency: 2.2 GHz
- Processor family: Intel® Xeon® Gold
- Processor cores: 14
- Processor socket: LGA 3647 (Socket P)
- Component for: Server/workstation
- Processor lithography: 14 nm
- Processor series: Intel Xeon Gold 5000 Series
- Processor threads: 28
- Processor operating modes: 64-bit
- Processor boost frequency: 3.2 GHz
- Processor cache: 19.25 MB
- Processor cache type: L3
- Thermal Design Power (TDP): 105 W
- Cooler included: No
- Stepping: M0
- Bus type: UPI
- Processor codename: Skylake
- Maximum internal memory supported by processor: 768 GB
- Memory types supported by processor: DDR4-SDRAM
- Memory clock speeds supported by processor: 2400 MHz
- Memory channels: Hexa-channel
- ECC: Yes
- On-board graphics card: No
- Discrete graphics card: No
- Execute Disable Bit: Yes
- Market segment: Server
- Maximum number of PCI Express lanes: 48
- PCI Express slots version: 3.0
+ 22 more — see the Specifications tab.
Inc GST
$4,455.09
