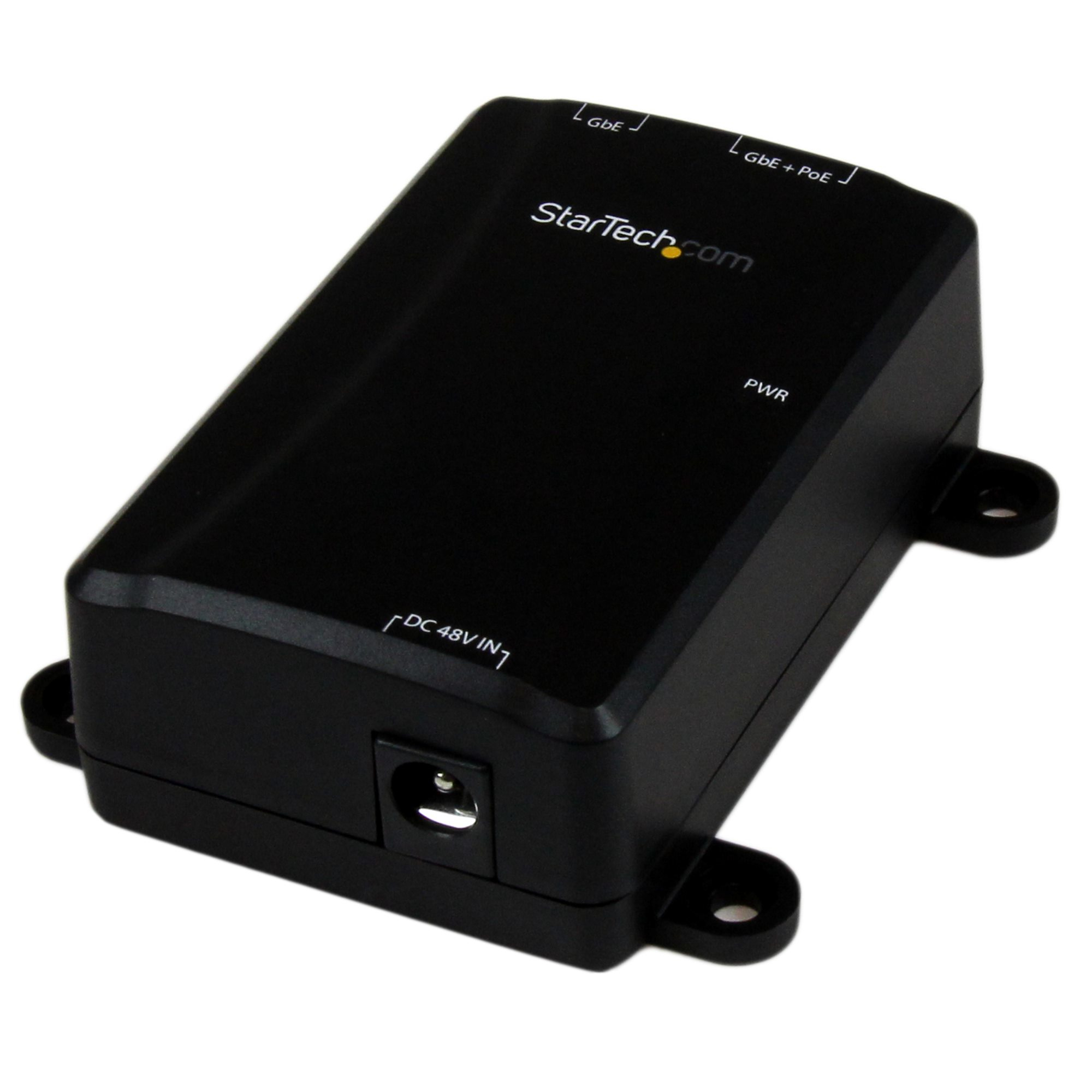

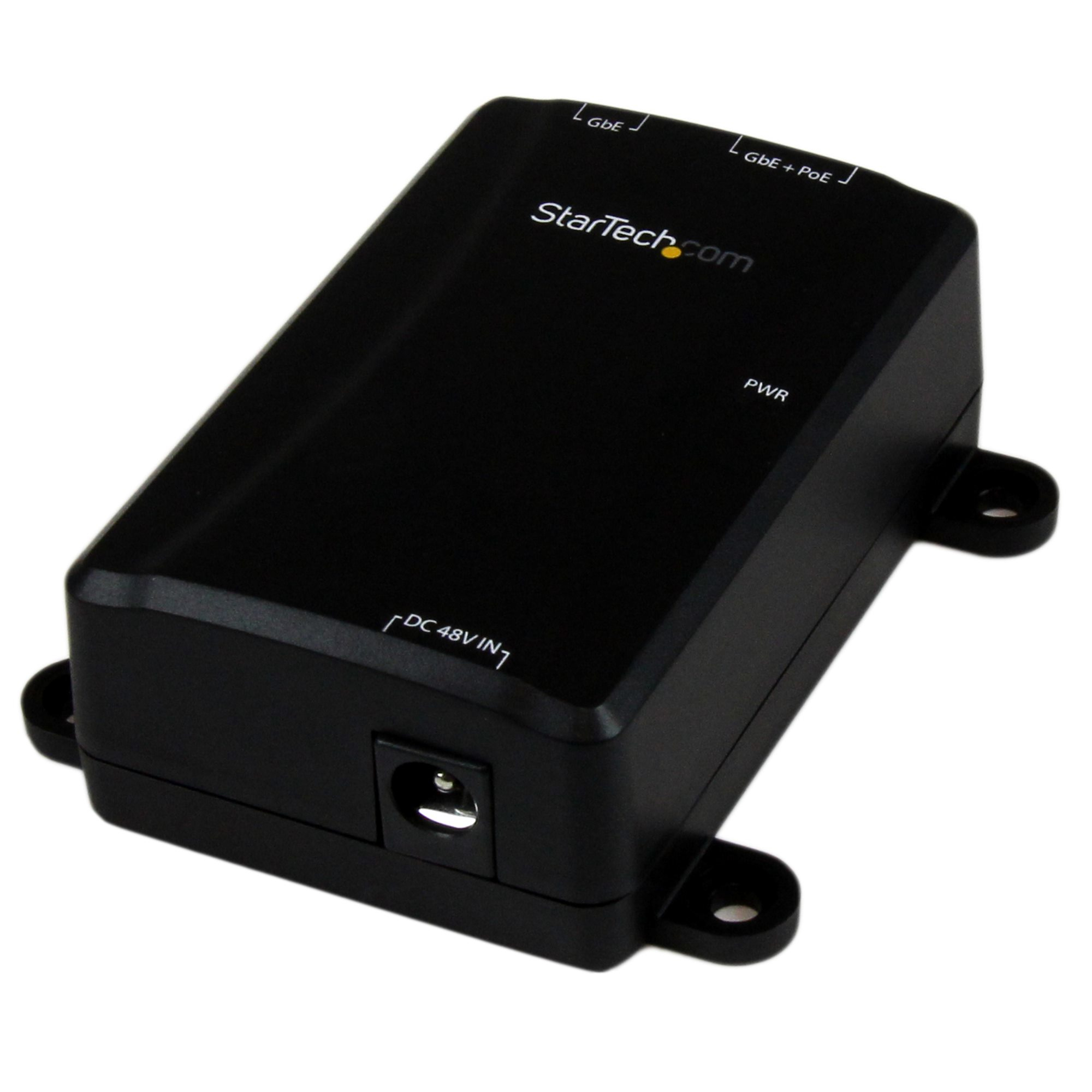

STARTECH.COM 1 PORT GIGABIT MIDSPAN - POE+ INJECTOR - 802.3AT AND 802.3AF 2 YR

Peripherals & Accessories > Chargers & Power Adapters

  • Brand: STARTECH
  • Category: Peripherals & Accessories
  • SKU: POEINJ1GW
  • MPN: POEINJ1GW

StarTech.com 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and…

StarTech.com 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Full, Cat5, Black

STARTECH.COM 1 PORT GIGABIT MIDSPAN - POE+ INJECTOR - 802.3AT AND 802.3AF 2 YR

Click or hover over image to enlarge

Brand:STARTECH
MPN:POEINJ1GW

Part #: POEINJ1GW

Search this part on Google

Power over Ethernet (PoE) voltage

48 V

Output power

30 W

Input voltage

100 - 240 V

Input current

0.75 A

Output current

0.64 A

Power consumption (max)

36 W

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s


Returns & Warranty

Comsys Price

$215.04
On Sale

Save $36.45 off RRP

In Stock

8 units available

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay

Four payments of $53.76 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

STARTECH.COM 1 PORT GIGABIT MIDSPAN - POE+ INJECTOR - 802.3AT AND 802.3AF 2 YR

Deliver power and data to your Power over Ethernet device using this mountable PoE+ midspan

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).

The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

Convenience and cost savings

This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn’t available.

Easy to set up in mixed environments

You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that’s perfect for installing on walls or under a desk, but it’s also palm-sized, for use on desktop surfaces.

Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Intelligent power allocation

Not sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.

The POEINJ1GW is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

  • Ethernet interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Power over Ethernet (PoE): Yes
  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
  • Duplex system: Full
  • Cable types supported: Cat5
  • Product colour: Black
  • Plug and Play: Yes
  • Maximum operating distance: 100 m
  • LED indicators: Power
  • Ethernet LAN (RJ-45) ports: 2
  • DC-in jack: Yes
  • Power over Ethernet (PoE) voltage: 48 V
  • Output power: 30 W
  • Input voltage: 100 - 240 V
  • Input current: 0.75 A
  • Output current: 0.64 A
  • Power consumption (max): 36 W
  • Compliance certificates: CE, RoHS
  • Operating temperature (T-T): 0 - 45 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage temperature (T-T): -20 - 85 °C
  • Width: 63 mm
  • Depth: 70 mm
  • Height: 25 mm
  • Weight: 50 g
  • AC adapter included: Yes
  • Power cord included: Yes
  • Quick installation guide: Yes
  • Package width: 230 mm

+ 8 more — see the Specifications tab.
