STARTECH.COM 1-PORT PCI EXPRESS RS232 SERIAL ADAPTER CARD - PCIE SERIAL DB9 LTW
Peripherals & Accessories > Chargers & Power Adapters
- Brand: STARTECH
- Category: Peripherals & Accessories
- SKU: PEX1S953LP
- MPN: PEX1S953LP
StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe…
StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux, PCIe, Serial, PCIe 1.1, RS-232, Green, 277385 h
Click or hover over image to enlarge
Internal
Yes
Product colour
Green
Mean time between failures (MTBF)
277385 h
Chipset
Asix AX99100
Baud rate
921.4 Kbit/s
FIFO (First In, First Out)
256 B
Data bits
5, 6, 7, 8, 9
Stop bits
1, 1.5, 2
Comsys Price
Save $17.67 off RRP
Available to Order
Ships in 1–5 business days
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 68 Plunket Avenue, Papatoetoe, Auckland 2104
Four payments of $26.45 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM 1-PORT PCI EXPRESS RS232 SERIAL ADAPTER CARD - PCIE SERIAL DB9 LTW

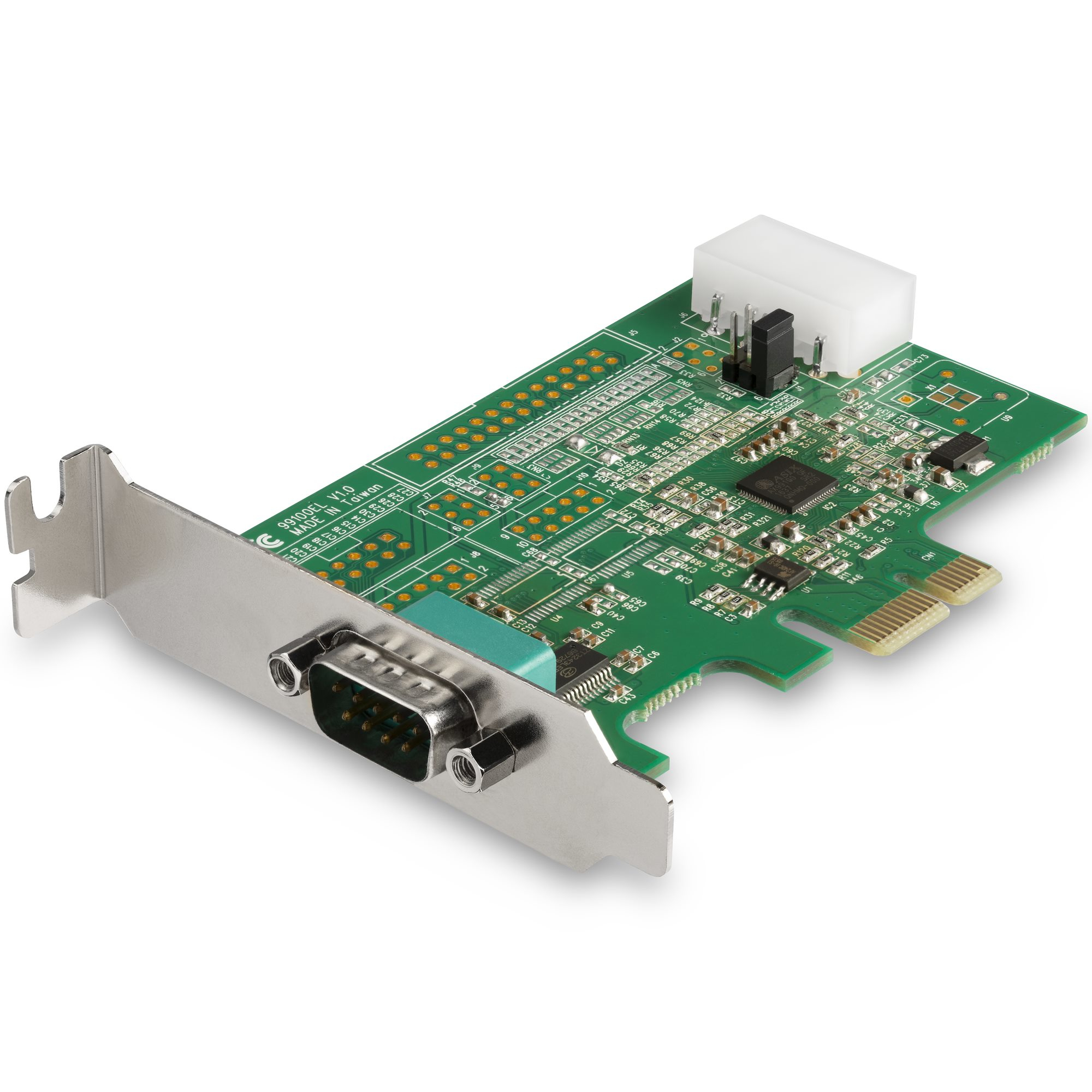

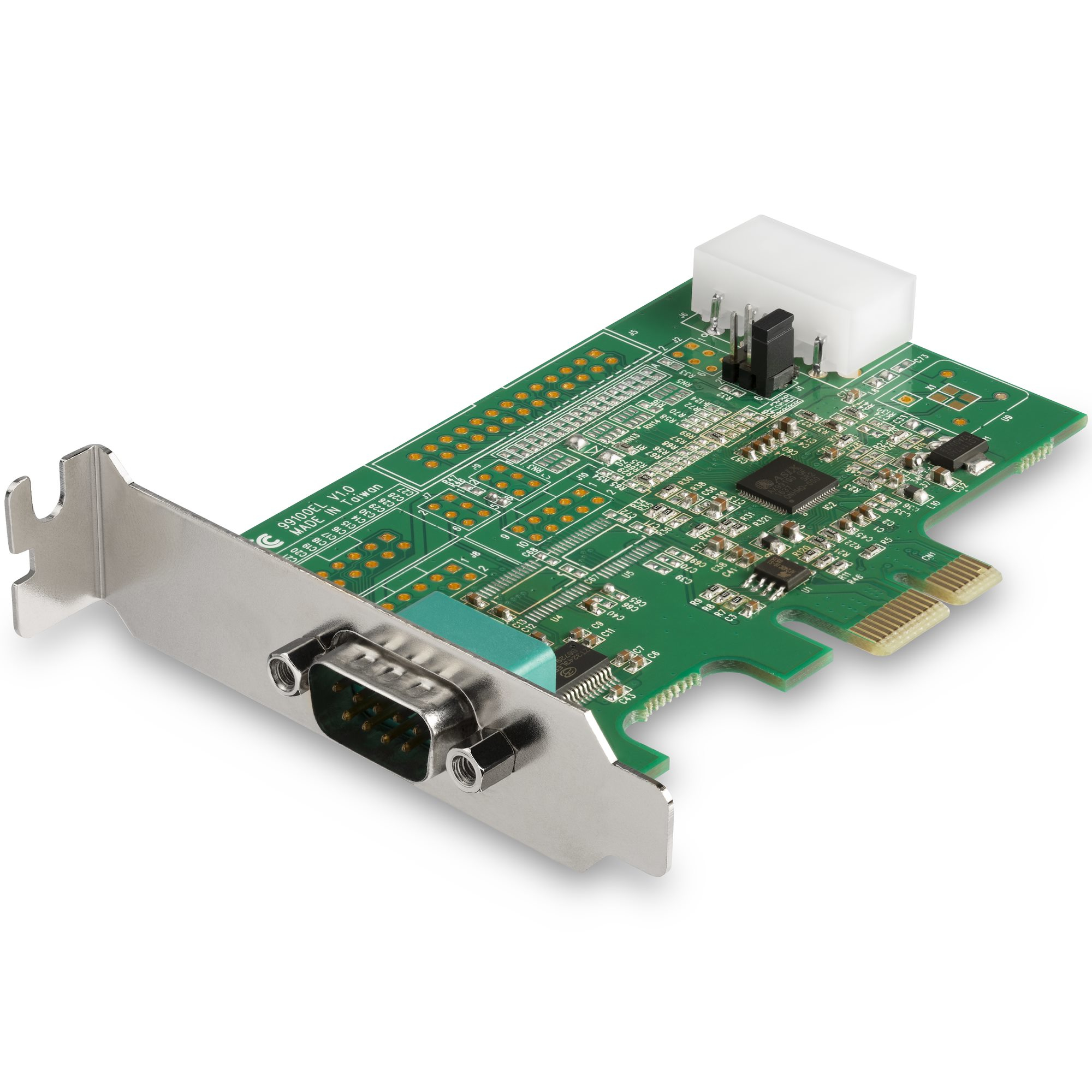

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 128-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset
• PCI Express 1.1 compliant
PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Host interface: PCIe
- Output interface: Serial
- Expansion card standard: PCIe 1.1
- Serial ports quantity: 1
- Serial interface type: RS-232
- Peripheral (Molex) power connectors (4-pin): 1
- Internal: Yes
- Product colour: Green
- Mean time between failures (MTBF): 277385 h
- Chipset: Asix AX99100
- Baud rate: 921.4 Kbit/s
- FIFO (First In, First Out): 256 B
- Data bits: 5, 6, 7, 8, 9
- Stop bits: 1, 1.5, 2
- Flow control support: Yes
- Parity bit: Even, Mark, No, Odd, Space
- Flow Control type: No, RTS/CTS, XON/XOFF
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -20 - 80 °C
- Operating relative humidity (H-H): 20 - 80%
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
- Sustainability compliance: Yes
- Compliance certificates: CE, RoHS
- Width: 67 mm
- Depth: 98 mm
- Height: 150 mm
- Weight: 44 g
- Quantity: 1
+ 11 more — see the Specifications tab.
