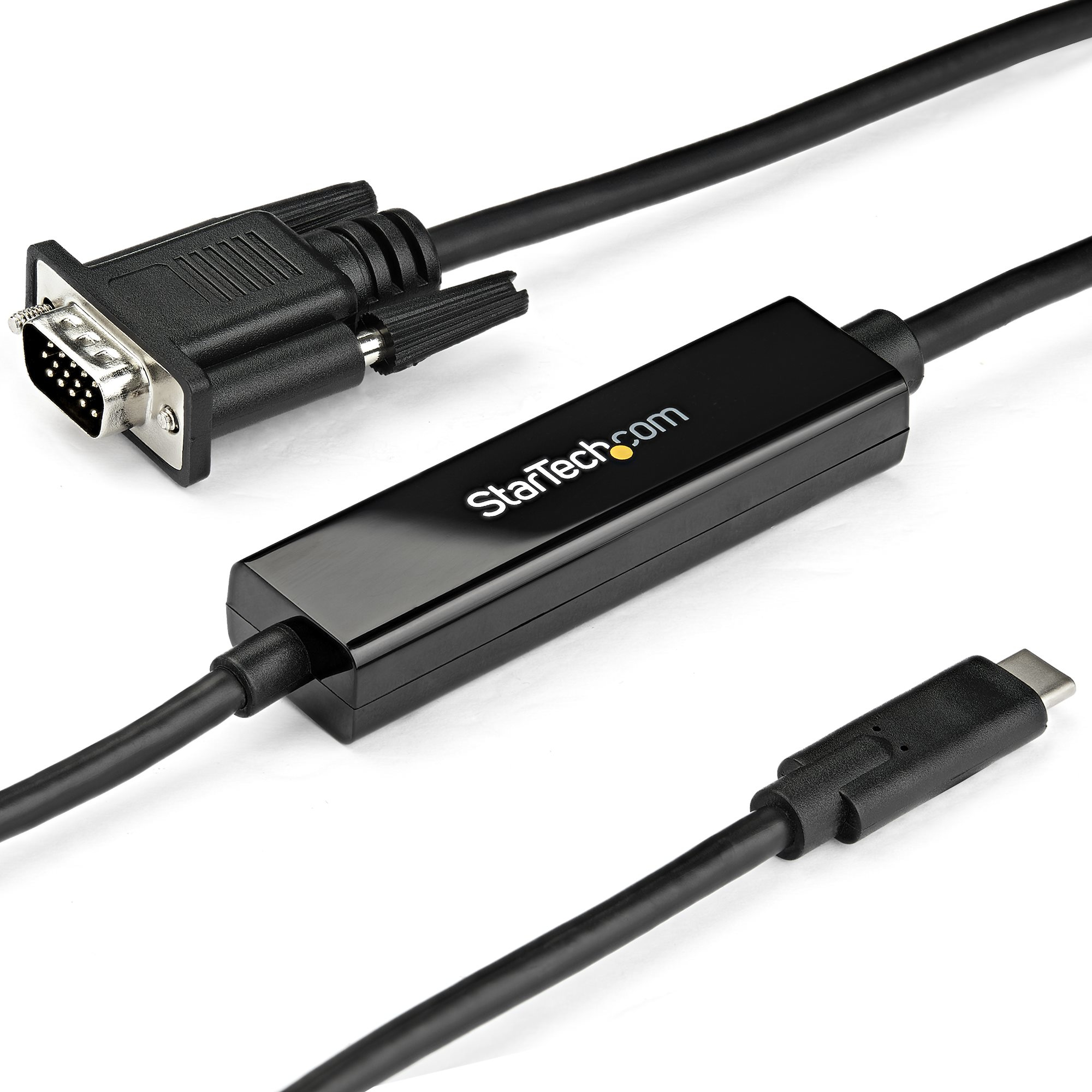

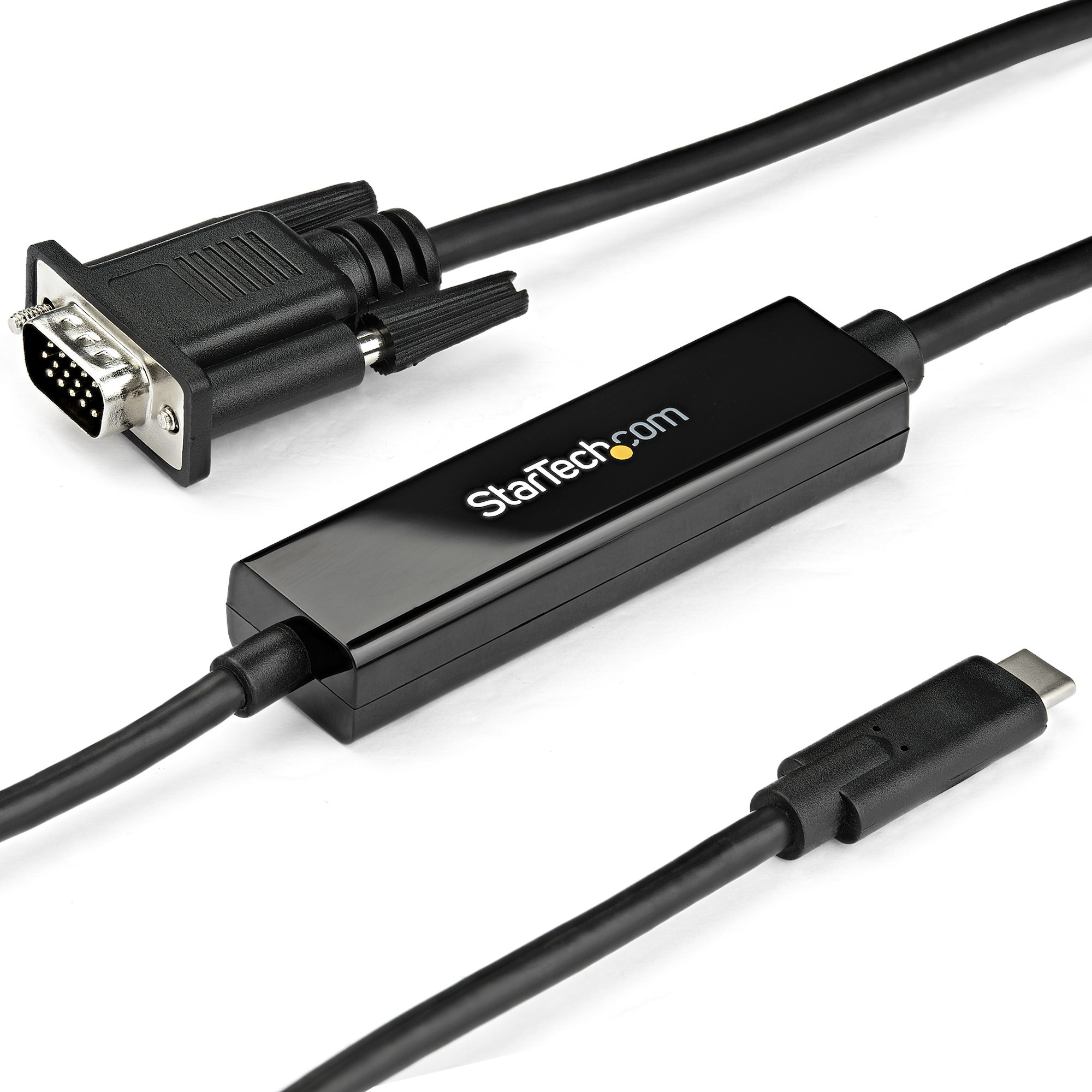

StarTech.com 1M (3 FT.) USB-C TO VGA ADAPTER CABLE
USB-C TO VGA ADAPTER CABLE - 1M (3 FT.) - 1920X1200
- Brand: StarTech.com
- Category: Cables & Connectivity
- SKU: 3418939
- MPN: CDP2VGAMM1MB
StarTech.com 3ft/1m USB C to VGA Cable - 1920x1200/1080p USB Type C…
StarTech.com 3ft/1m USB C to VGA Cable - 1920x1200/1080p USB Type C to VGA Video Active Adapter Cable - Thunderbolt 3 Compatible - Laptop to VGA Monitor/Projector - DP Alt Mode HBR2, 1 m, USB Type-C, VGA (D-Sub), Male, Male, Straight
Click or hover over image to enlarge
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Cable length
1 m
Connector 1
USB Type-C
Connector 2
VGA (D-Sub)
Connector 1 gender
Male
Connector 2 gender
Male
DisplayPort version
1.2
Comsys Price
In Stock
6 units available
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $6.32 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com 1M (3 FT.) USB-C TO VGA ADAPTER CABLE
This USB-C to VGA cable lets you connect your Thunderbolt 3 or USB Type-C enabled device to your computer monitor with just one cable, providing you with a convenient, clutter-free solution.
Astonishing Picture Quality
The USB-C to VGA adapter cable lets you harness the video capabilities that are built into your computer's USB-C connection, to deliver astonishing resolutions up to 1920 x 1200.
Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other work environments.
Clutter-Free Installation
At 3.3 ft. (1 m) in length, this computer monitor cable delivers a compact connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For longer installations, we also offer a 6.6 ft. (2 m) (CDP2VGAMM2MB) and a 9.8 ft. (3 m) (CDP2VGA3MBNL) USB-C to VGA cable, enabling you to choose the right cable length for your custom installation needs.
Hassle-Free Connection
The reversible USB-C connector offers an easy and convenient connection. To ensure an easy operation and installation, this USB-C to VGA cable works with both Windows and Mac computers and supports plug-and-play installation.
CDP2VGAMM1MB is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note: Your USB-C port must support DisplayPort over USB-C (DP Alt Mode) in order to work with this adapter.
The StarTech.com Advantage
Key features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Cable length: 1 m
- Connector 1: USB Type-C
- Connector 2: VGA (D-Sub)
- Connector 1 gender: Male
- Connector 2 gender: Male
- DisplayPort version: 1.2
- Maximum resolution: 1920 x 1200 pixels
- Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
- Supported video modes: 720p, 1080p
- HBR2 support: Yes
- Product colour: Black
- Chipset: Via Labs - VL103, NXP - PTN3355
- Plug and Play: Yes
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -10 - 80 °C
- Operating relative humidity (H-H): 5 - 90%
- Compliance certificates: CE, RoHS
- Weight: 93 g
- Width: 35 mm
- Depth: 1000 mm
- Height: 15 mm
- Package width: 125 mm
- Package depth: 225 mm
- Package height: 10 mm
- Package weight: 99 g
- Quantity per pack: 1 pc(s)
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 320 mm
+ 3 more — see the Specifications tab.
Inc GST
$25.29
