STARTECH.COM 24 PORT CAT6 PATCH PANEL - 110 TYPE RACK MOUNT PATCH PANEL 1U 2 YR
Cables & Connectivity > Network Cables
- Brand: STARTECH
- Category: Networking
- SKU: C6PANEL24
- MPN: C6PANEL24

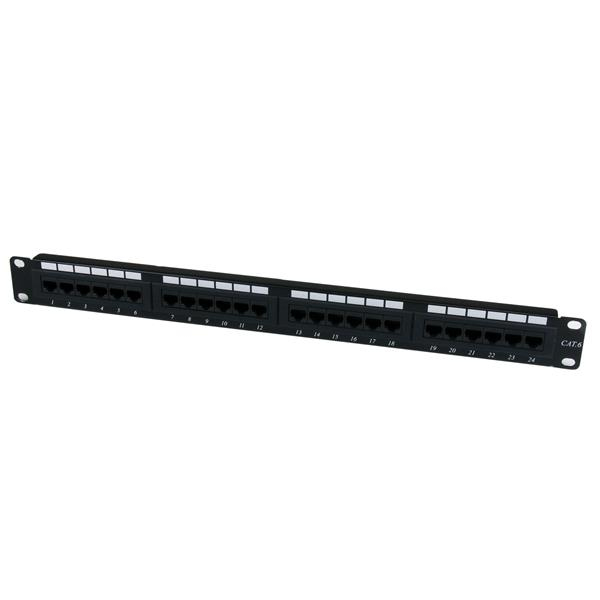

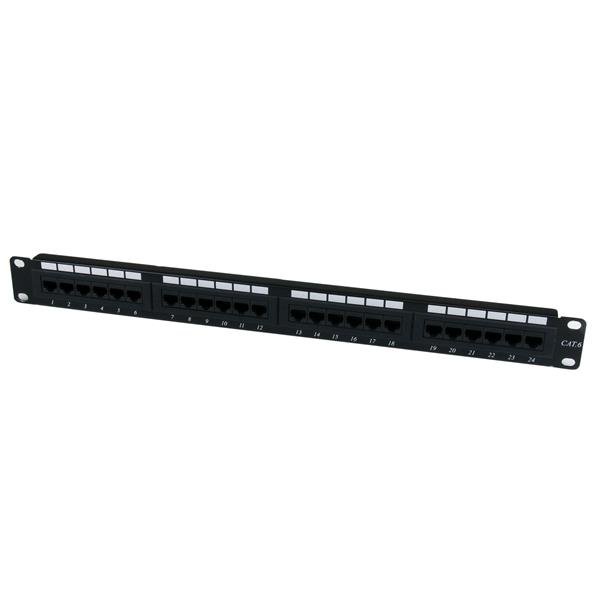

StarTech.com 24 Port 1U Rackmount Cat 6 110 Patch Panel
StarTech.com 24 Port 1U Rackmount Cat 6 110 Patch Panel, RJ-45, Rack mounting, 1U, Black, RoHS, CE, ETl, UL
Click or hover over image to enlarge
Product colour
Black
Mounting
Rack mounting
Rack capacity
1U
Ports quantity
24
Connector(s)
RJ-45
Compliance certificates
RoHS
Certification
CE, ETl, UL
Harmonized System (HS) code
85371098
Comsys Price
Save $32.22 off RRP
In Stock
12 units available
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $40.54 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM 24 PORT CAT6 PATCH PANEL - 110 TYPE RACK MOUNT PATCH PANEL 1U 2 YR
The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.
For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables. The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com’s 2-year warranty.
The StarTech.com Advantage
- Organize up to 24 Cat6 patch cables
- Clearly numbered RJ45 ports make it easy to identify your cable runs
- Label each cable run on the writable / erasable marking surface of each port located on the front of the panel for efficient system management
Key features
- Ports quantity: 24
- Connector(s): RJ-45
- Product colour: Black
- Mounting: Rack mounting
- Rack capacity: 1U
- Compliance certificates: RoHS
- Certification: CE, ETl, UL
- Operating temperature (T-T): -10 - 60 °C
- Operating relative humidity (H-H): 10 - 65%
- Width: 483 mm
- Height: 34 mm
- Depth: 44 mm
- Weight: 581 g
- Package width: 55 mm
- Package depth: 490 mm
- Package height: 45 mm
- Package weight: 678 g
- Harmonized System (HS) code: 85371098
Inc GST
$162.14
