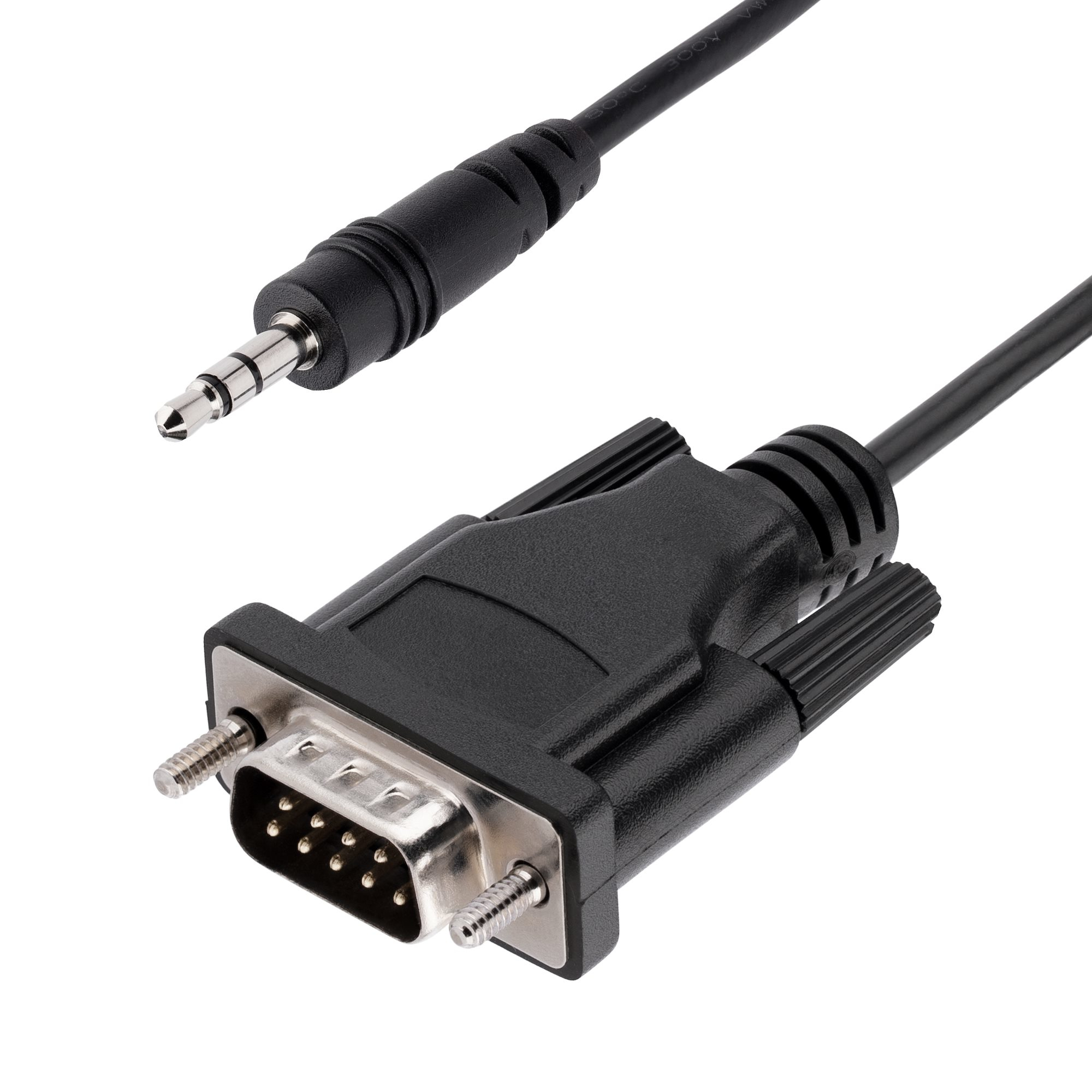

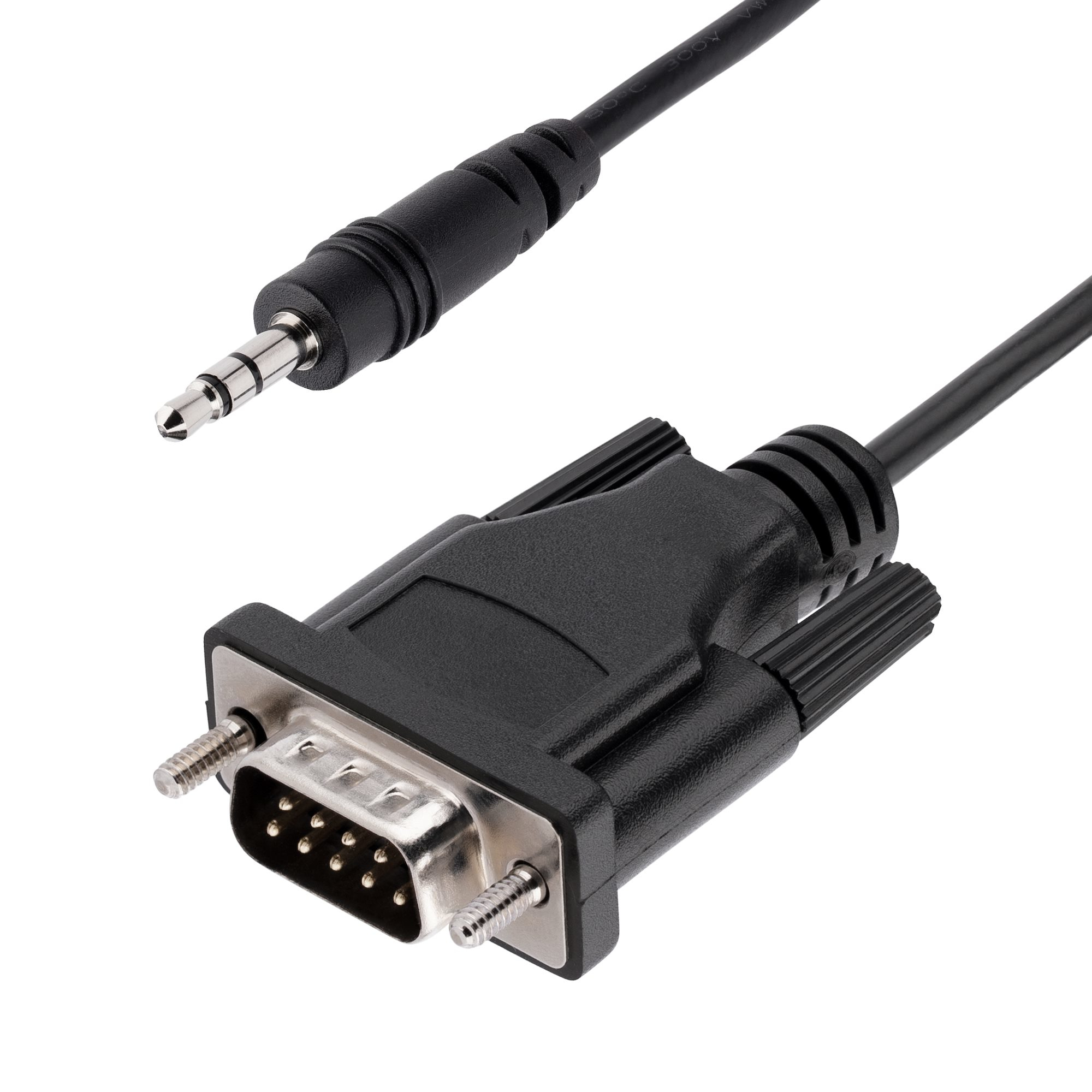

StarTech.com 3ft DB9 to 3.5mm Serial Cable RS232
3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors Digital Signage TVs via Audio Jack
- Brand: StarTech.com
- Category: Cables & Connectivity
- SKU: 5678876
- MPN: 9M351M-RS232-CABLE
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device…
Available On OrderAsk us for ETA
$40.24
Inclusive of GST
1
4 payments of $10.06Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-IM-042547
- MPN:
- 9M351M-RS232-CABLE
- Brand:
- StarTech.com
We accept
TechWorld Deal
Genuine NZ stock with full manufacturer warranty — no parallel imports. Hardware only, priced sharp, dispatched fast.
StarTech.com 3ft DB9 to 3.5mm Serial Cable RS232
Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control
This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Key features
- Connector 1: DB-9
- Connector 2: 3.5mm
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Cable length: 1 m
- Product colour: Black
- Cable jacket material: Polyvinyl chloride (PVC)
- AWG wire size: 28
- Operating temperature (T-T): -20 - 60 °C
- Storage temperature (T-T): -20 - 60 °C
- Relative humidity: 30 - 75%
- Compliance certificates: RoHS
- Sustainability compliance: Yes
- Package width: 128 mm
- Package depth: 220 mm
- Package height: 10 mm
- Package weight: 23 g
- Cable diameter: 3.5 mm
- Products per master (outer) case: 200 pc(s)
- Master (outer) case width: 388 mm
- Master (outer) case length: 340 mm
- Master (outer) case height: 310 mm
