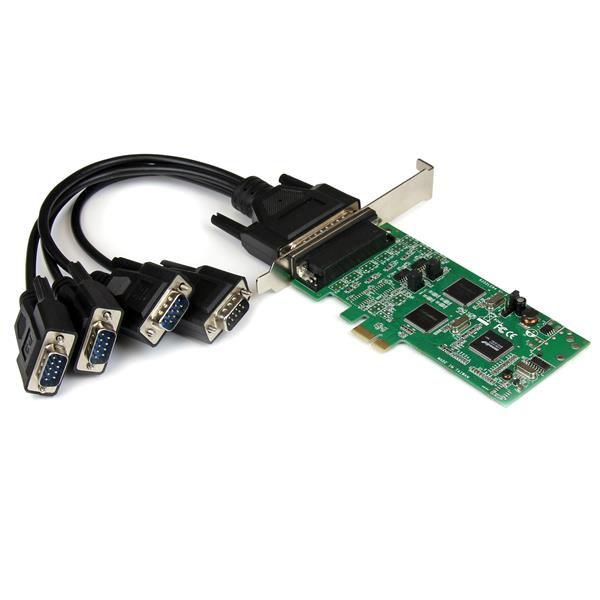

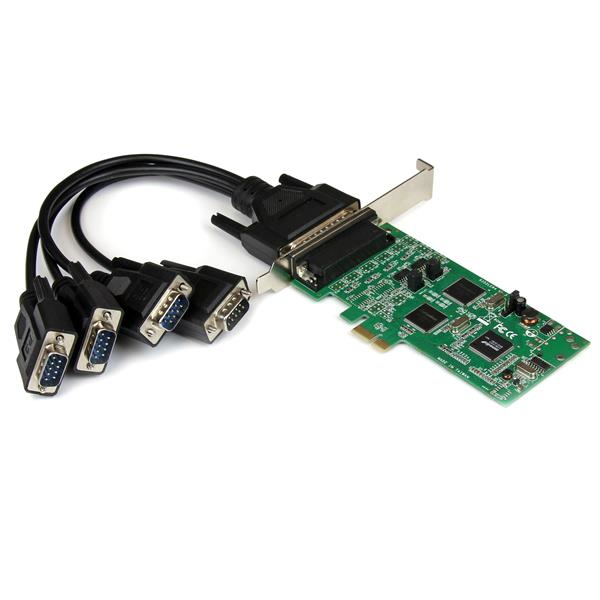

StarTech.com 4 Port RS232/422/485 PCIe Serial Card

4 Port PCI Express Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - Dual Profile PCIe Serial Card Adapter with Breakout Cable

  • Brand: StarTech.com
  • Category: Network Cards
  • SKU: 2350805
  • MPN: PEX4S232485

StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2…

StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485, PCIe, Serial, RS-232/422/485, SystemBase SB16C1052PCI, 256 B, 0 - 100 °C

StarTech.com 4 Port RS232/422/485 PCIe Serial Card

Click or hover over image to enlarge

Brand:StarTech.com
MPN:2350805

Part #: 2350805

Search this part on Google

Internal

Yes

Chipset

SystemBase SB16C1052PCI

FIFO (First In, First Out)

256 B

Harmonized System (HS) code

84733020

Data transfer rate

0.4608 Mbit/s

Connectivity technology

Wired

User guide

Yes

Package width

146 mm

Returns & Warranty

Comsys Price

$323.14
On Sale

Save $70.57 off RRP

Only 3 left in stock

Order soon to avoid backorder

NZ-wide deliveryShips from Auckland · 1–3 days
1
Afterpay4 payments of $80.79
100% NZ Owned & OperatedCall 0800 664 554

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay — pay it in 4 interest-free instalments
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

StarTech.com 4 Port RS232/422/485 PCIe Serial Card

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.

This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- This single PCI Express combo card is compatible with any serial device protocol (RS232, RS422, and RS485), allowing for communication with multiple devices over mixed protocols
- Includes both low profile/half-height and full profile brackets to ensure fitment into a broad range of system form factors
- The included breakout cable saves expense as an all-in-one solution, and allows the addition of multiple serial ports through a single PCI Express slot

Key features

  • Host interface: PCIe
  • Output interface: Serial
  • Serial ports quantity: 4
  • Serial interface type: RS-232/422/485
  • Internal: Yes
  • Chipset: SystemBase SB16C1052PCI
  • FIFO (First In, First Out): 256 B
  • Operating temperature (T-T): 0 - 100 °C
  • Storage temperature (T-T): 0 - 150 °C
  • Operating relative humidity (H-H): 20 - 80%
  • Windows operating systems supported: Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
  • Linux operating systems supported: Yes
  • Compliance certificates: RoHS
  • Width: 125 mm
  • Depth: 70 mm
  • Height: 20 mm
  • Weight: 67.4 g
  • User guide: Yes
  • Package width: 146 mm
  • Package depth: 210 mm
  • Package height: 41 mm
  • Package weight: 390 g
  • Harmonized System (HS) code: 84733020
  • Data transfer rate: 0.4608 Mbit/s
  • Connectivity technology: Wired
