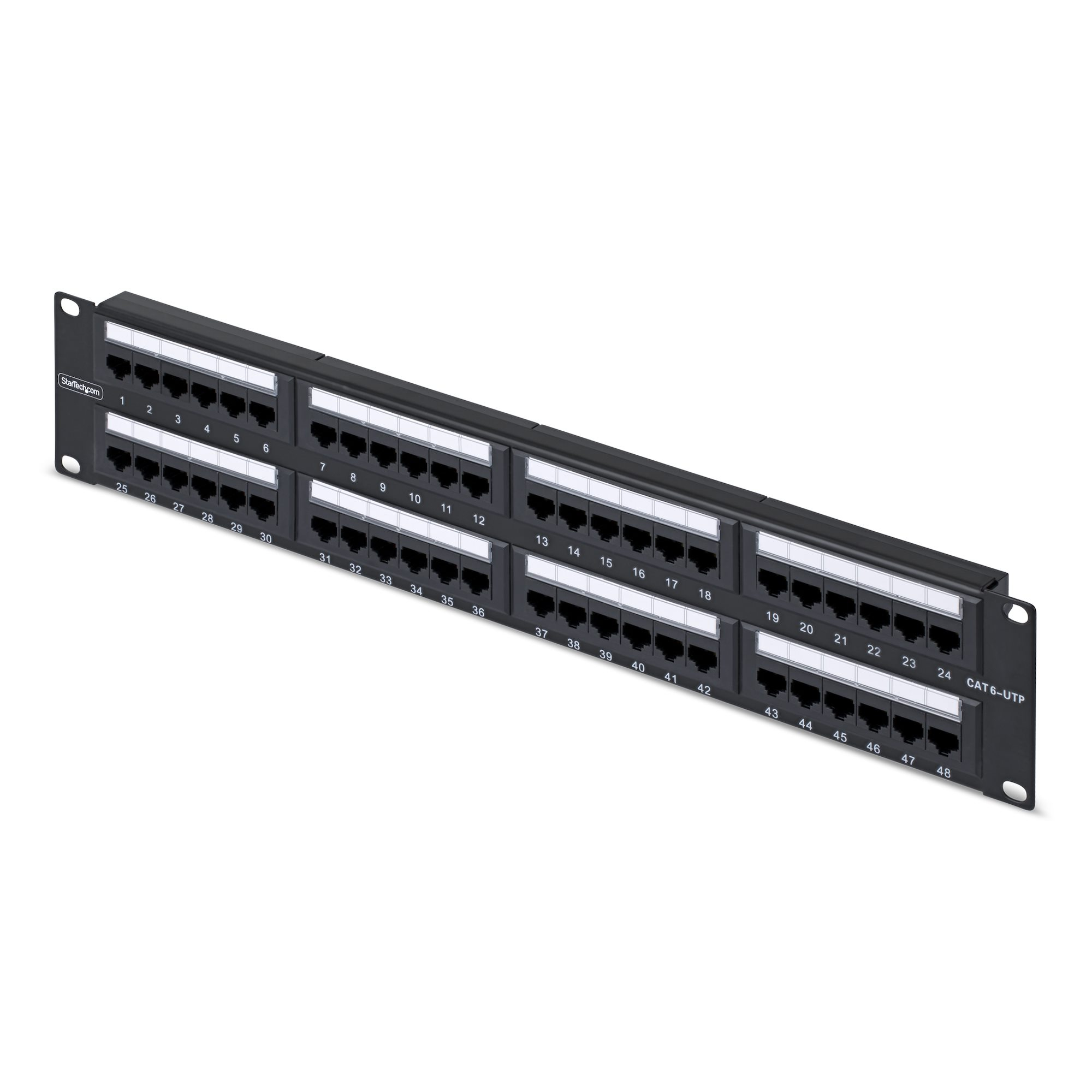

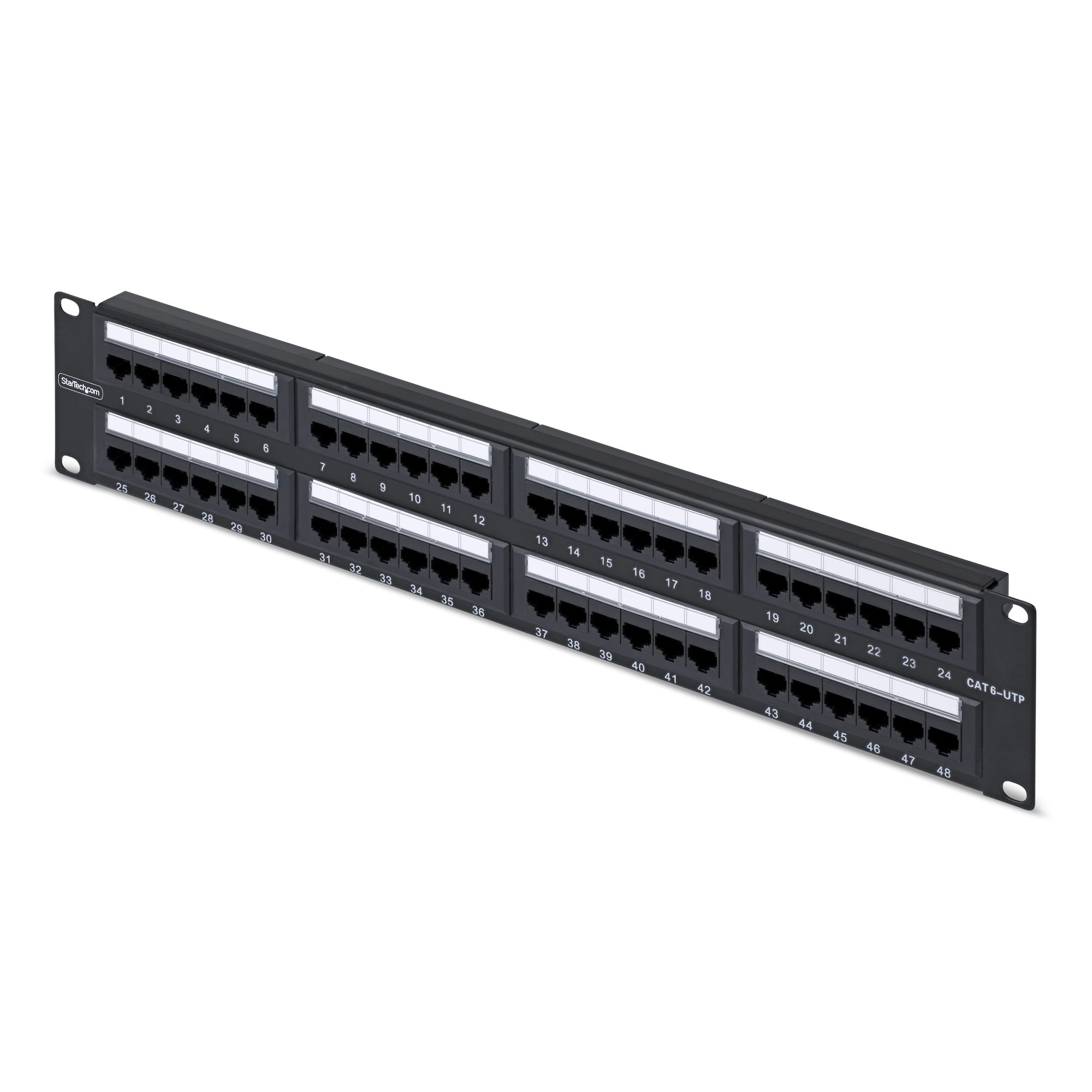

STARTECH.COM 48-PORT 2U RACKMOUNT CAT6 PATCH PANEL, RJ45, UTP, 110 TYPE, 2 YR
Networking > Network Accessories
- Brand: STARTECH
- Category: Networking
- SKU: CPANEL48
- MPN: CPANEL48
StarTech.com 48-Port 2U Rackmount Cat6 Patch Panel, RJ45, UTP, 110…
StarTech.com 48-Port 2U Rackmount Cat6 Patch Panel, RJ45, UTP, 110 Punch-Down, Cat 6 Ethernet Patch Panel for Network Server Rack, 10/100/1000Base-T(X), Fast Ethernet, Gigabit Ethernet, 1000 Mbit/s, RJ-45, Cat6, U/UTP (UTP)
Click or hover over image to enlarge
Product colour
Black
Material
Steel
Mounting
Rack mounting
Rack capacity
2U
Cabling technology
10/100/1000Base-T(X)
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Maximum data transfer rate
1000 Mbit/s
Ports quantity
48
Comsys Price
Save $40.00 off RRP
In Stock
10 units available
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $53.47 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM 48-PORT 2U RACKMOUNT CAT6 PATCH PANEL, RJ45, UTP, 110 TYPE, 2 YR
This 48-Port 2U Cat6 Patch Panel provides a reliable way to route and manage Ethernet connections in rack-mounted network setups. It's designed for high-density environments like data centers and server rooms, where structured cable management and long-term performance are critical.
Structured Connectivity
The 2U network patch panel features clearly numbered RJ45 ports and color-coded 110 punch-down blocks that support both T568A and T568B wiring. The intuitive layout helps simplify installation, keeps cable paths organized, and facilitates accurate fault isolation when troubleshooting.
Durable Construction
A robust steel housing with a black powder-coated finish protects the rackmount patch panel in demanding environments. Gold-plated contacts ensure lasting signal integrity, and 110 punch-down terminals facilitate secure, fixed cable connections for stable Ethernet performance.
Key features
- Cabling technology: 10/100/1000Base-T(X)
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Maximum data transfer rate: 1000 Mbit/s
- Ports quantity: 48
- Connector(s): RJ-45
- Cable types supported: Cat6
- Cable shielding: U/UTP (UTP)
- Product colour: Black
- Material: Steel
- Mounting: Rack mounting
- Rack capacity: 2U
- Compliance certificates: RoHS
- Operating temperature (T-T): 0 - 70 °C
- Operating relative humidity (H-H): 0 - 50%
- Storage temperature (T-T): -40 - 85 °C
- Width: 89 mm
- Height: 34 mm
- Depth: 483 mm
- Weight: 980 g
- Quick start guide: Yes
- Package width: 515 mm
- Package depth: 120 mm
- Package height: 75 mm
- Package weight: 1.5 kg
- Master (outer) case width: 530 mm
- Master (outer) case length: 400 mm
- Master (outer) case height: 260 mm
- Products per master (outer) case: 10 pc(s)
Inc GST
$213.89
