STARTECH.COM DUAL-SLOT M.2 TO SATA ADAPTER - M.2 ADAPTER - RAID 2 YR
STARTECH.COM DUAL-SLOT M.2 TO SATA ADAPTER - M.2 ADAPTER - RAID 2 YR
- Brand: STARTECH
- Category: Solid State Drives (SSD)
- SKU: S322M225R
- MPN: S322M225R
StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2…
Out of Stock
Contact us for pricing
Sales will confirm current pricing and availability
Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-DD-041709
- MPN:
- S322M225R
- Brand:
- STARTECH
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Hardware only, priced sharp, dispatched fast.
STARTECH.COM DUAL-SLOT M.2 TO SATA ADAPTER - M.2 ADAPTER - RAID 2 YR

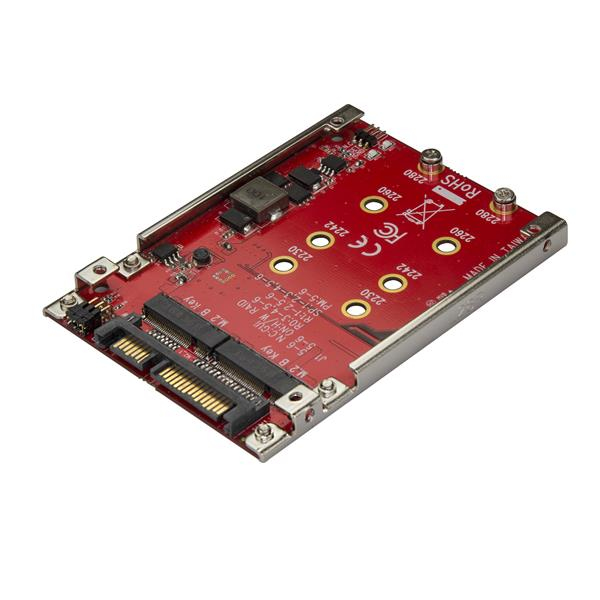

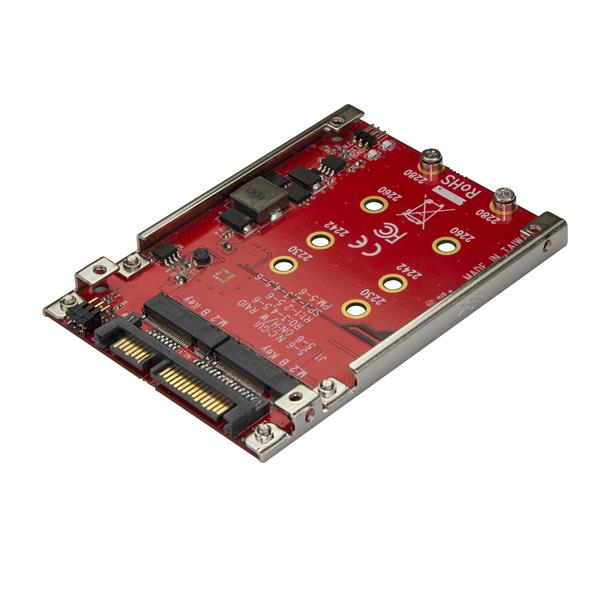

Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5” SATA interface
Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5” drive bay, and increase your storage options by configuring a powerful RAID array.
Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.
Maximize file transfer speeds
The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.
Easy installation
This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly.
The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5” drive bay, and increase your storage options by configuring a powerful RAID array.
Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.
Maximize file transfer speeds
The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.
Easy installation
This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly.
The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key features
- Host interface: SATA
- Output interface: M.2
- SATA revision: 3.0
- Number of M.2 (B) slots: 2
- Number of SSDs supported: 2
- Port multiplier: Yes
- Internal: Yes
- Product colour: Red
- Hot-swap: No
- Easy to install: Yes
- Certification: CE, FCC, REACH, TAA
- Chipset: ASMedia - ASM1092R
- Data transfer rate (max): 6 Gbit/s
- S.M.A.R.T. support: Yes
- TRIM support: Yes
- RAID levels: 0, 1, BIG, JBOD
- Plug and Play: Yes
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 15 - 90%
- Compliance certificates: RoHS
- Width: 70 mm
- Depth: 100 mm
- Height: 7 mm
- Weight: 41 g
- Mounting brackets included: Yes
- Screws included: Yes
- Quick installation guide: Yes
- Package width: 172 mm
- Package depth: 142 mm
