STARTECH.COM M.2 TO U.3 ADAPTER, PCIE M.2 SSD TO 2.5INCH U.3 HOST CONVERTER, 2 YR
Servers & Storage > Servers & Storage
- Brand: STARTECH
- Category: Servers & Storage
- SKU: 1M25-U3-M2-ADAPTER
- MPN: 1M25-U3-M2-ADAPTER
StarTech.com 1M25-U3-M2-ADAPTER interface cards/adapter Internal M.2
StarTech.com 1M25-U3-M2-ADAPTER, U.3, M.2, Red, PC, 12368734 h, 3.3 V
Click or hover over image to enlarge
Output voltage
3.3 V
Output current
5 A
Internal
Yes
Product colour
Red
Purpose
PC
Mean time between failures (MTBF)
12368734 h
S.M.A.R.T. support
Yes
Plug and Play
Yes
Comsys Price
Save $16.12 off RRP
Available to Order
Ships in 1–5 business days
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 68 Plunket Avenue, Papatoetoe, Auckland 2104
Four payments of $20.41 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM M.2 TO U.3 ADAPTER, PCIE M.2 SSD TO 2.5INCH U.3 HOST CONVERTER, 2 YR

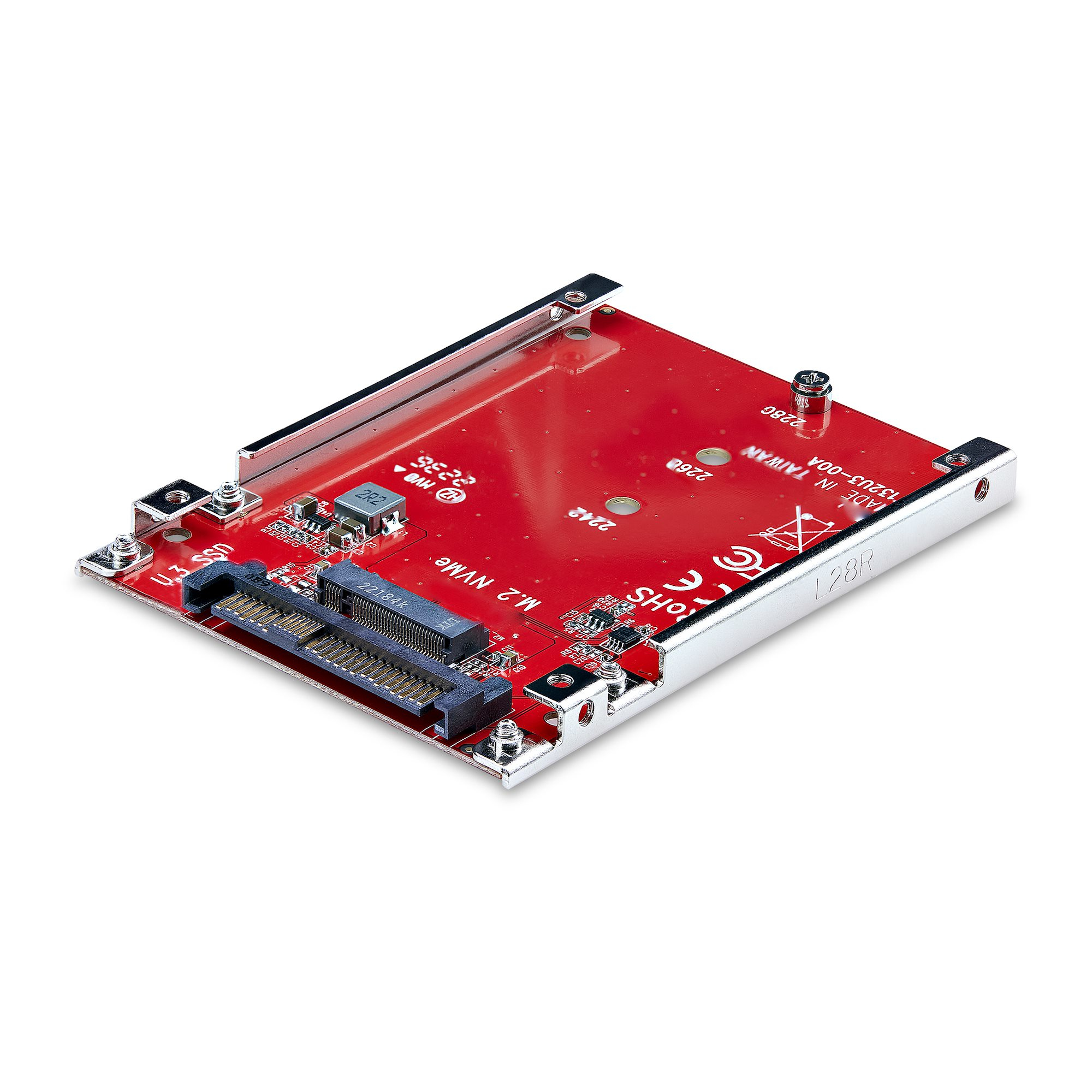

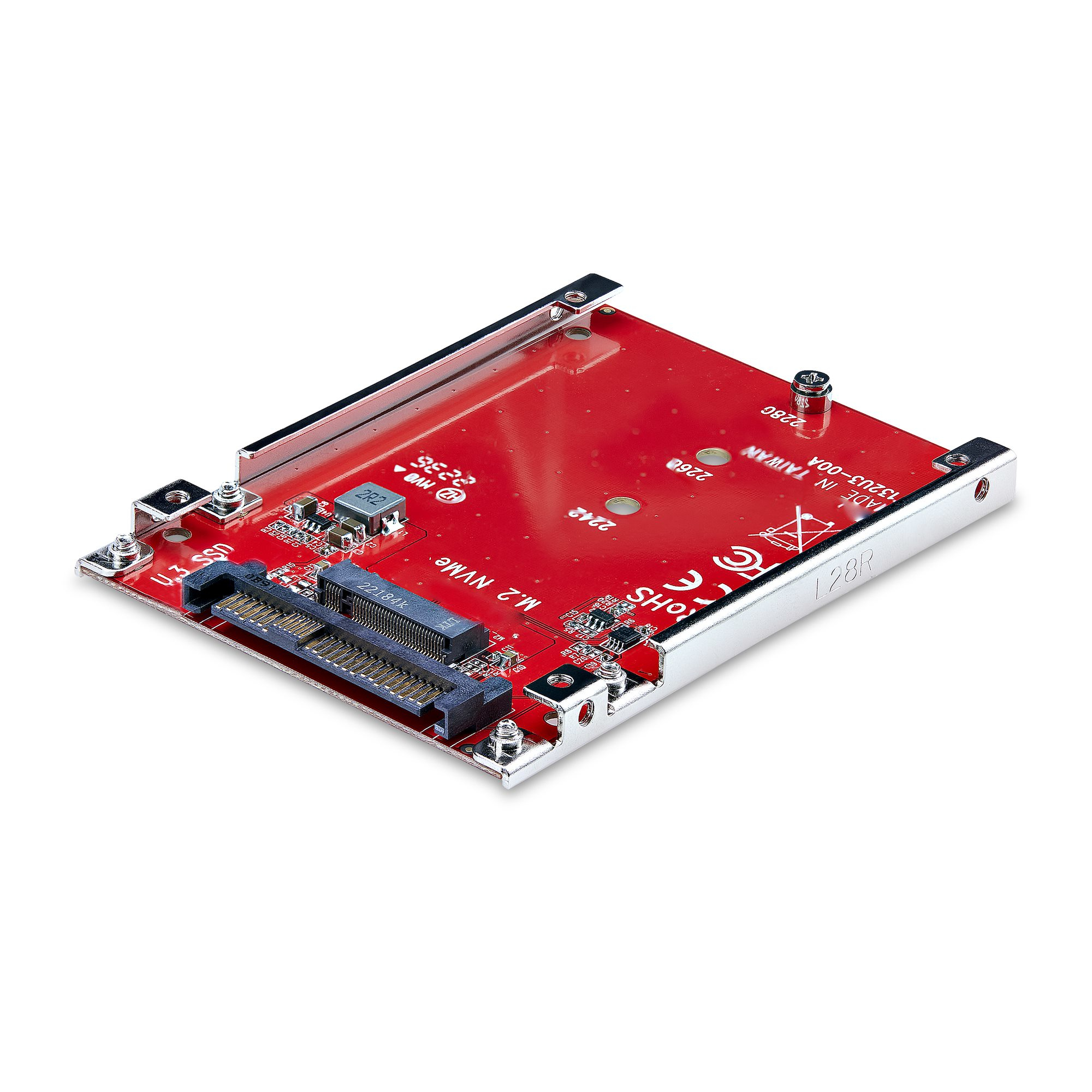

Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in a U.3 drive bay or backplane.
Adapt While Retaining Performance
Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while maintaining PCIe Gen 4 read and write speeds. This adapter has been designed with no chipset to maintain performance when adapting an M.2 drive to a 2.5-inch form factor.
Hassle-Free Setup
The M.2 to U.3 Host Adapter is compatible with all operating systems, including Windows, macOS, and Linux. No additional drivers or software for installation and operation. The adapter includes M.2 drive and U.3 adapter mounting hardware.
Compatibility
The M.2 to U.3 Host Adapter is backward compatible with earlier versions of M.2 PCIe NVMe drives. It is not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host interfaces.
The StarTech.com Advantage
Key features
- Host interface: U.3
- Output interface: M.2
- Internal: Yes
- Product colour: Red
- Purpose: PC
- Mean time between failures (MTBF): 12368734 h
- S.M.A.R.T. support: Yes
- Plug and Play: Yes
- Output voltage: 3.3 V
- Output current: 5 A
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 15 - 90%
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
- Sustainability compliance: Yes
- Compliance certificates: RoHS, Trade Agreements Act (TAA)
- Width: 70 mm
- Depth: 100 mm
- Height: 7 mm
- Weight: 37 g
- Quick installation guide: Yes
- Package width: 142 mm
- Package depth: 175 mm
- Package height: 30 mm
- Package weight: 100 g
- Products per master (outer) case: 60 pc(s)
- Master (outer) case width: 490 mm
- Master (outer) case length: 381 mm
+ 1 more — see the Specifications tab.
