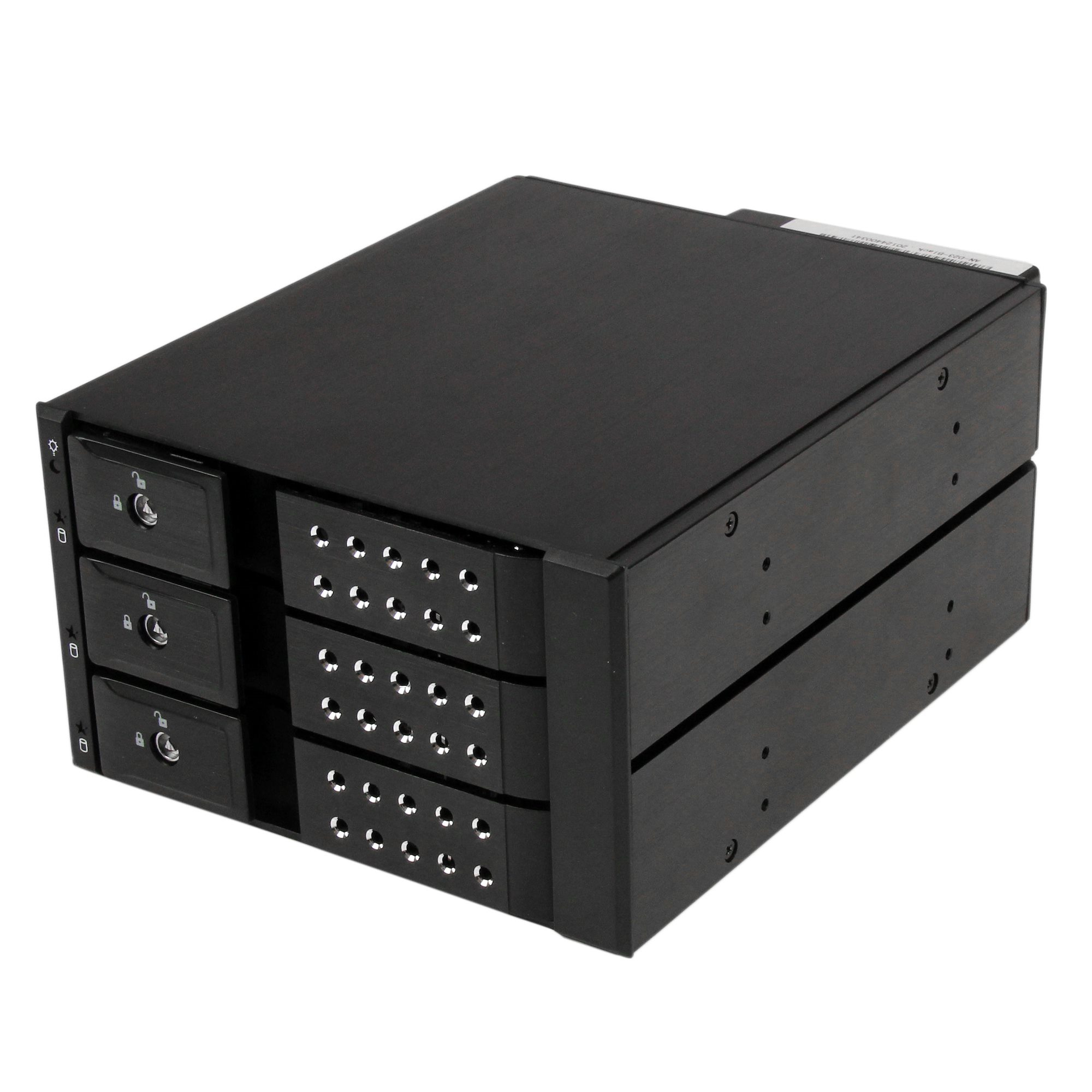

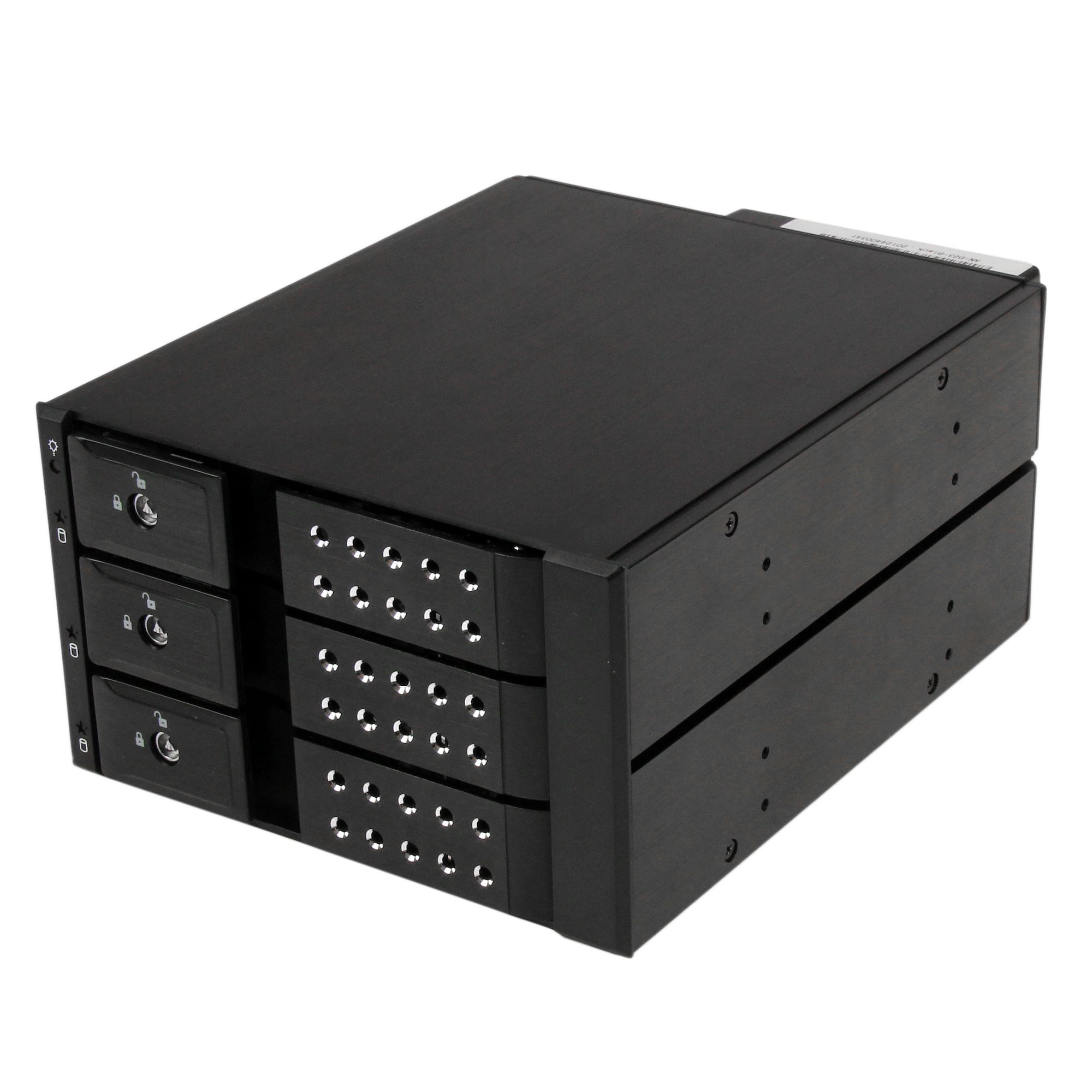

StarTech.com Mob Rack Backplane 3.5in SAS II/SATA III

3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS IISATA III 6 Gbps HDD

  • Brand: StarTech.com
  • Category: Drive Enclosures
  • SKU: 2560922
  • MPN: HSB3SATSASBA

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane…

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD, 0 TB, Serial ATA, Serial ATA II, Serial ATA III, 3.5", 1.2 kg, Black

StarTech.com Mob Rack Backplane 3.5in SAS II/SATA III

Click or hover over image to enlarge

Brand:StarTech.com
MPN:2560922

Part #: 2560922

Search this part on Google

Internal

No

Product colour

Black

LED indicators

Activity, Power

Number of fans

1 fan(s)

Storage drives installed

No

Installed storage drive type

No

Total installed storage capacity

0 TB

Supported storage drive types

HDD

Returns & Warranty

Comsys Price

$197.79
On Sale

Save $36.07 off RRP

Only 9 left in stock

Order soon to avoid backorder

NZ-wide deliveryShips from Auckland · 1–3 days
1
Afterpay4 payments of $49.45
100% NZ Owned & OperatedCall 0800 664 554

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay — pay it in 4 interest-free instalments
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

StarTech.com Mob Rack Backplane 3.5in SAS II/SATA III

Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

  • Storage drives installed: No
  • Installed storage drive type: No
  • Total installed storage capacity: 0 TB
  • Supported storage drive types: HDD
  • Number of storage drives supported: 3
  • Maximum supported storage capacity: 12 TB
  • Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III
  • Storage drive size: 3.5"
  • Data transfer rate: 6 Gbit/s
  • Hot-swap drive bays: Yes
  • Host ports: 3
  • SATA host port: Yes
  • Number of SATA power connectors: 2
  • SATA power connector type: SATA 15-pin
  • Internal: No
  • Product colour: Black
  • LED indicators: Activity, Power
  • Number of fans: 1 fan(s)
  • Backplanes support: Yes
  • Width: 145 mm
  • Depth: 194.1 mm
  • Height: 110 mm
  • Weight: 1.2 kg
  • Package width: 179 mm
  • Package depth: 253 mm
  • Package height: 123 mm
  • Package weight: 1.2 kg
  • Cables included: SATA
  • Operating temperature (T-T): 0 - 55 °C
  • Operating relative humidity (H-H): 5 - 85%

+ 7 more — see the Specifications tab.
