StarTech.com MSA Compliant 100Base-BX SFP (Upstream)

MSA Compliant 100Base-BX SFP (Upstream) - 100 Mbps Fiber SFP Module w/ DDM / DOM - Single-mode SFP LC - 10km /6.2 mi - 1310nmTx/1550nmRx - Lifetime Warranty - SFP Transceiver

  • Brand: StarTech.com
  • Category: Network Accessories
  • SKU: 3720858
  • MPN: SFP100BBXUST
StarTech.com MSA Compliant 100Base-BX SFP (Upstream) — StarTech.com — Networking > Network Accessories

StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-BX~MSA…

Available On OrderAsk us for ETA
$41.39

Inclusive of GST

1
Afterpay4 payments of $10.35
Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

SKU:
CNZ-IM-021531
MPN:
SFP100BBXUST
Brand:
StarTech.com

Ask Our Experts:

Ask a question about this item Request a price match
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
TechWorld Deal

Genuine NZ stock with full manufacturer warranty — no parallel imports. Hardware only, priced sharp, dispatched fast.

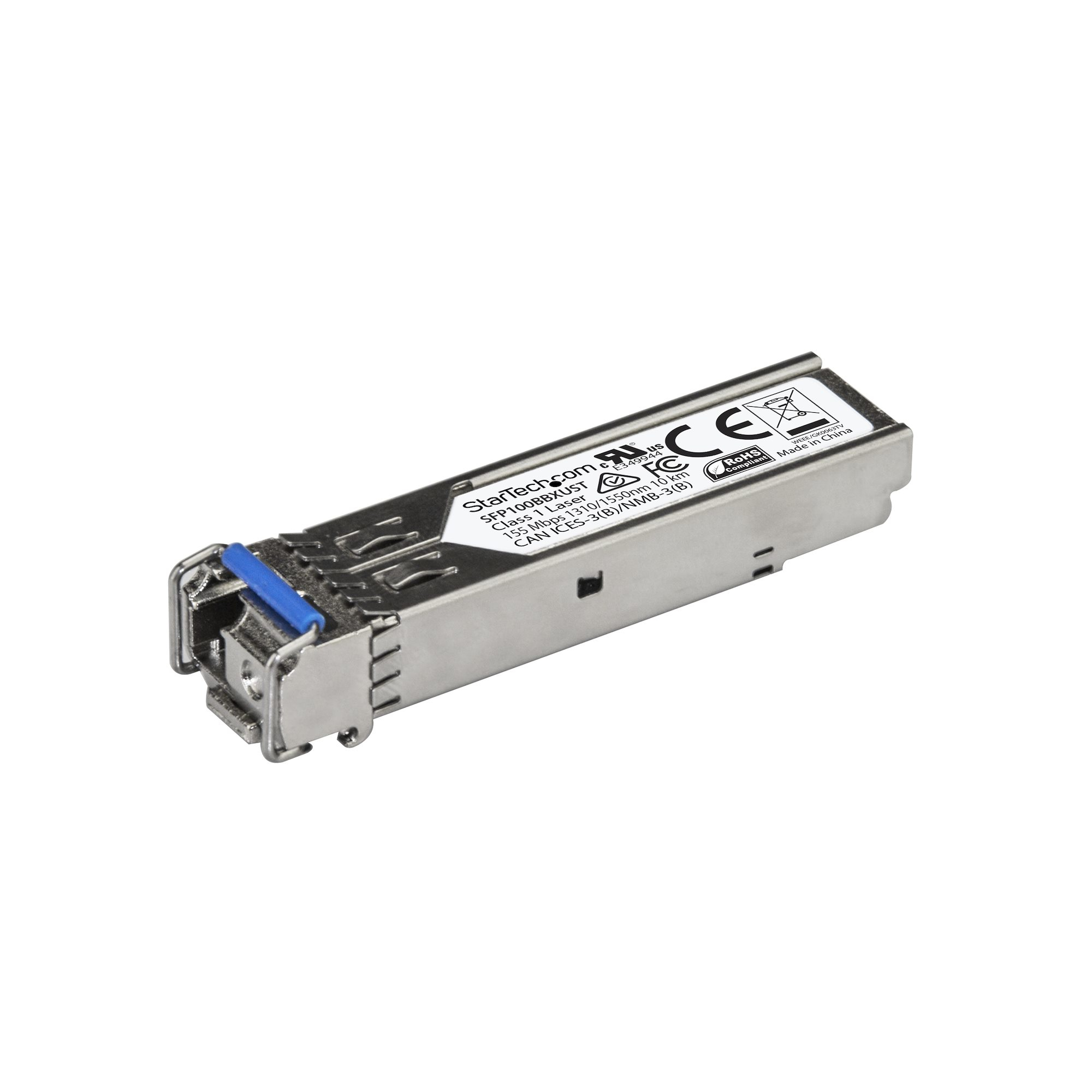

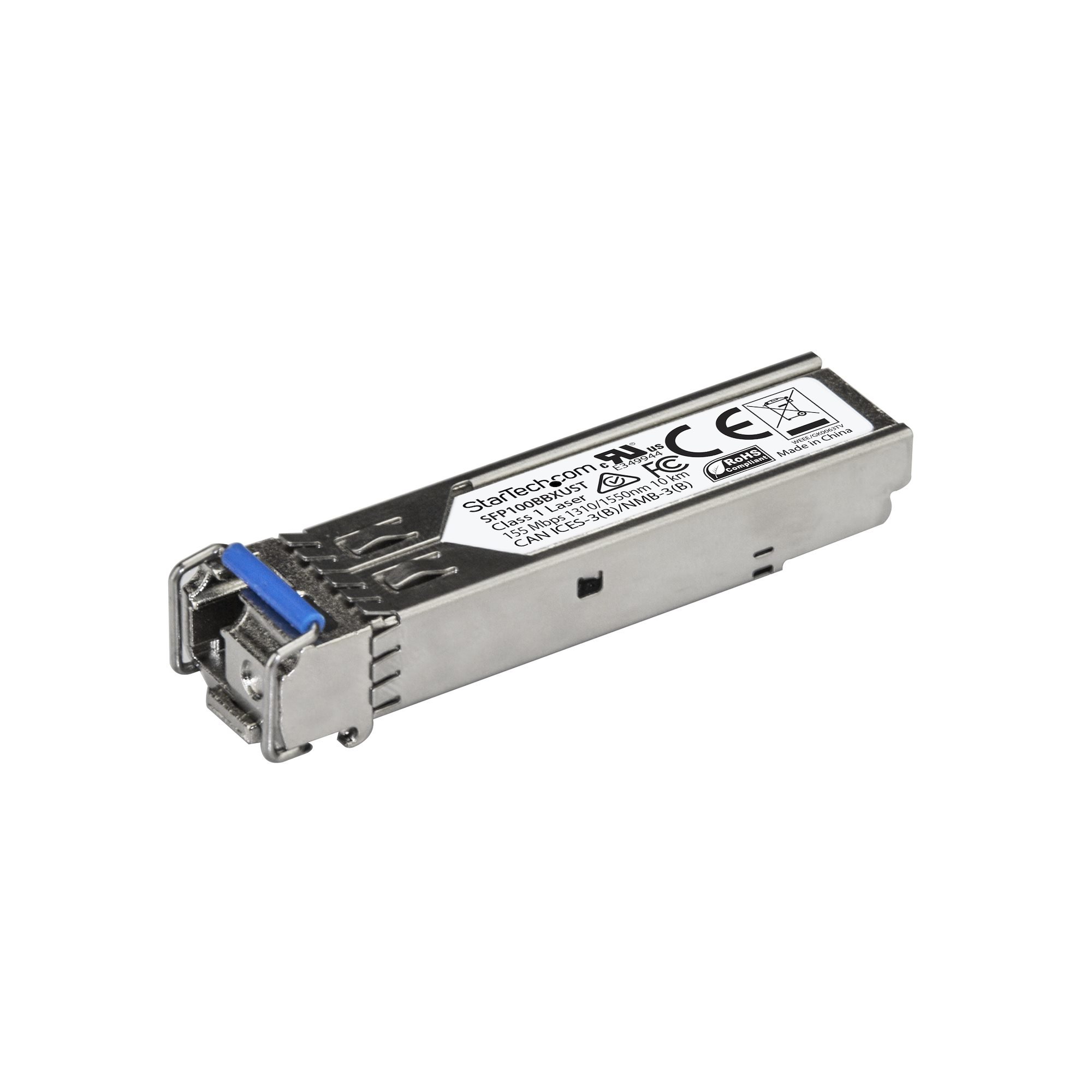

StarTech.com MSA Compliant 100Base-BX SFP (Upstream)

100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP100BBXUST is an MSA compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXDST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mbps connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1310nmTx/1550nmRx
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Key features

  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 155 Mbit/s
  • Interface type: SFP
  • Single-mode fiber (SMF) supported: Yes
  • Fiber optic connector: LC
  • SFP transceiver standard: BX
  • Maximum transfer distance: 10000 m
  • Tx wavelength (min): 1310 nm
  • Rx wavelength (min): 1550 nm
  • Networking standards: IEEE 802.3u
  • Duplex system: Full, Half
  • Digital Diagnostics Monitoring (DDM): Yes
  • Wavelength-division multiplexing (WDM): Yes
  • Product colour: Silver
  • Housing material: Aluminium
  • Hot-Plug support: Yes
  • Power consumption (typical): 1 W
  • Compliance certificates: RoHS
  • Certification: CE, FCC, UR
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Width: 16 mm
  • Depth: 60 mm
  • Height: 11 mm
  • Weight: 18 g
  • Quantity per pack: 1 pc(s)
  • Package width: 92 mm
  • Package depth: 117 mm
  • Package height: 30 mm
