STARTECH.COM QUAD PORT PCI SUPERSPEED USB 3 CONTROLLER CARD WITH SATA POWER LTW
STARTECH.COM QUAD PORT PCI SUPERSPEED USB 3 CONTROLLER CARD WITH SATA POWER LTW
- Brand: STARTECH
- Category: Peripherals
- SKU: PCIUSB3S4
- MPN: PCIUSB3S4
StarTech.com 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA /…
Out of Stock
Contact us for pricing
Sales will confirm current pricing and availability
Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-DD-040335
- MPN:
- PCIUSB3S4
- Brand:
- STARTECH
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Hardware only, priced sharp, dispatched fast.
STARTECH.COM QUAD PORT PCI SUPERSPEED USB 3 CONTROLLER CARD WITH SATA POWER LTW

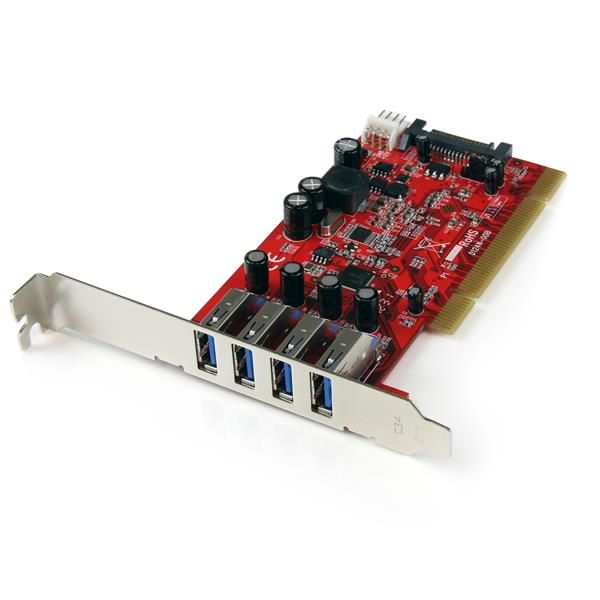

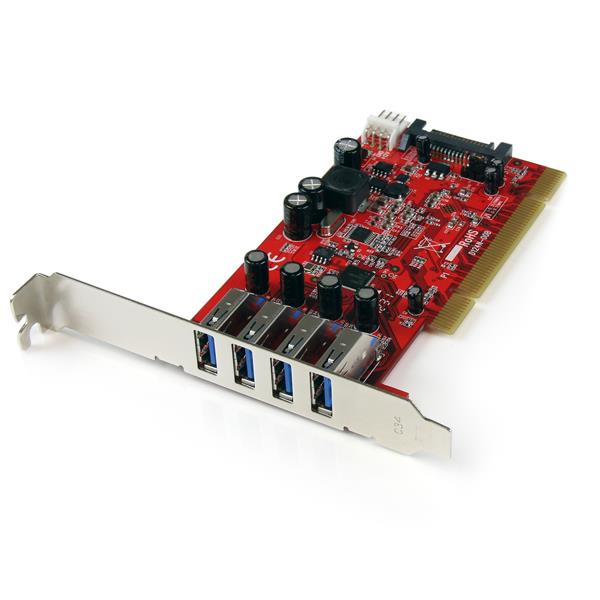

Add 4 SuperSpeed USB 3.0 ports to a computer through a PCI slot
The PCIUSB3S4 4-Port PCI to USB 3.0 Card enables legacy PCI slots to support the SuperSpeed USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.0 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection.
This versatile USB 3.0 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.0 devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.0 devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.0 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Increased data transfer rates (up to 1.3 Gbps PCI bus limit) with USB 3.0 compatible devices
- Suitable for installation in standard-sized and Small Form Factor computers
- Supports bus-powered USB 3.0 devices
The PCIUSB3S4 4-Port PCI to USB 3.0 Card enables legacy PCI slots to support the SuperSpeed USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.0 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection.
This versatile USB 3.0 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.0 devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.0 devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.0 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Increased data transfer rates (up to 1.3 Gbps PCI bus limit) with USB 3.0 compatible devices
- Suitable for installation in standard-sized and Small Form Factor computers
- Supports bus-powered USB 3.0 devices
Key features
- Host interface: PCI
- Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Internal SATA ports quantity: 1
- Internal: Yes
- Product colour: Red
- Certification: CE, FCC, TAA, REACH
- Chipset: Renesas/NEC - µPD720202
- Data transfer rate (max): 5 Gbit/s
- UASP support: Yes
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 15 - 90%
- Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Compliance certificates: RoHS
- Width: 20 mm
- Depth: 133 mm
- Height: 65 mm
- Weight: 72 g
- Mounting brackets included: Yes
- Drivers included: Yes
- Manual: Yes
- Package width: 175 mm
- Package depth: 145 mm
- Package height: 33 mm
- Package weight: 165 g
- Harmonized System (HS) code: 84733020
