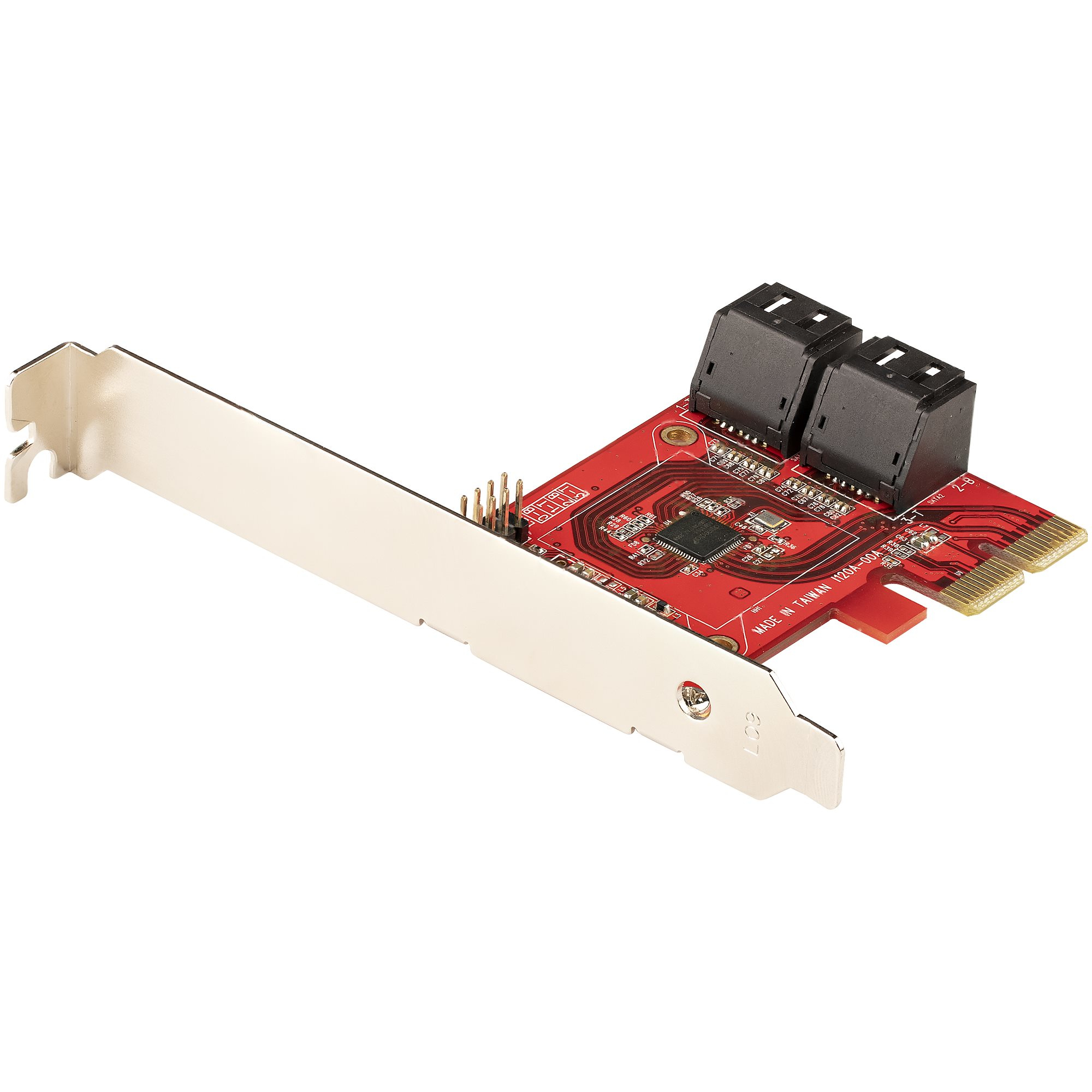

StarTech.com SATA PCIe Card 4 Ports 6Gbps Non-RAID
SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter
- Brand: StarTech.com
- Category: Servers & Storage
- SKU: 5464477
- MPN: 4P6G-PCIE-SATA-CARD
StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion Card -… Save $17.90 off RRP
Available On OrderEstimated arrival 5 Aug 2026
$116.14
Inclusive of GST
1
4 payments of $29.04Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-IM-042290
- MPN:
- 4P6G-PCIE-SATA-CARD
- Brand:
- StarTech.com
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $17.90 off RRP while stocks last.
StarTech.com SATA PCIe Card 4 Ports 6Gbps Non-RAID
SATA III (6Gbps) | PCI Express 3.0 | PCIe x2 Slot | 4x SATA Connectors | 2-Year Warranty
This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.
ASM1164 to Deliver 4-Port SATA 6Gbps Performance
Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.
Hassle-Free Installation
The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
4P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
The StarTech.com Advantage
This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.
ASM1164 to Deliver 4-Port SATA 6Gbps Performance
Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.
Hassle-Free Installation
The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
4P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
The StarTech.com Advantage
Key features
- Host interface: PCIe
- Output interface: SATA
- Expansion card standard: PCIe 3.0
- SATA revision: 3.0
- Internal SATA ports quantity: 4
- Port multiplier: Yes
- Internal: Yes
- Product colour: Red
- Chipset: ASMedia - ASM1164
- Data transfer rate (max): 6 Gbit/s
- S.M.A.R.T. support: Yes
- TRIM support: Yes
- Operating temperature (T-T): 0 - 85 °C
- Storage temperature (T-T): -25 - 85 °C
- Operating relative humidity (H-H): 20 - 80%
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Compliance certificates: CE, RoHS
- Width: 56 mm
- Depth: 70 mm
- Height: 16 mm
- Weight: 75 g
- Mounting brackets included: Yes
- Quick installation guide: Yes
- Package width: 142 mm
- Package depth: 170 mm
- Package height: 30 mm
- Package weight: 115 g
