StarTech.com SFP Module - 10056 Comp - U/S

Extreme Networks 10056 Compatible SFP Module - 1000Base-BX Fiber Optical Transceiver Downstream (10056-ST)

  • Brand: StarTech.com
  • Category: Network Accessories
  • SKU: 4633884
  • MPN: 10056-ST
StarTech.com SFP Module - 10056 Comp - U/S — StarTech.com — Networking > Network Accessories

StarTech.com Extreme Networks 10056 Compatible SFP Module -…

Available On OrderAsk us for ETA
$42.54

Inclusive of GST

1
Afterpay4 payments of $10.64
Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

SKU:
CNZ-IM-021543
MPN:
10056-ST
Brand:
StarTech.com

Ask Our Experts:

Ask a question about this item Request a price match
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
TechWorld Deal

Genuine NZ stock with full manufacturer warranty — no parallel imports. Hardware only, priced sharp, dispatched fast.

StarTech.com SFP Module - 10056 Comp - U/S

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

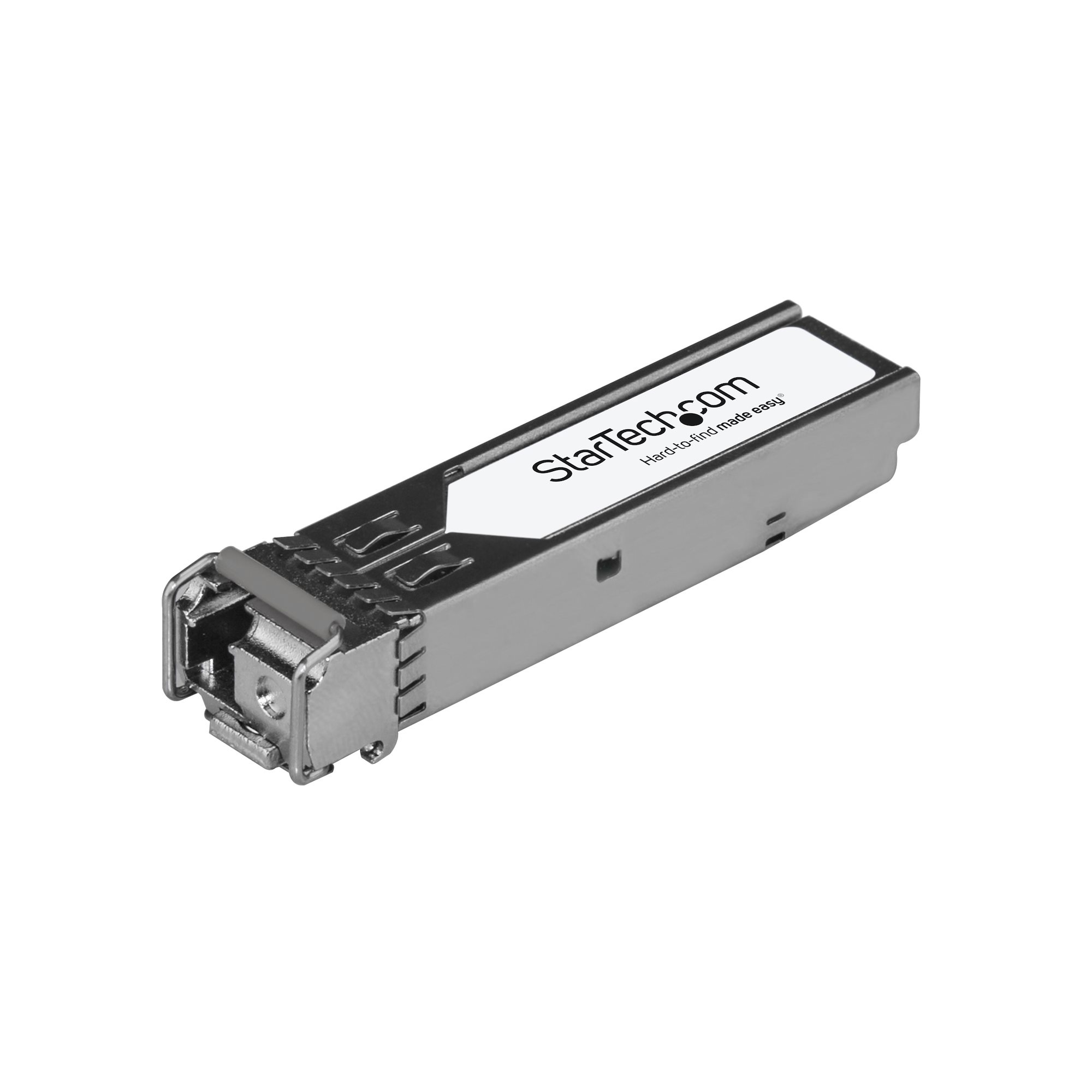

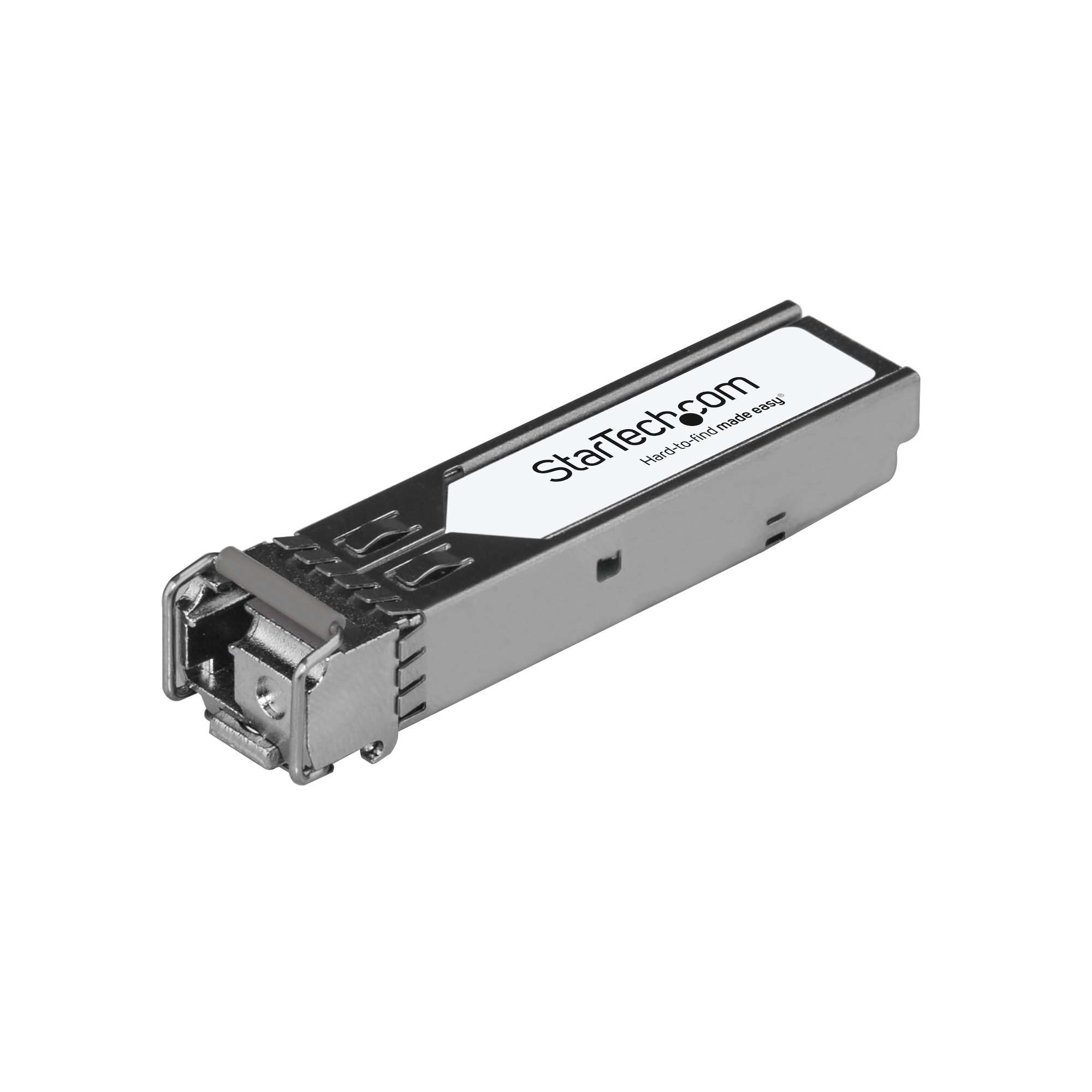

The 10056-ST is an Extreme Networks 10056 compatible downstream fiber SFP transceiver which pairs with StarTech.com's 10057-ST. They are designed, programmed and tested to work with 1000BASE-BX-D compatible Extreme Networks switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1490nmTx/1310nmRx
• Maximum Data Transfer Rate: 1Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption:
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Key features

  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 1250 Mbit/s
  • Interface type: SFP
  • Single-mode fiber (SMF) supported: Yes
  • Multi-mode fiber (MMF) supported: No
  • Fiber optic connector: LC
  • SFP transceiver standard: BX
  • Maximum transfer distance: 10000 m
  • Tx wavelength (max): 1490 nm
  • Rx wavelength (max): 1310 nm
  • Networking standards: IEEE 802.3z
  • Fiber ethernet cabling technology: 1000BASE
  • Duplex system: Full
  • Digital Diagnostics Monitoring (DDM): Yes
  • Product colour: Silver
  • Hot-swap: Yes
  • Mean time between failures (MTBF): 286217327 h
  • Brand compatibility: Extreme Networks
  • Compatible products: 10056
  • Power consumption (typical): 1.3 W
  • Certification: CE, FCC, UR, REACH
  • Width: 56.6 mm
  • Depth: 13.7 mm
  • Height: 12.5 mm
  • Weight: 20 g
  • Quantity per pack: 1 pc(s)
  • Package width: 90 mm
  • Package depth: 115 mm
  • Package height: 31 mm
  • Package weight: 50 g
