STARTECH.COM USB-C POWER TESTER, BI-DIRECTIONAL DIGITAL VOLTAGE/CURRENT, 2 YR
Cables & Connectivity > Cables & Connectivity
- Brand: STARTECH
- Category: Peripherals & Accessories
- SKU: USBC-PWRTESTER
- MPN: USBC-PWRTESTER
StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional…
StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester, Amperage, Voltage, Wattage, 4.5V-50V, USB Type-C, 6.5 A, 4.5V-50V, 0.05 - 6.5 A
Click or hover over image to enlarge
Testing type
Amperage, Voltage, Wattage
DC output voltage test
4.5V-50V
Output current
6.5 A
DC input voltage test
4.5V-50V
Input current
0.05 - 6.5 A
Power connectors supported
USB Type-C
Built-in display
Yes
Backlight display
Yes
Comsys Price
In Stock
7 units available
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $12.65 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM USB-C POWER TESTER, BI-DIRECTIONAL DIGITAL VOLTAGE/CURRENT, 2 YR

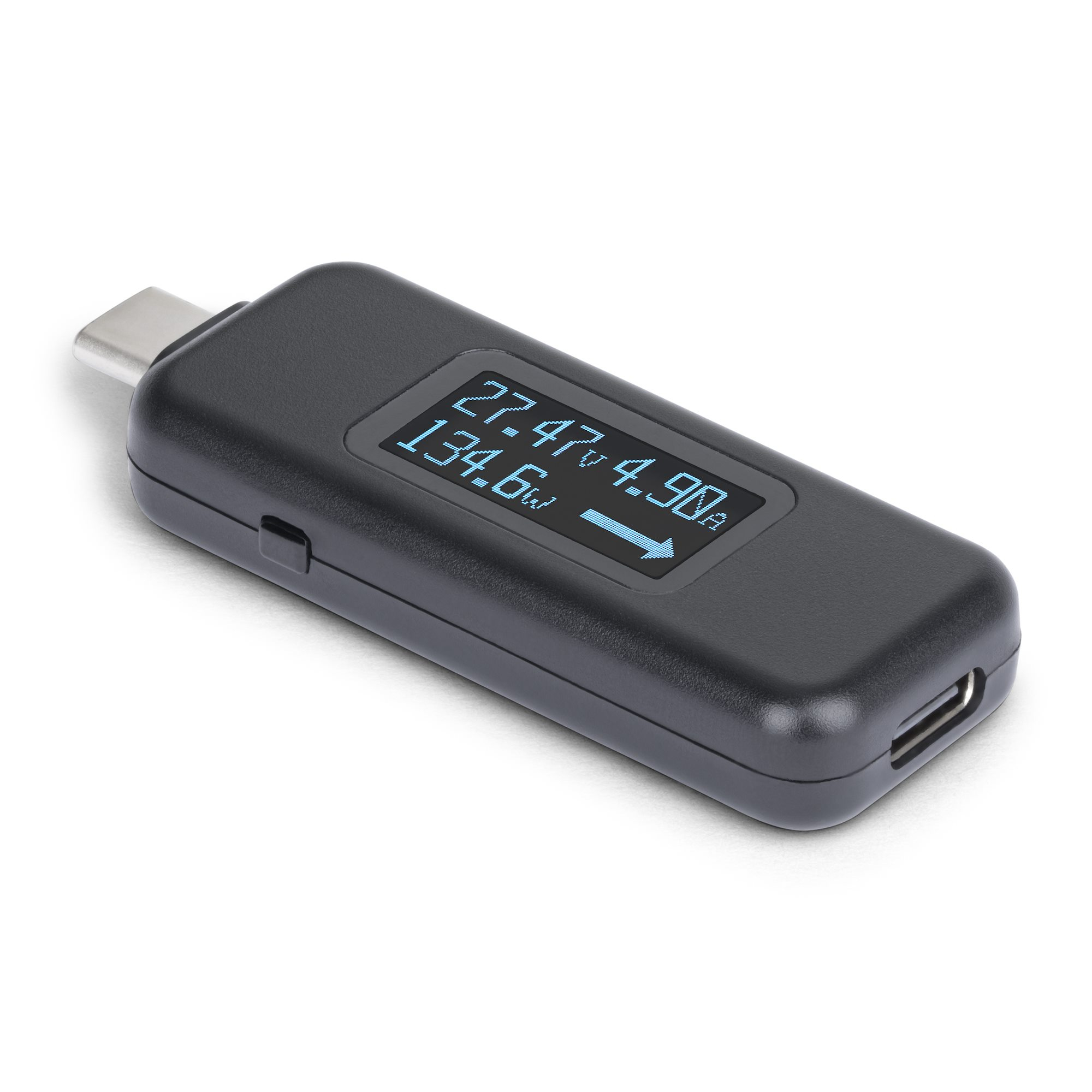

This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.
Compact Form Factor
The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential additional to any IT Pro's toolkit.
Streamline Power Diagnostics
This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.
Versatile USB-C Compatibility
Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.
The StarTech.com Advantage
Key features
- Testing type: Amperage, Voltage, Wattage
- DC output voltage test: 4.5V-50V
- Output current: 6.5 A
- DC input voltage test: 4.5V-50V
- Input current: 0.05 - 6.5 A
- Power connectors supported: USB Type-C
- Built-in display: Yes
- Backlight display: Yes
- Backlight colour: Blue
- Host interface: USB 3.2 USB Type C
- Output interface: USB 3.2 USB Type C
- USB version: 3.2 Gen 2 (3.1 Gen 2)
- Maximum charging test: 240 W
- Product colour: Black
- Housing material: Polycarbonate (PC)
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 57 mm
- Depth: 23 mm
- Height: 10 mm
- Weight: 12 g
- Package width: 80 mm
- Package depth: 84 mm
- Package height: 15 mm
- Package weight: 28 g
- Compliance certificates: RoHS
- Master (outer) case width: 430 mm
- Master (outer) case length: 180 mm
- Master (outer) case height: 270 mm
+ 1 more — see the Specifications tab.
