StarTech.com USB Dual VGA over Cat5 KVM Extender
USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m - VGA KVM Extender with Resolutions up to 1920x1200
- Brand: StarTech.com
- Category: Switches
- SKU: 2086140
- MPN: SV565DUTPU
StarTech.com USB Dual VGA over Cat5 KVM Console Extender - 650 ft /… Save $266.80 off RRP
Available to Order
$956.79
Inclusive of GST
1
Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Key Details:
- Model:
- SV565DUTPU
- Part #:
- 2086140
- Brand:
- StarTech.com
We accept





On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $266.80 off RRP while stocks last.

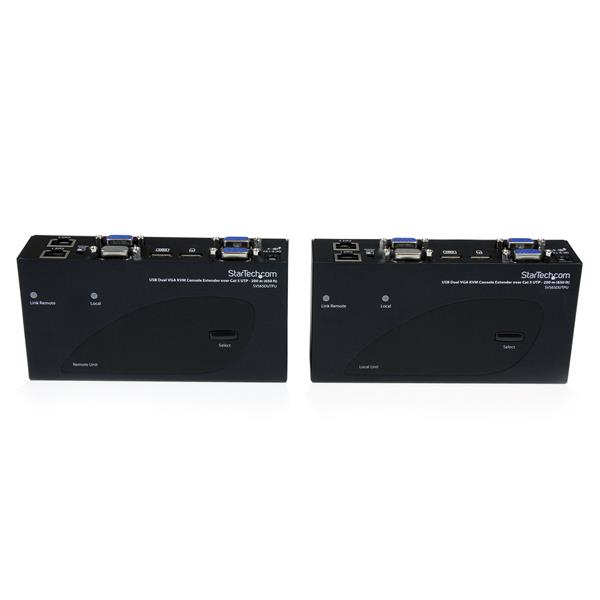

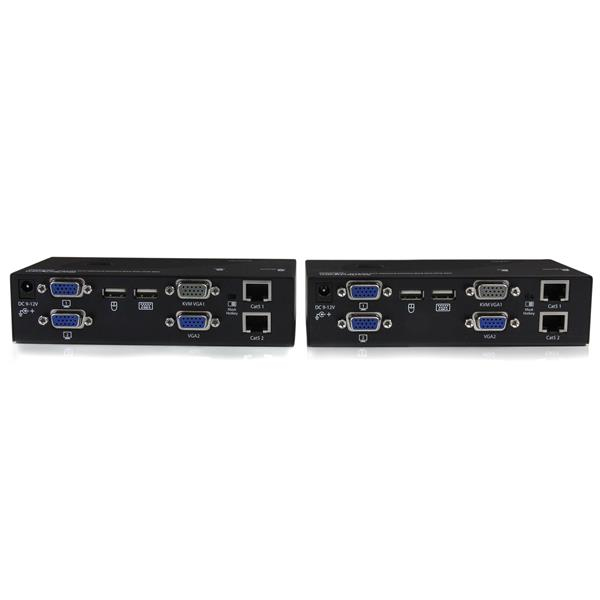

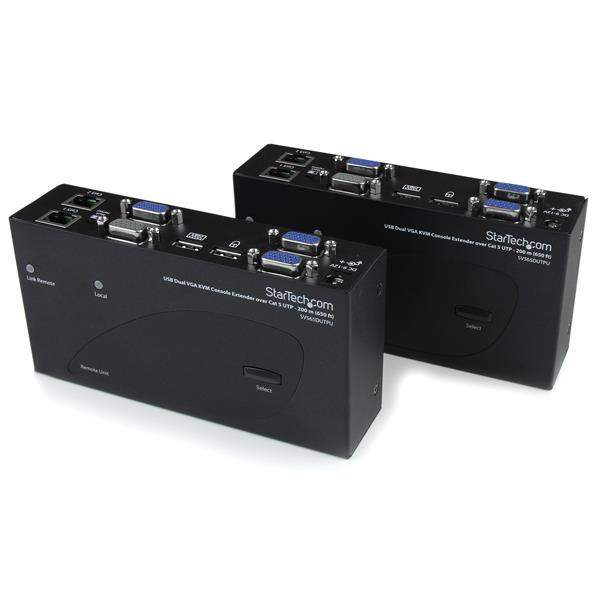

StarTech.com USB Dual VGA over Cat5 KVM Extender
Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locally
The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.
The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Low cost way to convert existing dual VGA KVM units, or individual Servers into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations
The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.
The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Low cost way to convert existing dual VGA KVM units, or individual Servers into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations
Key features
- Maximum transfer distance: 200 m
- Product colour: Black
- Compliance certificates: RoHS
- VGA (D-Sub) ports quantity: 4
- USB 2.0 ports quantity: 12
- RJ-45 ports quantity: 2
- DC-in jack: Yes
- Width: 80 mm
- Depth: 155 mm
- Height: 40 mm
- Weight: 535 g
- Package width: 239 mm
- Package depth: 367 mm
- Package height: 75 mm
- Package weight: 2.25 kg
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Cables included: AC, KVM
- Manual: Yes
- Harmonized System (HS) code: 84733020
