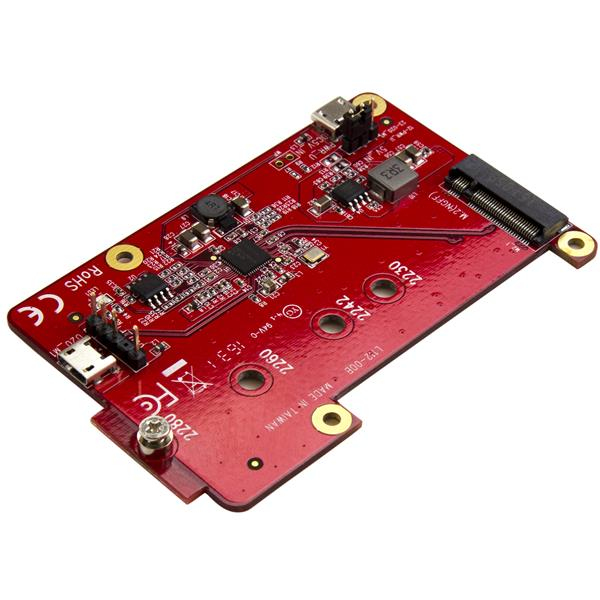

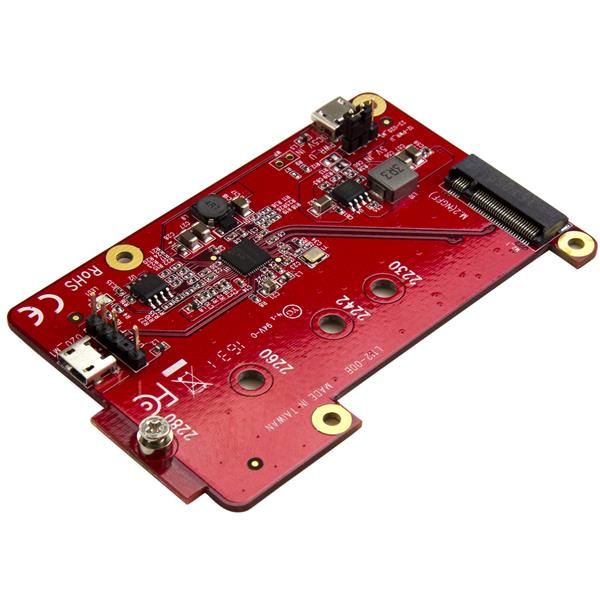

STARTECH.COM USB TO M.2 SATA CONVERTER FOR RASPBERRY PI DEVELOPMENT BOARDS 2 YR
Peripherals & Accessories > Memory Cards
- Brand: STARTECH
- Category: Storage Media
- SKU: PIB2M21
- MPN: PIB2M21
StarTech.com USB to M.2 SATA Converter for Raspberry Pi and…
StarTech.com USB to M.2 SATA Converter for Raspberry Pi and Development Boards, Micro-USB, M.2, Red, 5839751 h, CE, FCC, Renesas - µPD720231A
Click or hover over image to enlarge
USB powered
Yes
Internal
Yes
Product colour
Red
Mean time between failures (MTBF)
5839751 h
Certification
CE, FCC
Chipset
Renesas - µPD720231A
Data transfer rate (max)
6 Gbit/s
Harmonized System (HS) code
84733020
Comsys Price
In Stock
30 units available
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $15.81 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM USB TO M.2 SATA CONVERTER FOR RASPBERRY PI DEVELOPMENT BOARDS 2 YR
Add storage capacity to your development board
This convenient USB 2.0 to M.2 SATA converter lets you overcome data storage limitations of your development board by enabling you to connect an M.2 SATA drive through your board’s USB-A port.
A convenient integrated solution
The USB to M.2 SATA converter integrates seamlessly with your existing development board. It’s the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions. It enables you to utilize your M.2 SATA drives with your dev board, and take advantage of the small form factor of M.2 SATA which makes it ideal for applications with space limitations.
Easy to install
Compatible with M.2 SATA drives (2230, 2242, 2260, and 2280), the converter is easy to install and doesn’t require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.
StarTech.com provides industry-leading support to get you up and running quickly. The PIB2M21 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note:
This converter works with M.2 SATA SSDs only. To see which type of M.2 drive you have, simply look at the number of notches (or keys) on the drive end that connects with the M.2 socket. SATA-based M.2 drives have two notches (an M key and a B key), while PCIe-based M.2 drives have just one notch (an M key).
Raspberry Pi is a trademark of the Raspberry Pi Foundation
Key features
- Host interface: Micro-USB
- Output interface: M.2
- Internal: Yes
- Product colour: Red
- Mean time between failures (MTBF): 5839751 h
- Certification: CE, FCC
- Chipset: Renesas - µPD720231A
- Data transfer rate (max): 6 Gbit/s
- USB powered: Yes
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 15 - 90%
- Compliance certificates: RoHS
- Width: 56 mm
- Depth: 88 mm
- Height: 11 mm
- Weight: 21.8 g
- Cables included: USB
- Quick installation guide: Yes
- Package width: 142 mm
- Package depth: 170 mm
- Package height: 30 mm
- Package weight: 110 g
- Package volume: 100 cm³
- Harmonized System (HS) code: 84733020
Inc GST
$63.24
