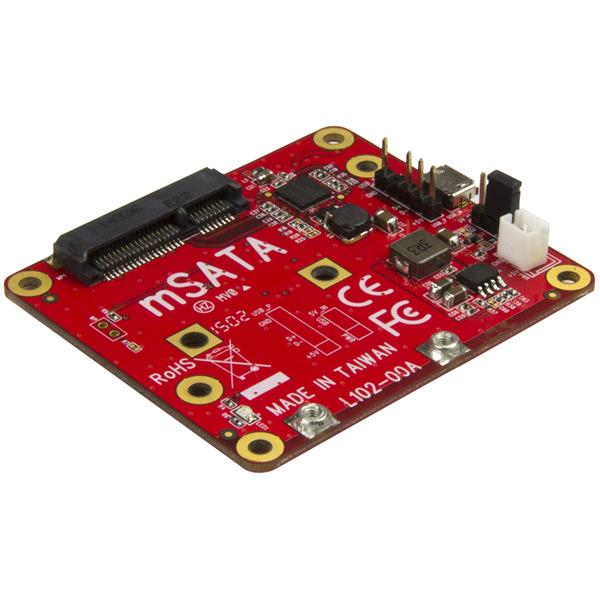

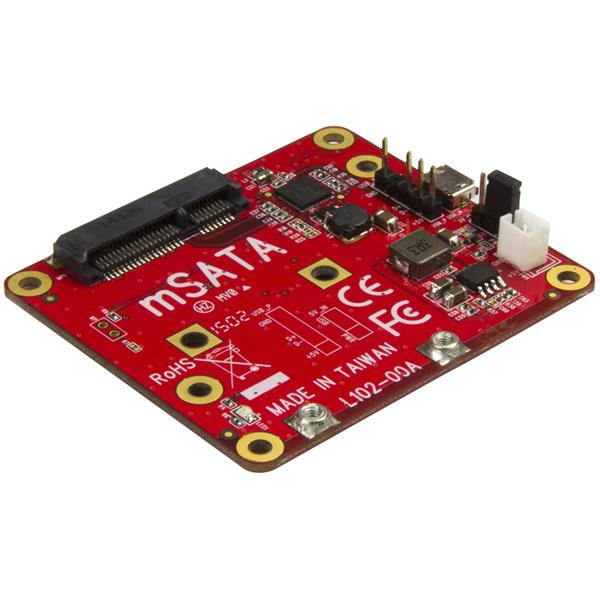

StarTech.com USB to mSATA Converter for Raspberry Pi
USB TO MSATA CONVERTER FOR RASPBERRY PI AND DEVELOPMENT BOARDS - USB TO MINI SATA ADAPTER FOR RASPBERRY PI - SUPPORTS SATA I II III MSATA SSD DRIVES - USB 2.0 - OS INDEPENDENT
- Brand: StarTech.com
- Category: Adapters
- SKU: 3572149
- MPN: PIB2MS1
StarTech.com USB to mSATA Converter for Raspberry Pi and Development…
Contact us for pricing
Sales will confirm current pricing and availability
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-IM-022034
- MPN:
- PIB2MS1
- Brand:
- StarTech.com
Genuine NZ stock with full manufacturer warranty — no parallel imports. Hardware only, priced sharp, dispatched fast.
StarTech.com USB to mSATA Converter for Raspberry Pi
Add storage capacity to your development board
This convenient USB 2.0 mSATA converter lets you overcome data storage limitations by enabling you to connect an mSATA drive through your board’s USB-A port.
A convenient integrated solution
The USB to mSATA converter integrates seamlessly with your existing development board. It’s the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions. It allows you to utilize your mSATA drives with your development board, and take advantage of the small form factor of mini-SATA, ideal for applications with space limitations.
Easy to install
Compatible with SATA I, SATA II and SATA III drives, the converter is easy to install and doesn’t require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.
StarTech.com provides industry-leading support to get you up and running quickly. The PIB2MS1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key features
- Host interface: Micro-USB
- Output interface: mSATA
- SATA revision: 3.0
- Internal: Yes
- Product colour: Red
- Mean time between failures (MTBF): 5077966 h
- Country of origin: Taiwan
- Certification: CE, FCC
- Chipset: Renesas - µPD720231A
- Data transfer rate (max): 6 Gbit/s
- USB powered: Yes
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 15 - 90%
- Compliance certificates: RoHS
- Width: 55 mm
- Depth: 65 mm
- Height: 11 mm
- Weight: 18.2 g
- Cables included: USB
- Quick installation guide: Yes
- Package width: 144 mm
- Package depth: 175 mm
- Package height: 32 mm
- Package weight: 100 g
- Harmonized System (HS) code: 84733020
- Compatibility: Raspberry Pi
