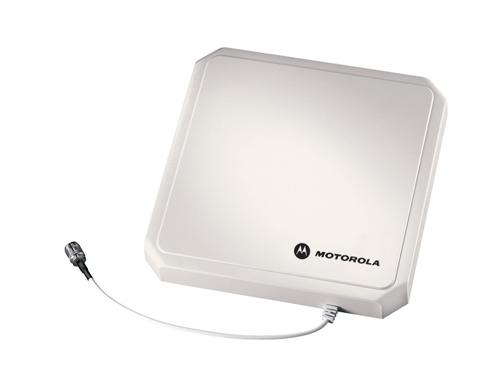

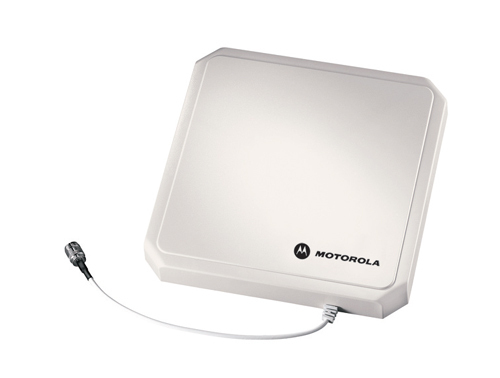

ZEBRA AN480 ANTENNA: 1 PORT WIDE BAND-RIGHT
AN480 ANTENNA: 1 PORT WIDE BAND-RIGHT PIG-TAIL ROHS. RIGHT HAND CIRCULAR POLARIZATION.
- Brand: ZEBRA
- Category: Printers & Office Equipment
- SKU: 1202845
- MPN: AN480-CR66100WR
Motorola AN480 RFID Antenna network antenna Directional antenna…
Motorola AN480 RFID Antenna, 6 dBi, 50 Ω, 65°, 65°, Directional antenna, N-type
Click or hover over image to enlarge
Antenna type
Directional antenna
Antenna connector type
N-type
Voltage Standing Wave Ratio (VSWR)
1.22:1
Product colour
White
Power handling
2 W
Purpose
Outdoor
Impedance
50 Ω
Horizontal beam width
65°
Comsys Price
Available to Order
Ships in 1–5 business days
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $110.69 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ZEBRA AN480 ANTENNA: 1 PORT WIDE BAND-RIGHT
The AN480 antenna offers the environmental sealing required for indoor and outdoor use. Its extremely low axial ratio delivers a more uniform gain for superior performance.
Key features
- Impedance: 50 Ω
- Horizontal beam width: 65°
- Vertical beam width: 65°
- Antenna gain level (max): 6 dBi
- Antenna type: Directional antenna
- Antenna connector type: N-type
- Voltage Standing Wave Ratio (VSWR): 1.22:1
- Product colour: White
- Power handling: 2 W
- Purpose: Outdoor
- Certification: RoHS, UL
- Width: 259.1 mm
- Depth: 259.1 mm
- Height: 50.3 mm
- Weight: 1.13 kg
- Harmonized System (HS) code: 85177100
- Frequency range: 865 - 868 MHz
Inc GST
$442.74
