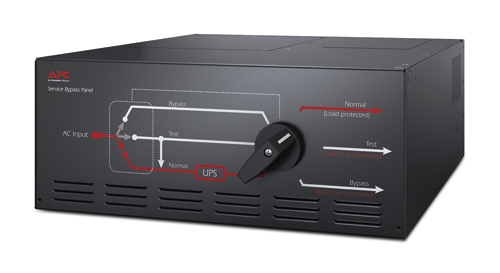

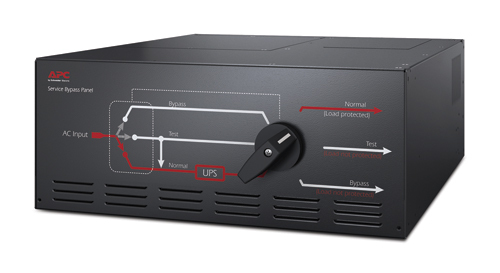

APC Service Bypass Panel 200/208/230/240
APC Service Bypass Panel 200/208/230/240V MBB 125A HW Input/Output
- Brand: APC
- Category: UPS Systems
- SKU: 1703320
- MPN: SBP20KP
APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output Save $781.01 off RRP
Available to Order
$5,196.84
Inclusive of GST
1
Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Key Details:
- Model:
- SBP20KP
- Part #:
- 1703320
- Brand:
- APC
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $781.01 off RRP while stocks last.
APC Service Bypass Panel 200/208/230/240
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical loa.
- APC Smart-UPS Accessories , Input: 200V, 208V, 220V, 230V, 240V, 380V 3PH, 400V 3PH
- Input Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Output: 200V, 208V, 220V, 230V, 240V
- Output Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3-wire (H N + G)
(3) Breaker maintenance bypass panel to isolate the UPS from the critical loa.
- APC Smart-UPS Accessories , Input: 200V, 208V, 220V, 230V, 240V, 380V 3PH, 400V 3PH
- Input Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Output: 200V, 208V, 220V, 230V, 240V
- Output Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3-wire (H N + G)
Key features
- Output power capacity: 20 kVA
- Input operation voltage (min): 200 V
- Input operation voltage (max): 240 V
- Input frequency: 50/60 Hz
- Maximum current: 125 A
- AC outlet types: Hard Wire 5-wire (3P + N + E)
- Form factor: Tower
- Product colour: Black
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 4500 m
- Non-operating altitude: 0 - 15000 m
- Compliance certificates: RoHS
- Certification: CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
- Width: 432 mm
- Depth: 554 mm
- Height: 178 mm
- Weight: 19.3 kg
- Package weight: 31.4 kg
- Harmonized System (HS) code: 85078000
- Operating temperature (T-T): -4 - 122 °F
- Overload protection: Yes
- Package dimensions (WxDxH): 610 x 845 x 305 mm
