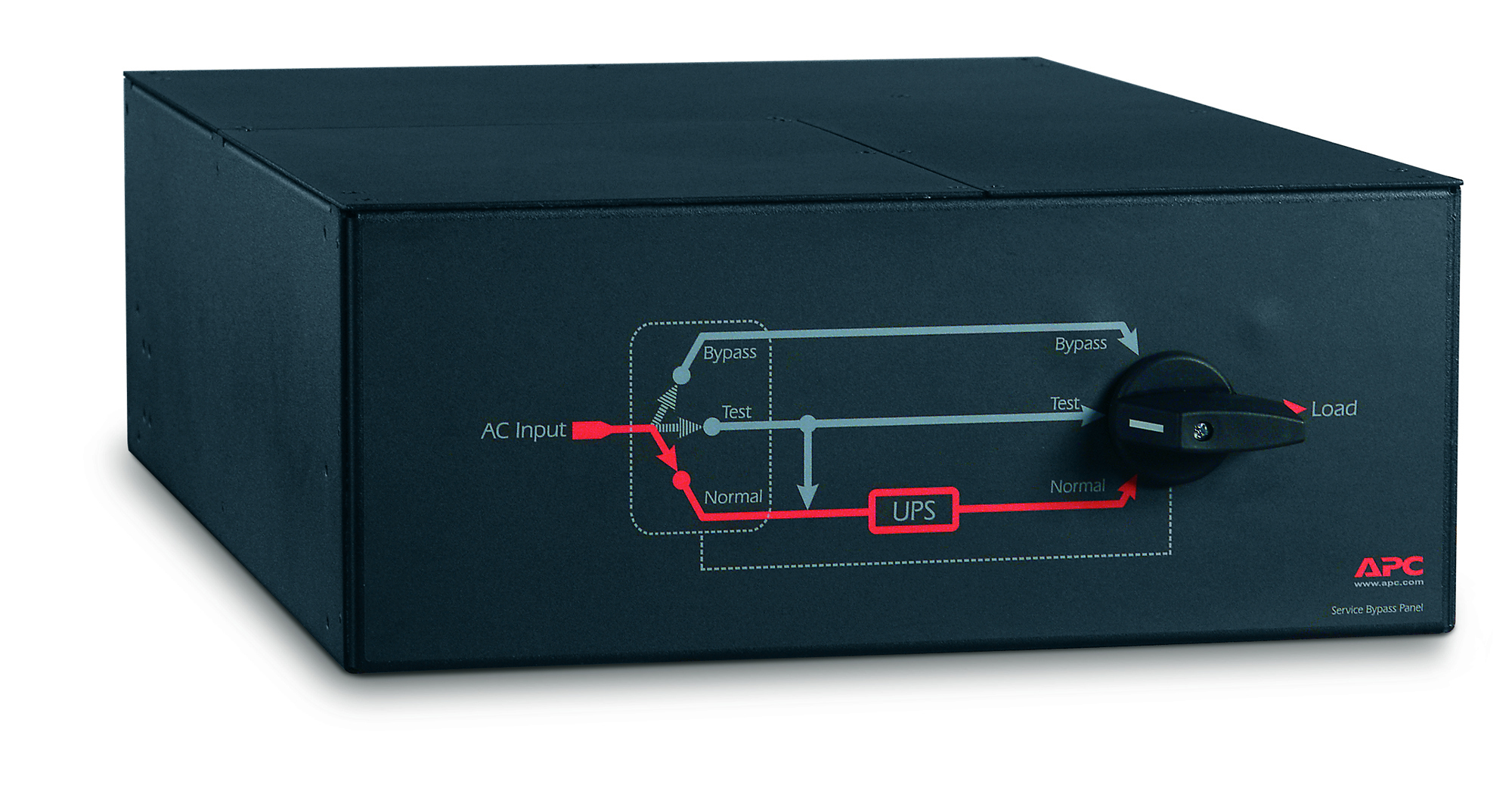

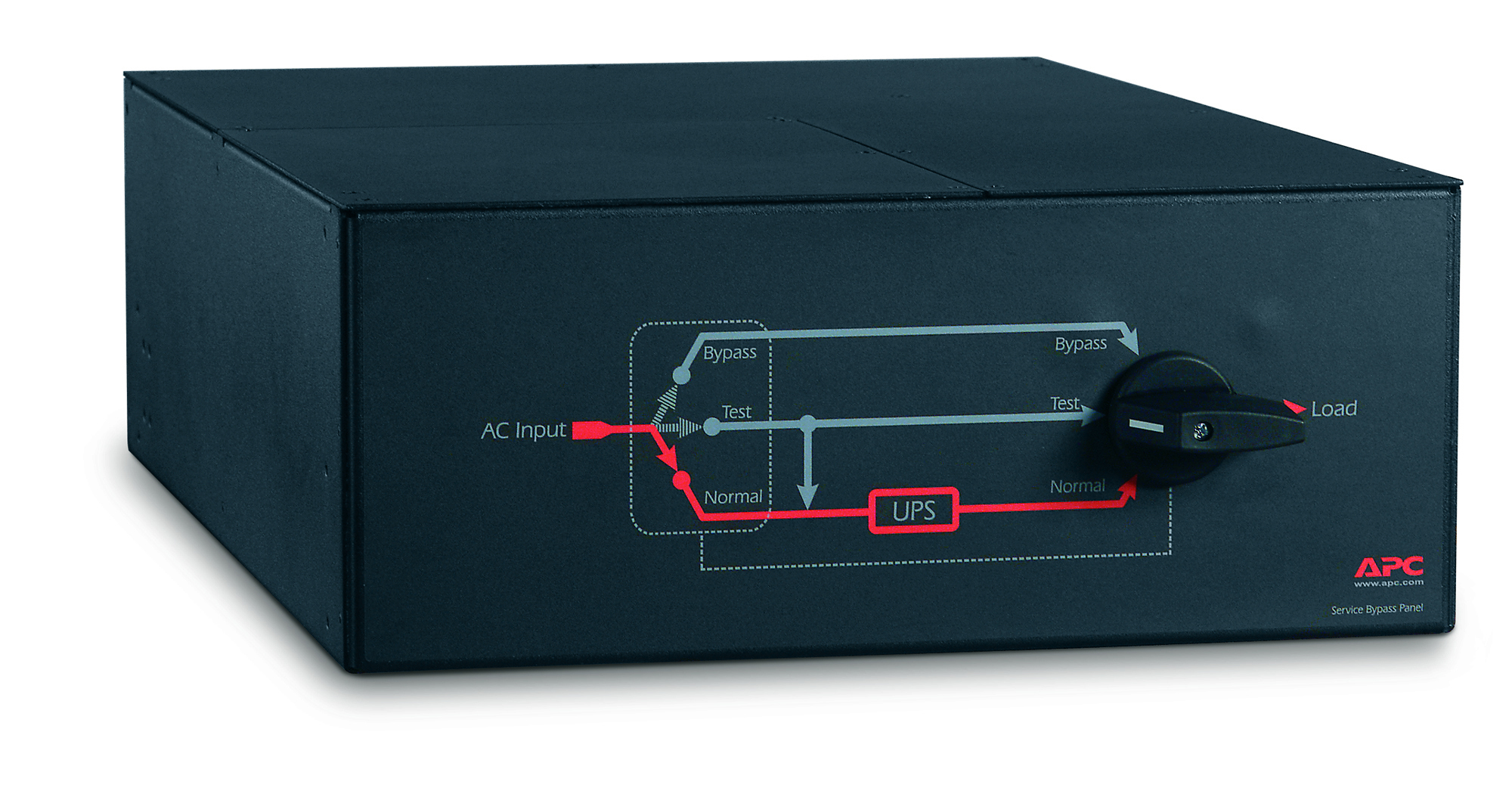

APC Service Bypass Panel- 230V. 100A. MB
APC Service Bypass Panel- 230V. 100A. MBB. Hardwire input. (3) 30A Hardwire Output
- Brand: APC
- Category: UPS Systems
- SKU: 1060502
- MPN: SBP16KRMI4U
APC SBP16KRMI4U UPS accessory Save $668.01 off RRP
Available to Order
$4,378.04
Inclusive of GST
1
Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Key Details:
- Model:
- SBP16KRMI4U
- Part #:
- 1060502
- Brand:
- APC
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $668.01 off RRP while stocks last.
APC Service Bypass Panel- 230V. 100A. MB
- 19 inch Rack-Mountable
- Quick Transfer Rate
- Wrap Around System Bypass
- Quick Transfer Rate
- Wrap Around System Bypass
Key features
- Product type: Bypass switch
- Mounting type: Rack-mount
- Product colour: Black
- Rack capacity: 4U
- Compatibility: CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
- Load capacity: 20000 VA
- Input voltage: 230 V
- Input frequency: 50/60 Hz
- Number of phases: 1
- Maximum total current draw per phase: 100 A
- Compliance certificates: RoHS
- Certification: CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
- Operating temperature (T-T): -20 - 45 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 4500 m
- Non-operating altitude: 0 - 15000 m
- Width: 432 mm
- Depth: 673 mm
- Height: 178 mm
- Weight: 21.8 kg
- Package width: 610 mm
- Package depth: 991 mm
- Package height: 305 mm
- Package weight: 31.8 kg
- Harmonized System (HS) code: 85079080
